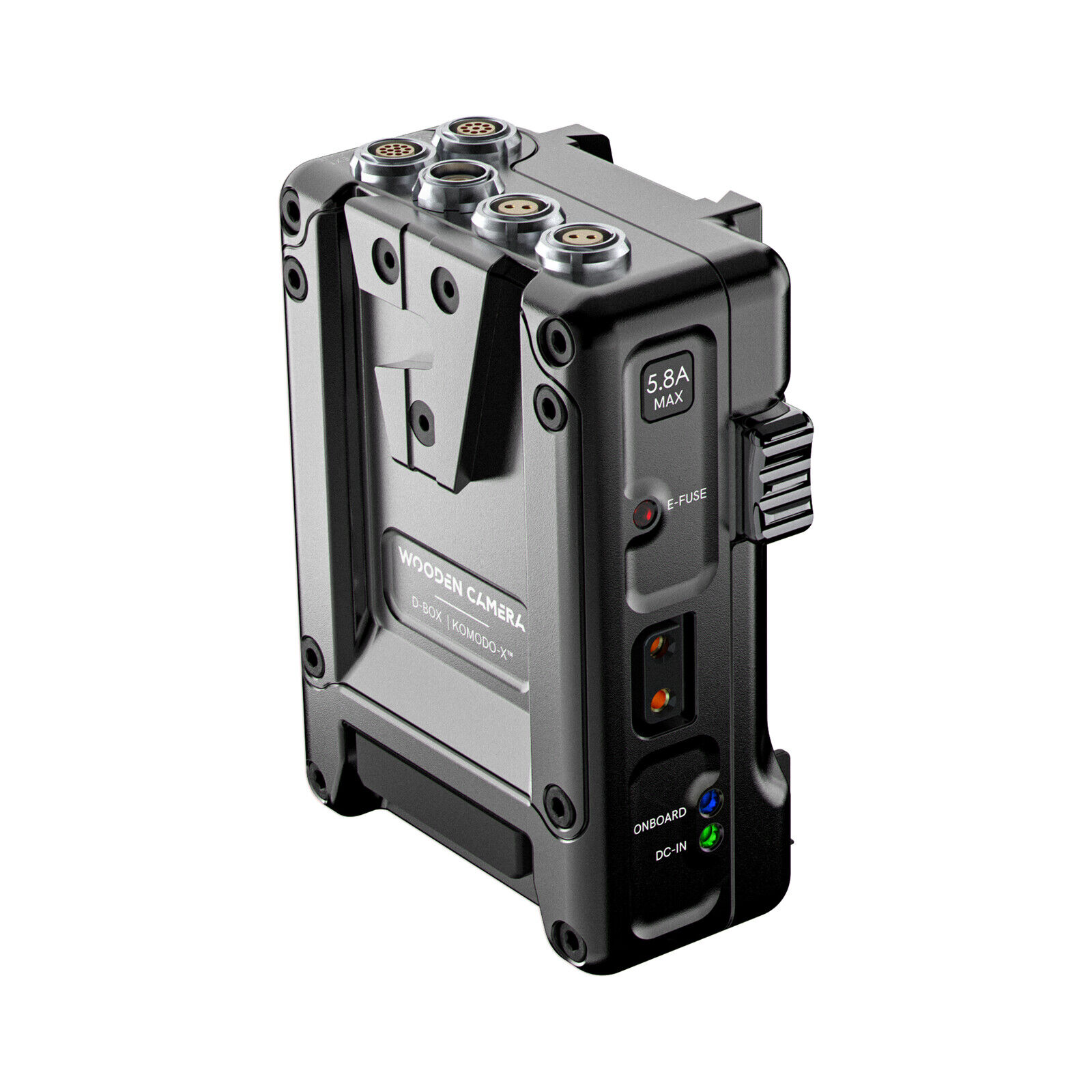

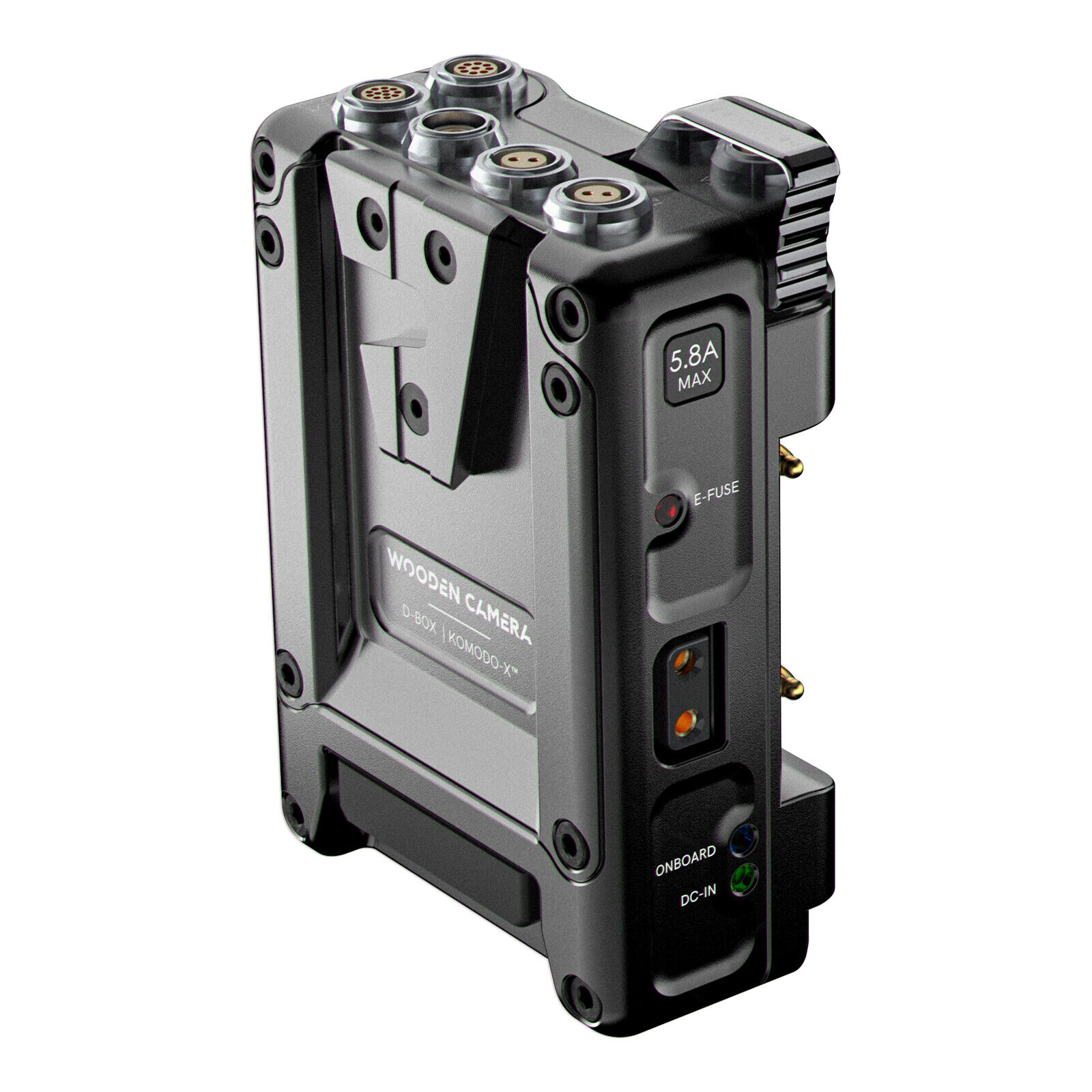

Wooden Camera A00457 – D-Box V-Mount for RED KOMODO-X
GTIN: 0655466641061
V-Mount power module for RED KOMODO-X with battery hot swap, 12 V 2-pin, D-Tap and 24 V 3-pin outputs and run/stop via the EXT port.
Wooden Camera A00457 – D-Box V-Mount for RED KOMODO-X

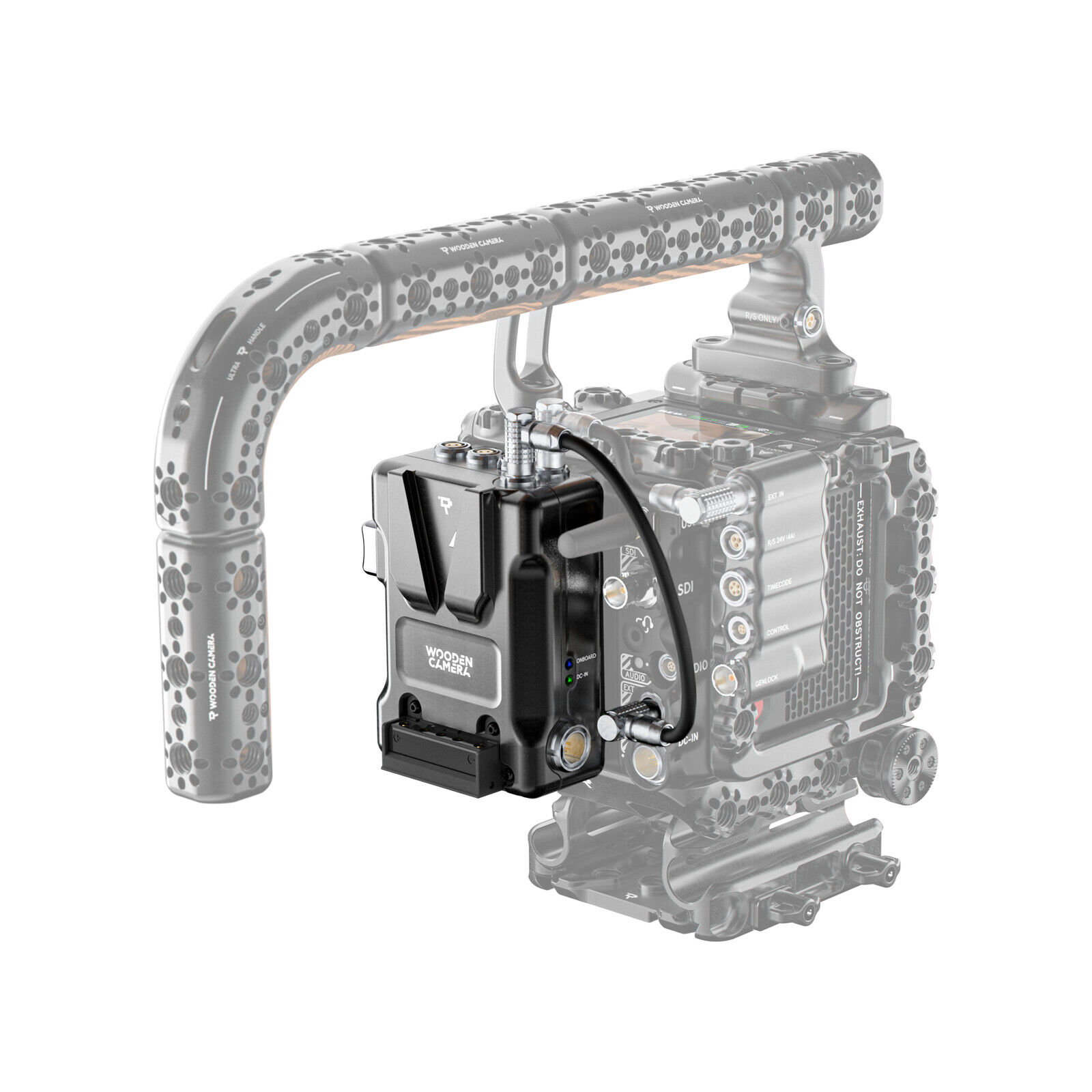

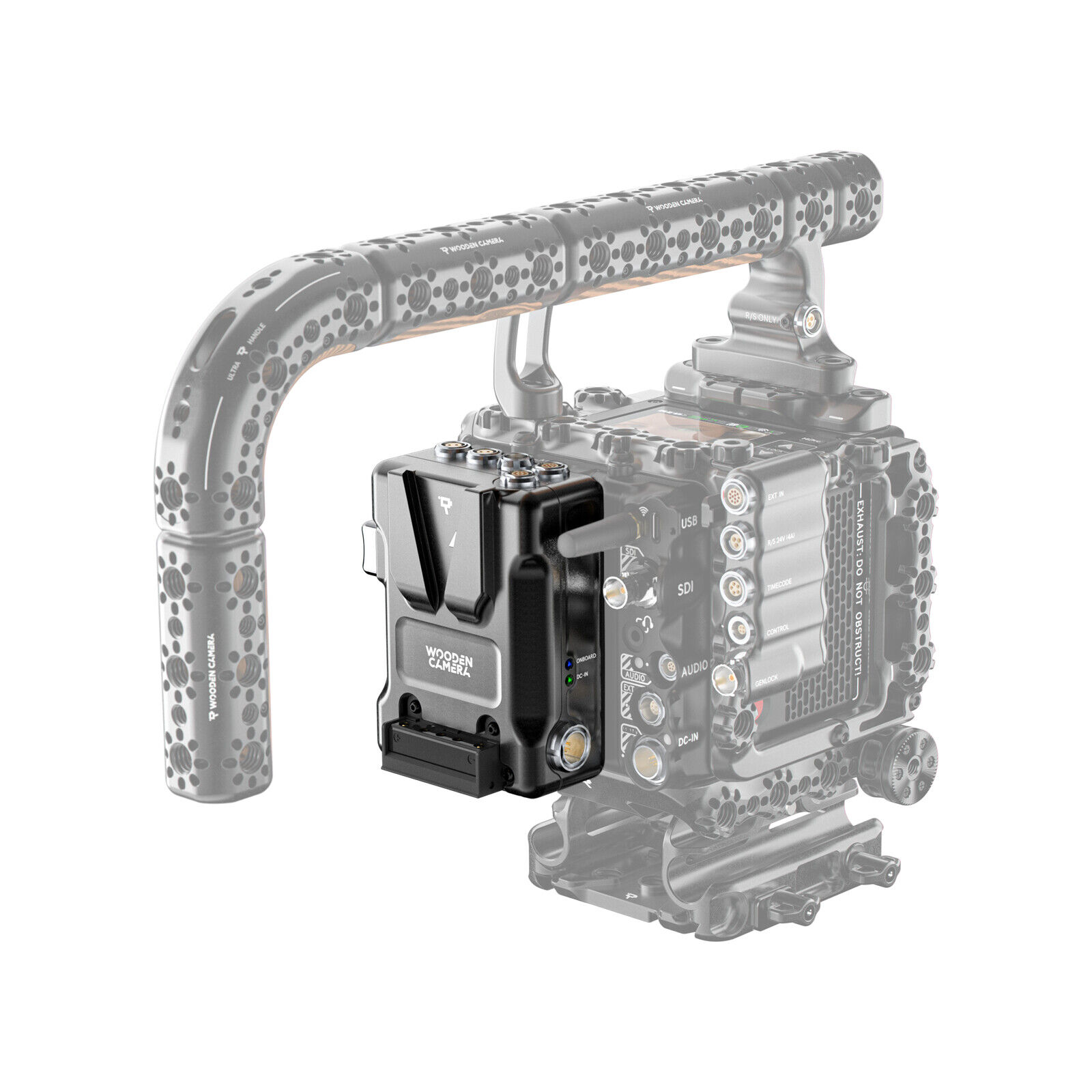

The D-Box expands the power options of the RED KOMODO-X: it adds accessory outputs and allows battery hot swap when both the DC input and an on-board battery are connected.
Features
- Battery hot swap with power connected to the DC input

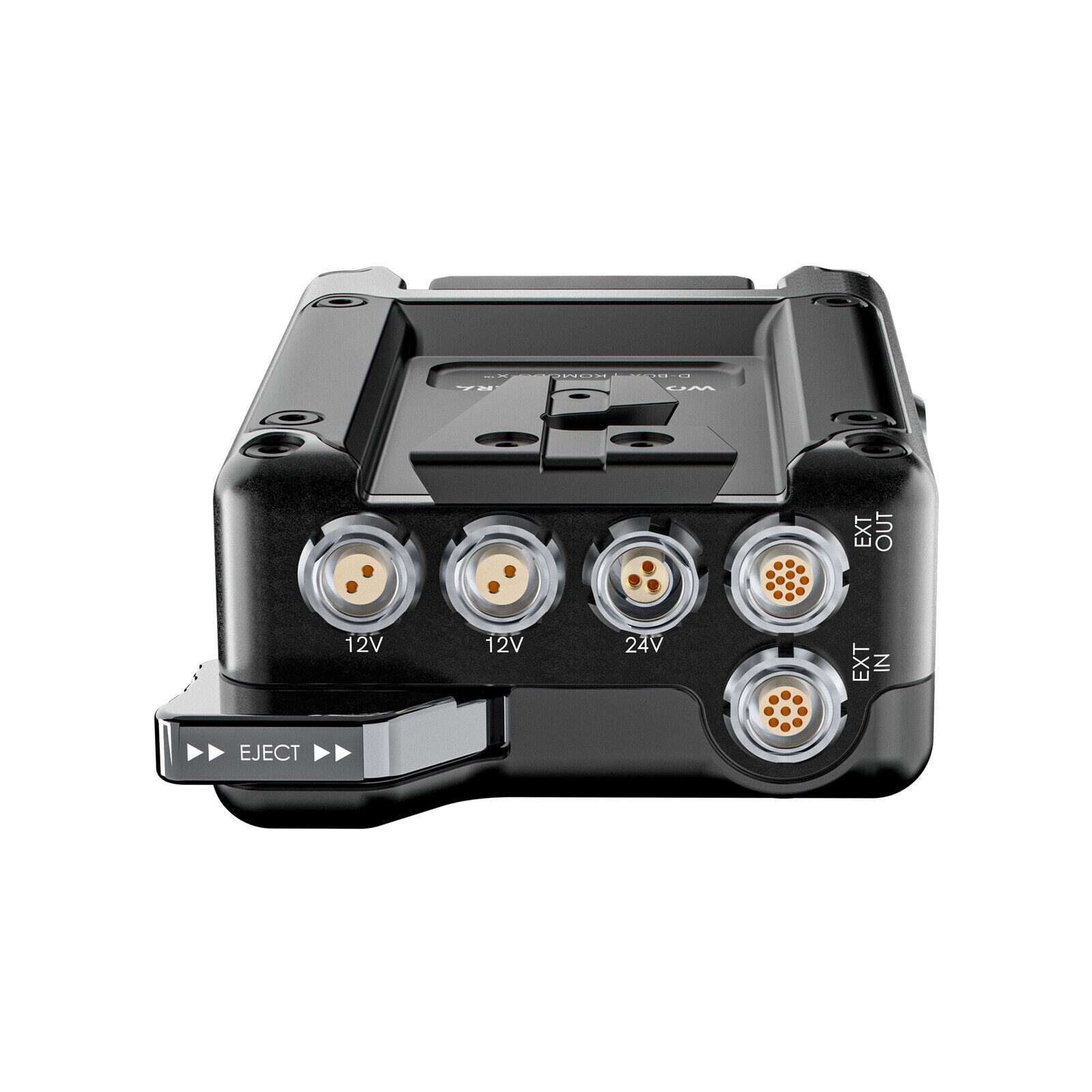

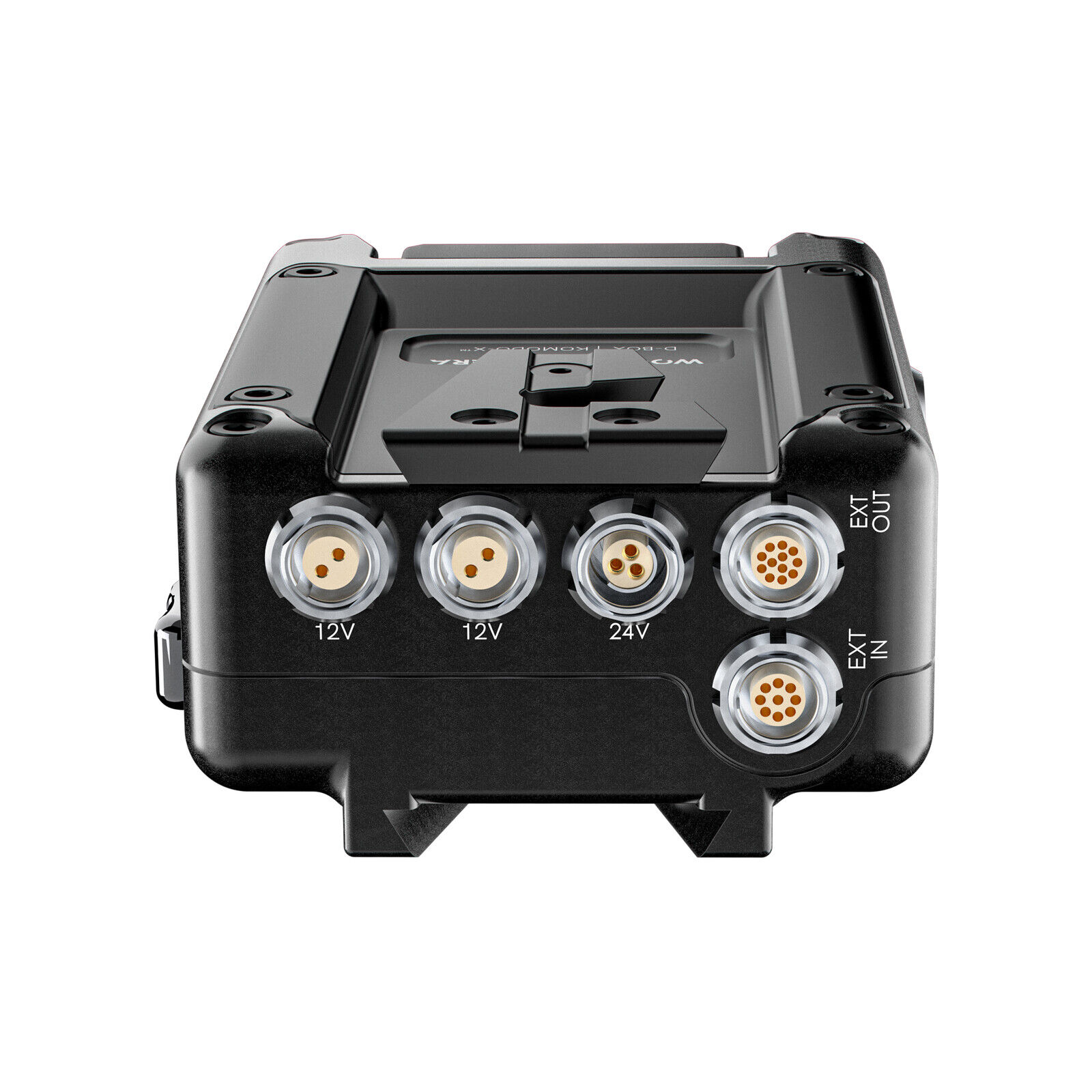

- Additional outputs: 12 V 2-pin, D-Tap and 24 V 3-pin
- Connected to the camera's EXT port, it enables run/stop on both the D-Box and the B-Box
- DC input on the assistant side for block batteries or other sources
- EXT out for connecting a B-Box to the system
Package contents
- EXT cable (9-pin 0B RA male to 9-pin 0B RA male, 127 mm)
Note: B-Box sold separately.
Specifications
| Compatibility | RED KOMODO-X |
|---|---|
| Battery mount | V-Mount |
| Weight | 273.5 g |
| Dimensions | 48 x 103 x 100 mm |
| Product Condition | New |
|---|---|
| Manufacturer | Wooden Camera |
| manufacturer code | A00457 |
| Ean | 0655466641061 |
