Wooden Camera A00544 – D-Box V-Mount and B-Box System for RED Komodo-X
GTIN: 0655466707385
Power system for RED Komodo-X with V-Mount D-Box and B-Box: hot swap, 12 V and 24 V outputs, D-Tap and run/stop.
Wooden Camera A00544 – D-Box V-Mount and B-Box System for RED Komodo-X

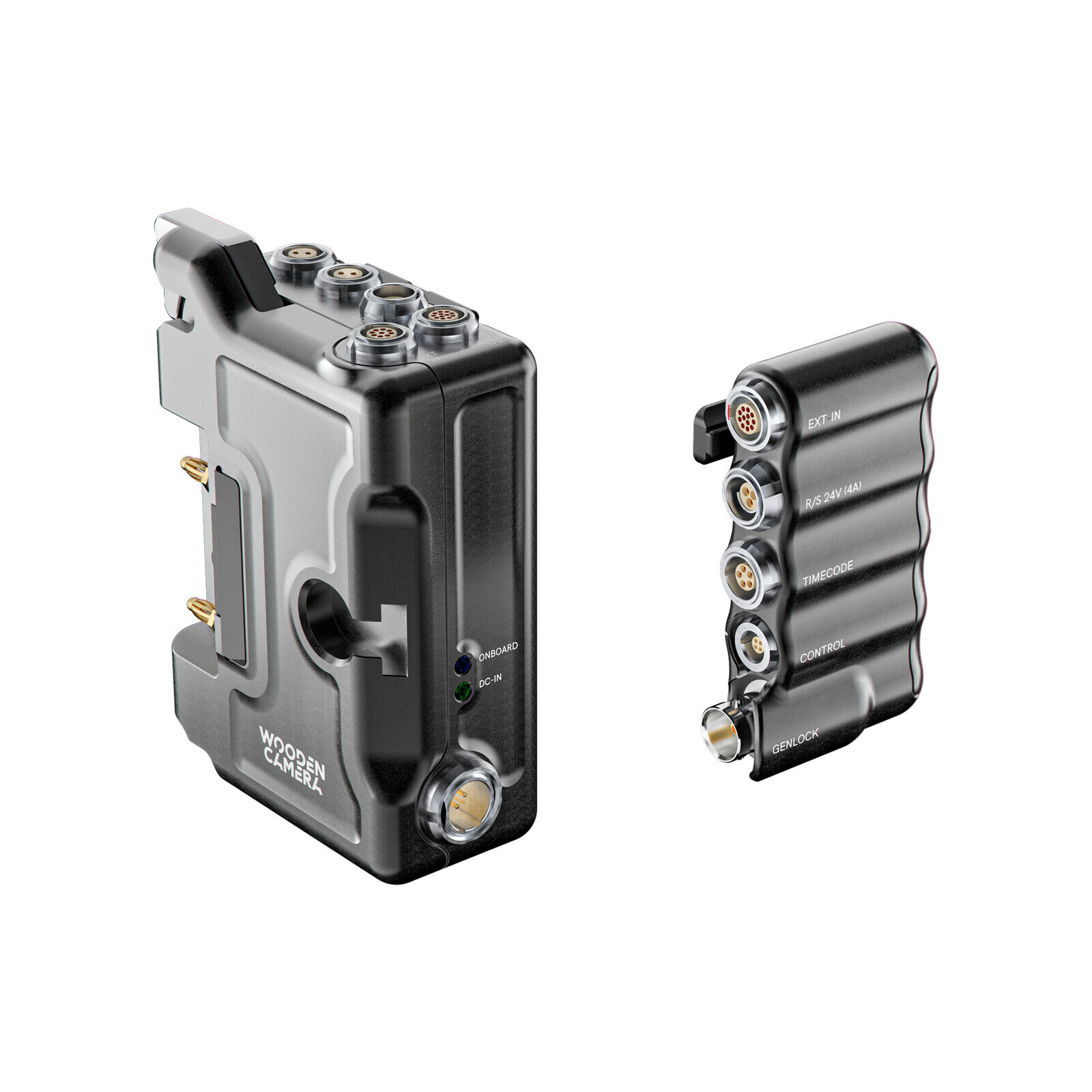

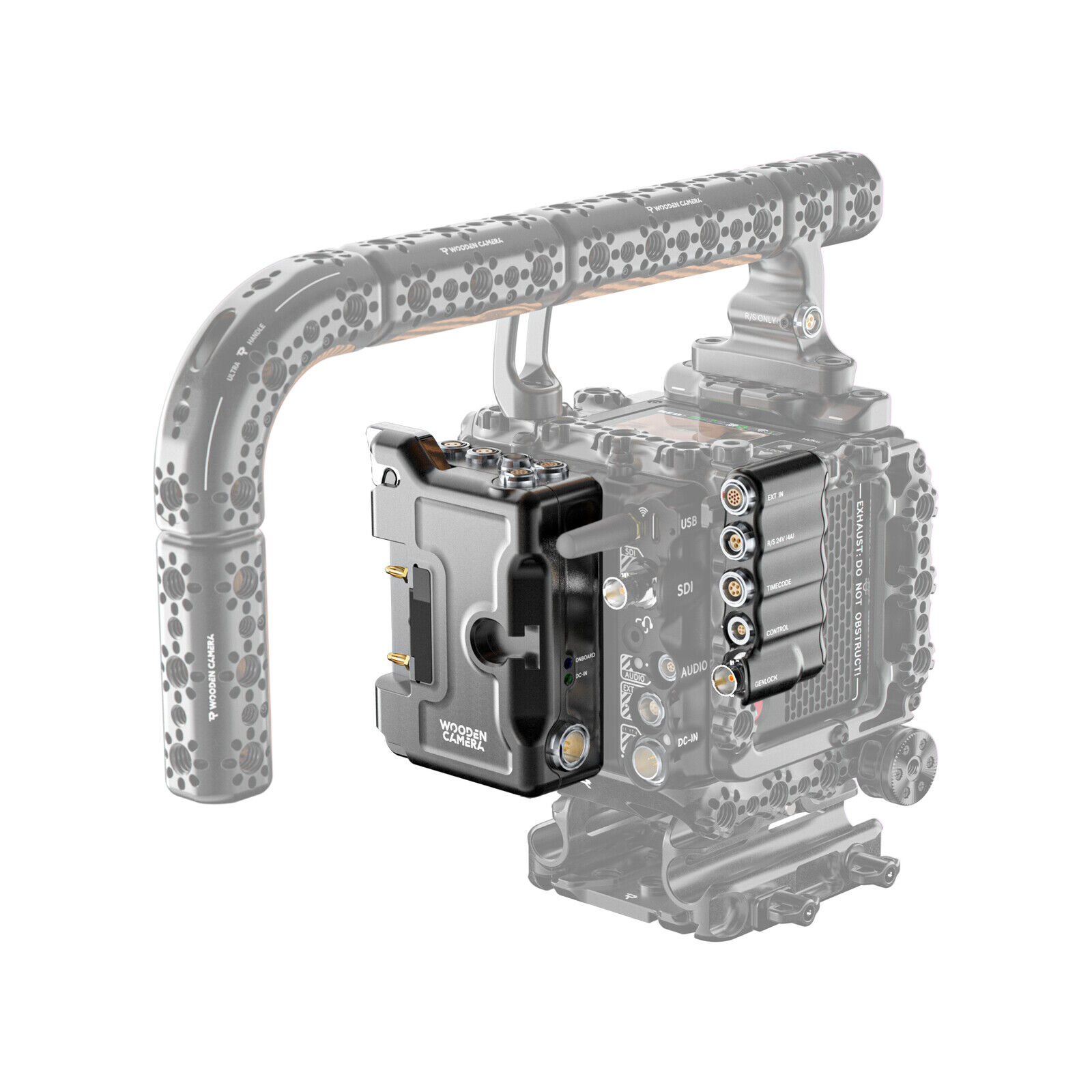

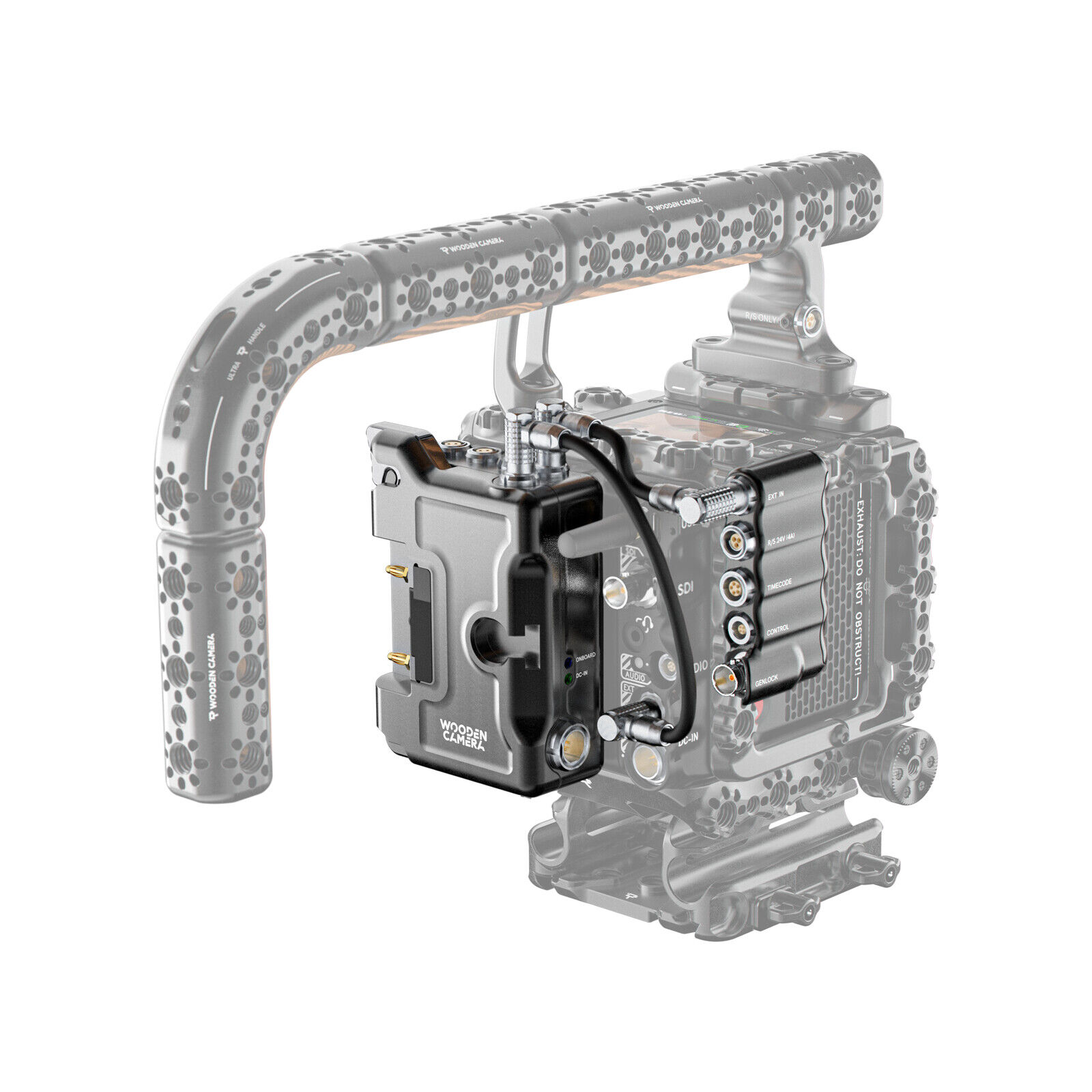

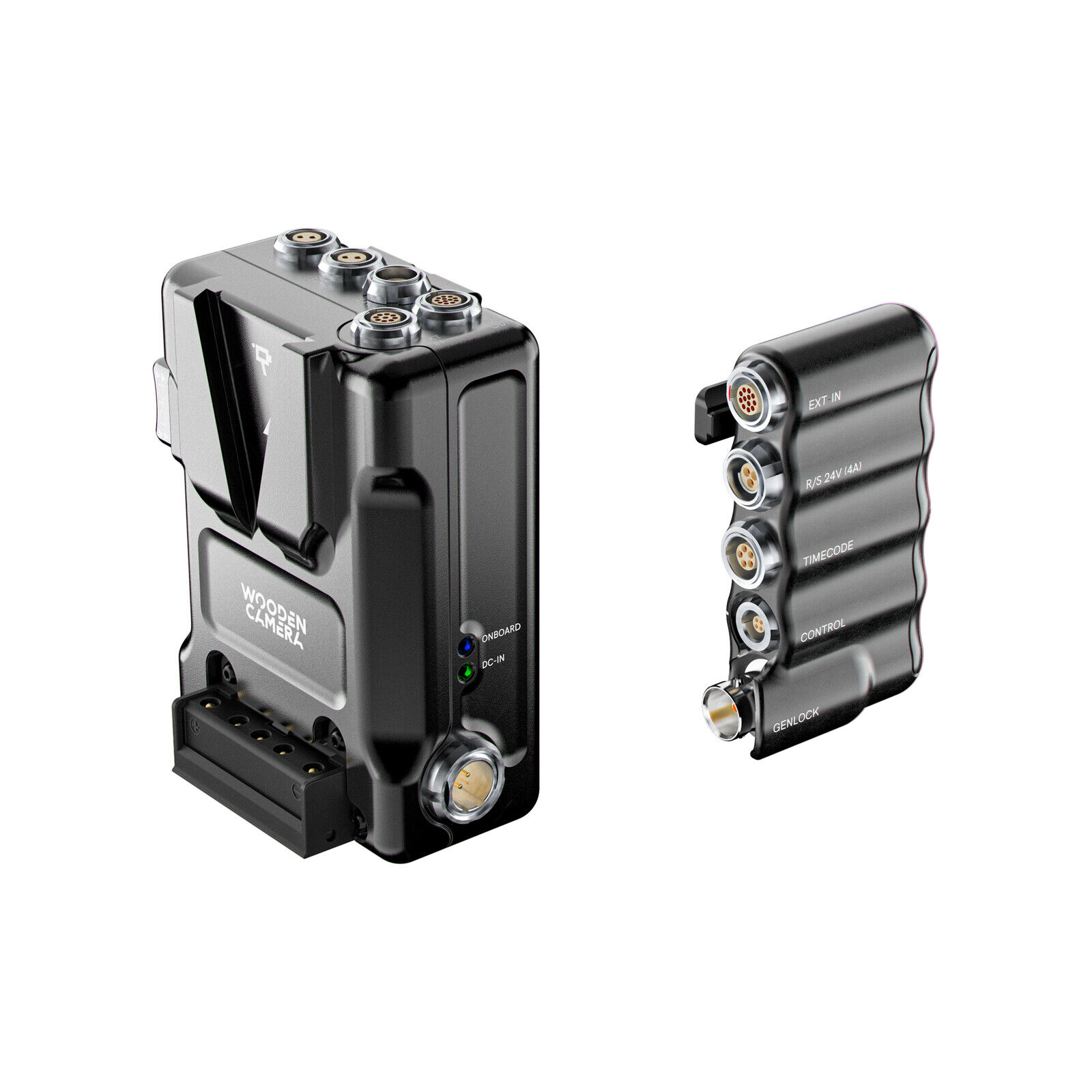

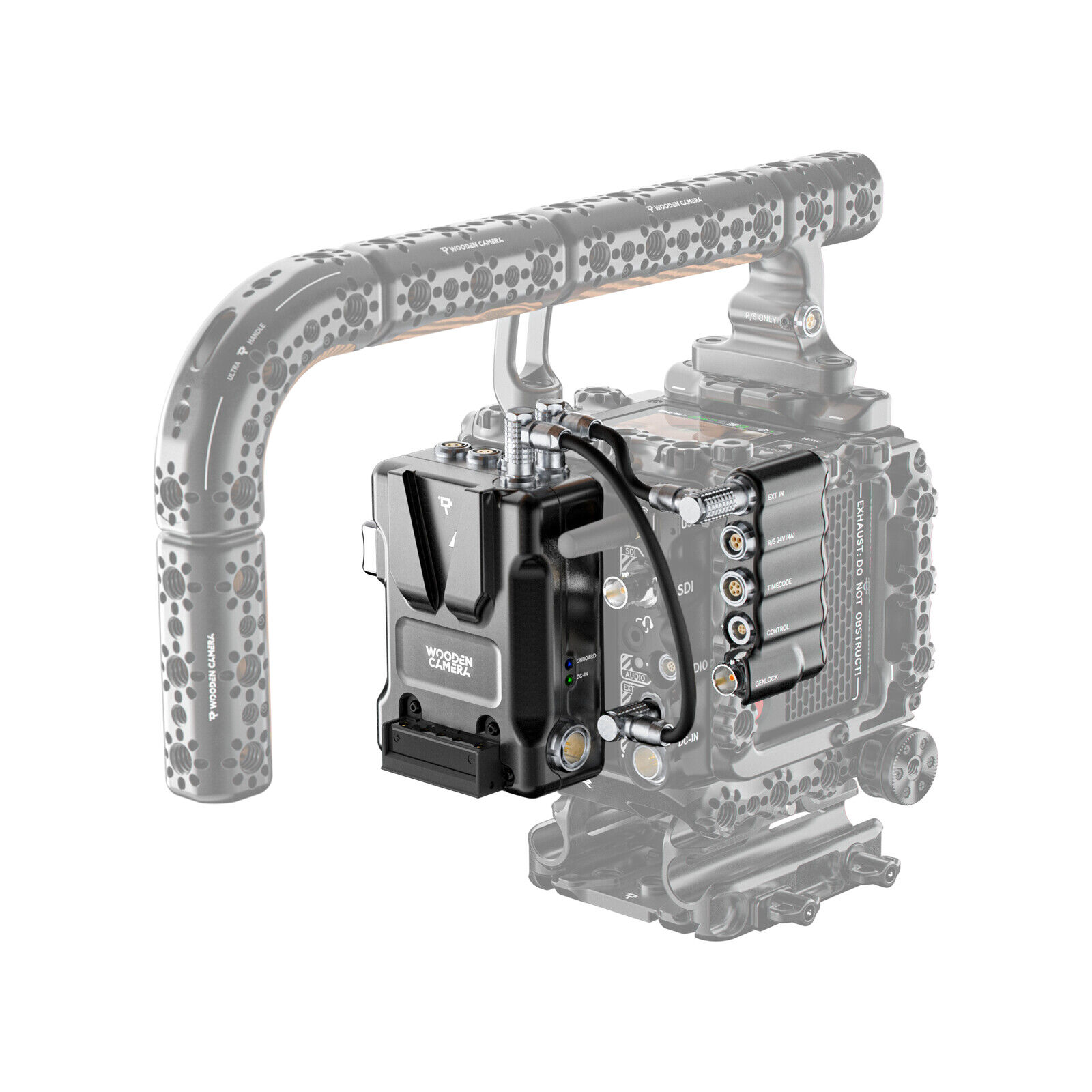

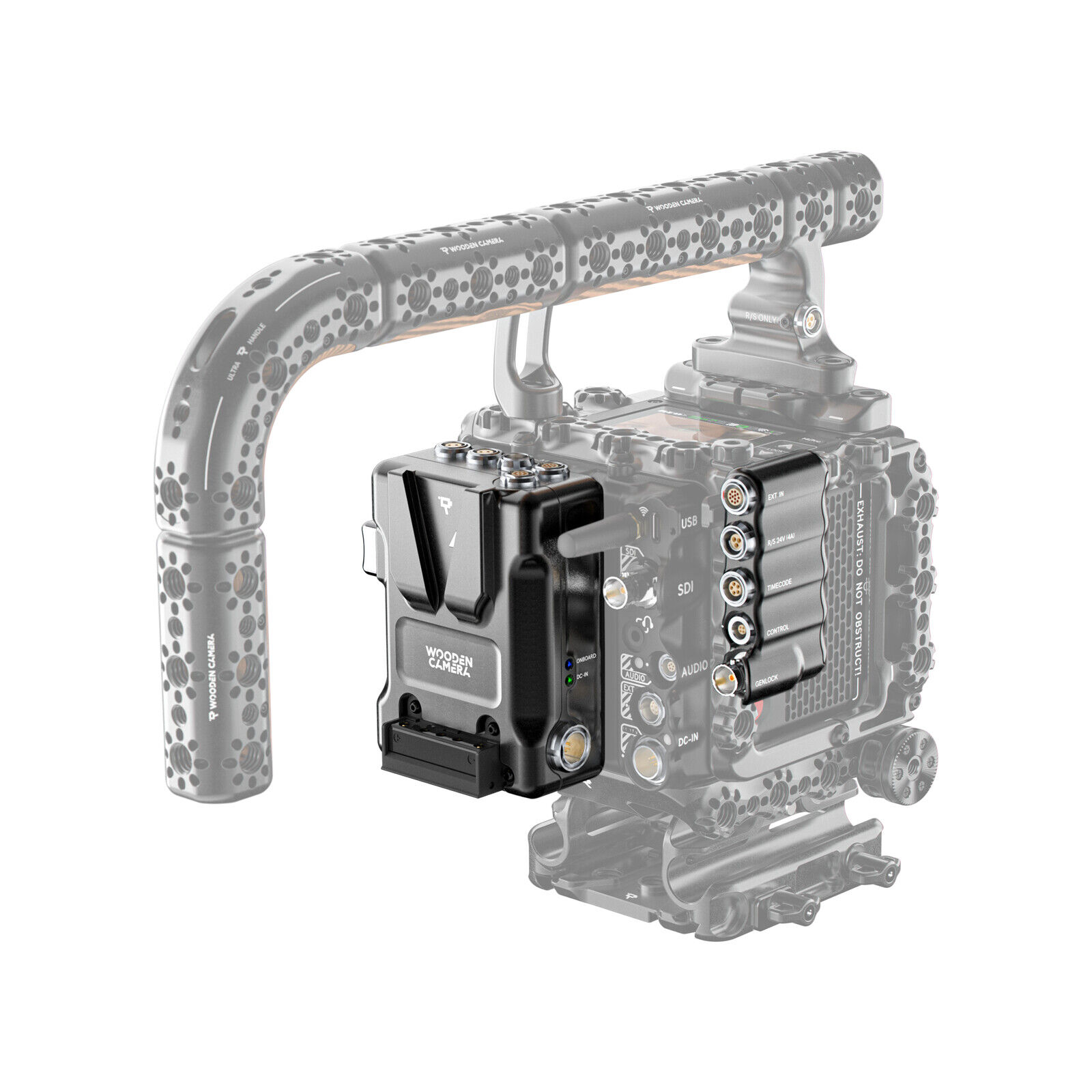

A system with D-Box, B-Box, cables and mounting options for attaching the B-Box to the Rear Cage. The D-Box offers hot swap when power is connected to the DC input and an on-board battery; connected to the camera's EXT port it enables run/stop on both the D-Box and the B-Box.
Features
- Additional 12 V 2-pin ports, a D-Tap port and a 24 V 3-pin output
- B-Box with eight M2.5 threaded holes for accessory rails and Bolt-On plate adapters
- For the B-Box: one 40 mm Accessory Rail for the Rear Cage mini clamp mount and a Bolt-On ⅜"-16 accessory mount
Package contents
- D-Box (RED Komodo-X), V-Mount
- B-Box (RED Komodo, Komodo-X, V-Raptor)
- Cables and mounting hardware
Specifications
| Compatibility | RED Komodo-X |
|---|---|
| Battery mount | V-Mount |
| Weight | 367 g |
| Dimensions | 48 x 133 x 125 mm |
| Product Condition | New |
|---|---|
| Manufacturer | Wooden Camera |
| manufacturer code | A00544 |
| Ean | 0655466707385 |
