Wooden Camera K10030 – Core Accessory System for Canon EOS C400, V-Mount

Wooden Camera K10030 – Core Accessory System for Canon EOS C400, V-Mount

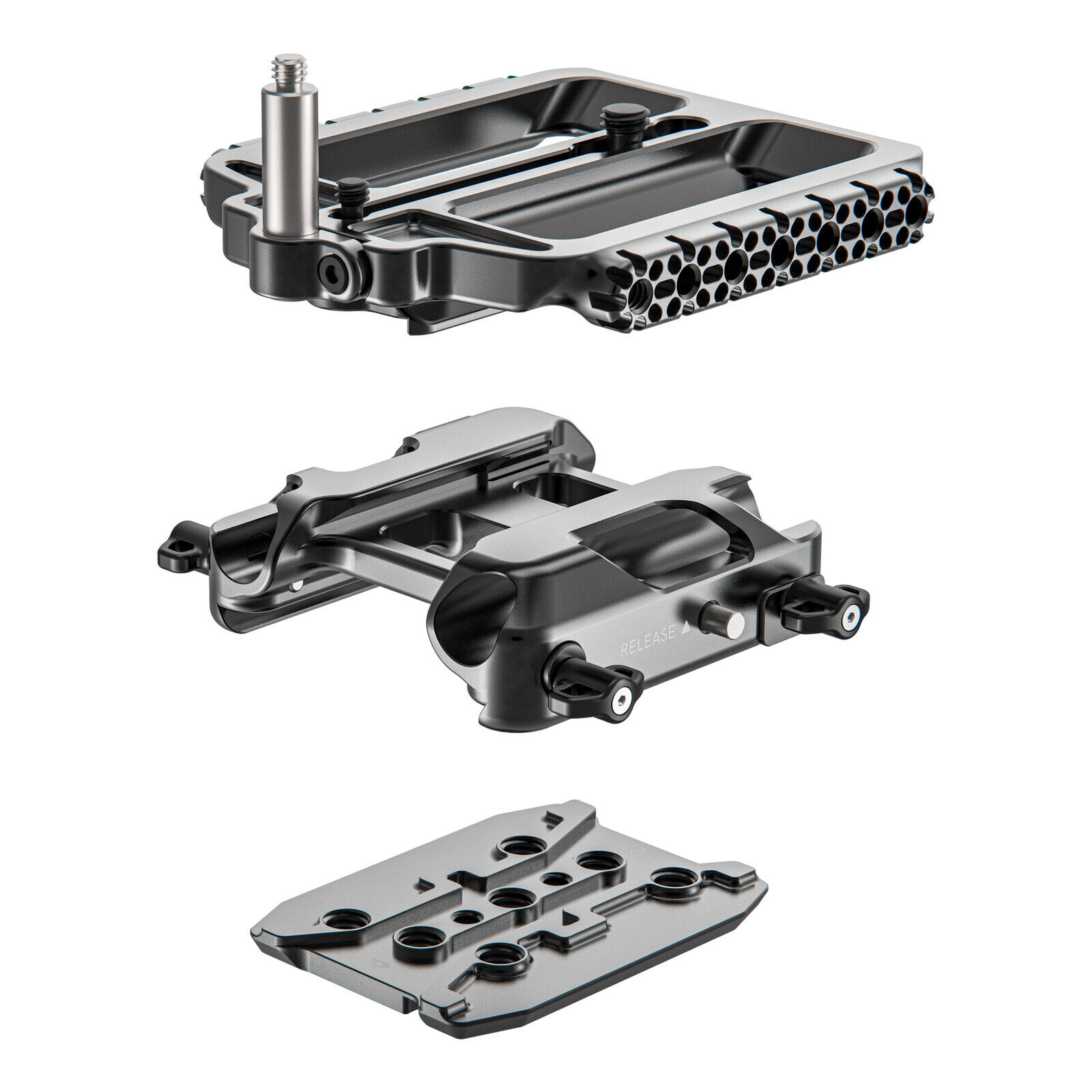

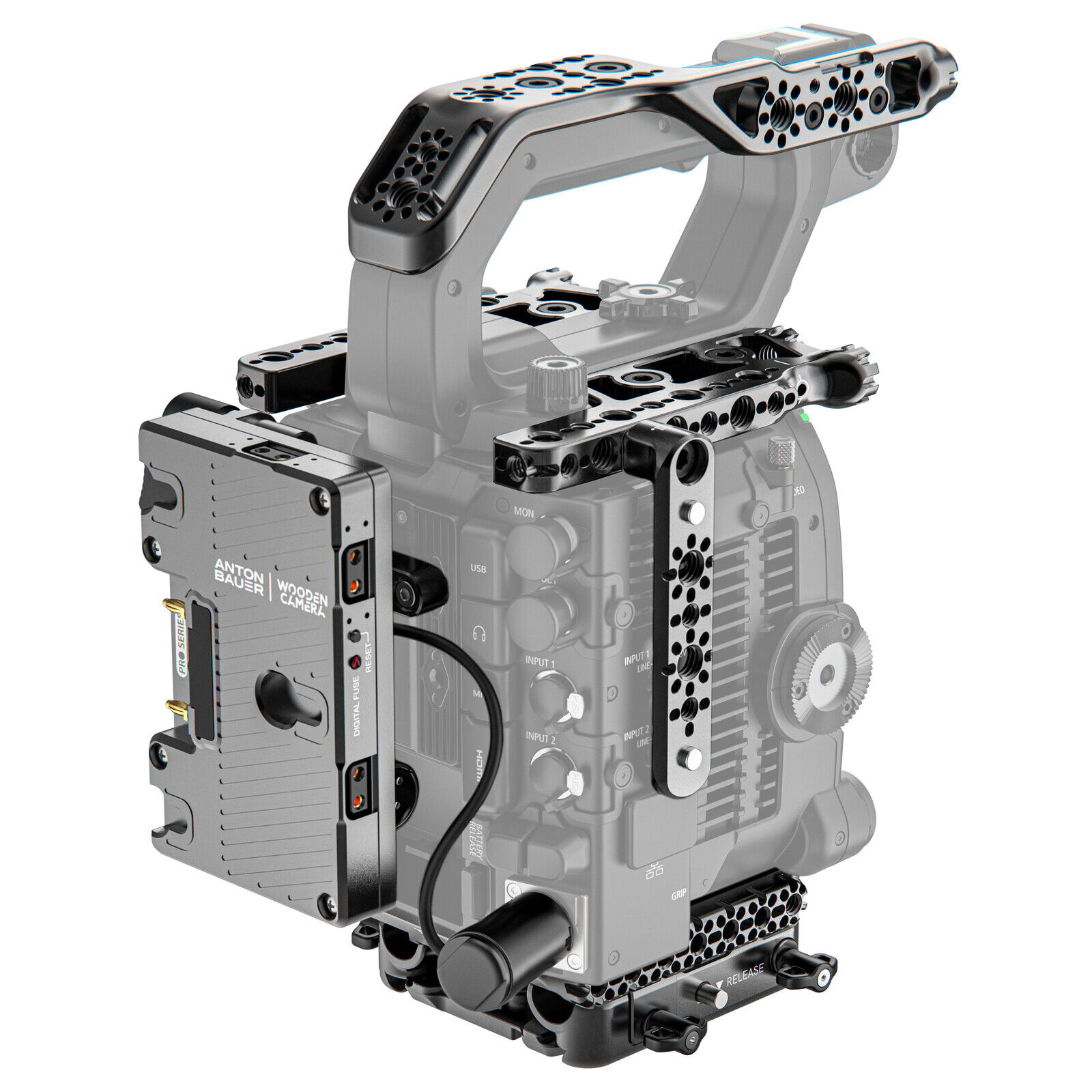

A compact system for the Canon EOS C400 that adds plenty of accessory mounting points. The base plate and riser bring the camera to the correct optical height for cinema accessories, and the ARCA system allows quick changes between Steadicam, shoulder and tripod.

Features

• Left and right top plates: symmetrical, usable on either side for extra mounting points

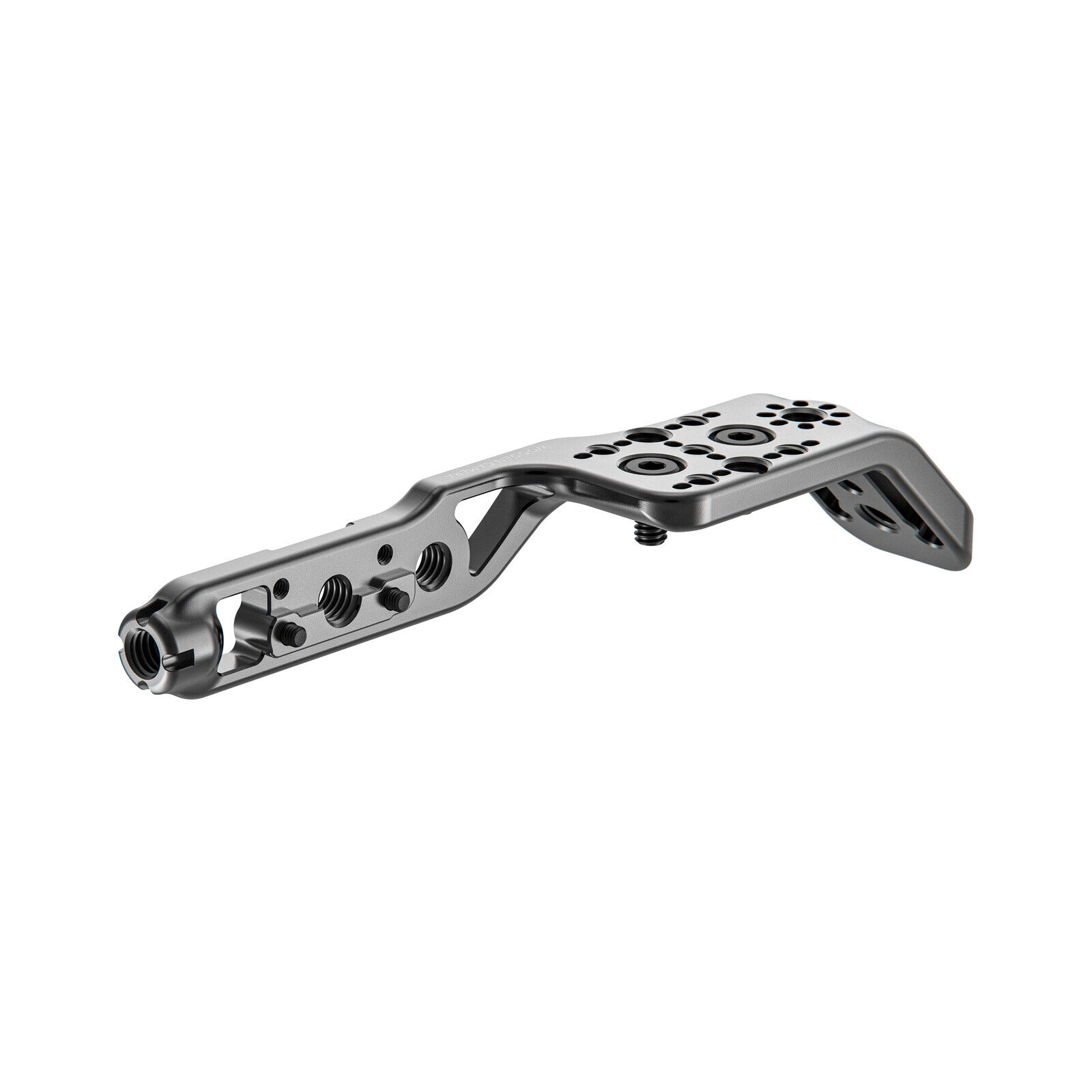

• Top handle cheese plate: attaches to the C400 handle and adds mounting points on top and side; the cutout keeps the hot shoe accessible for the stock microphone mount

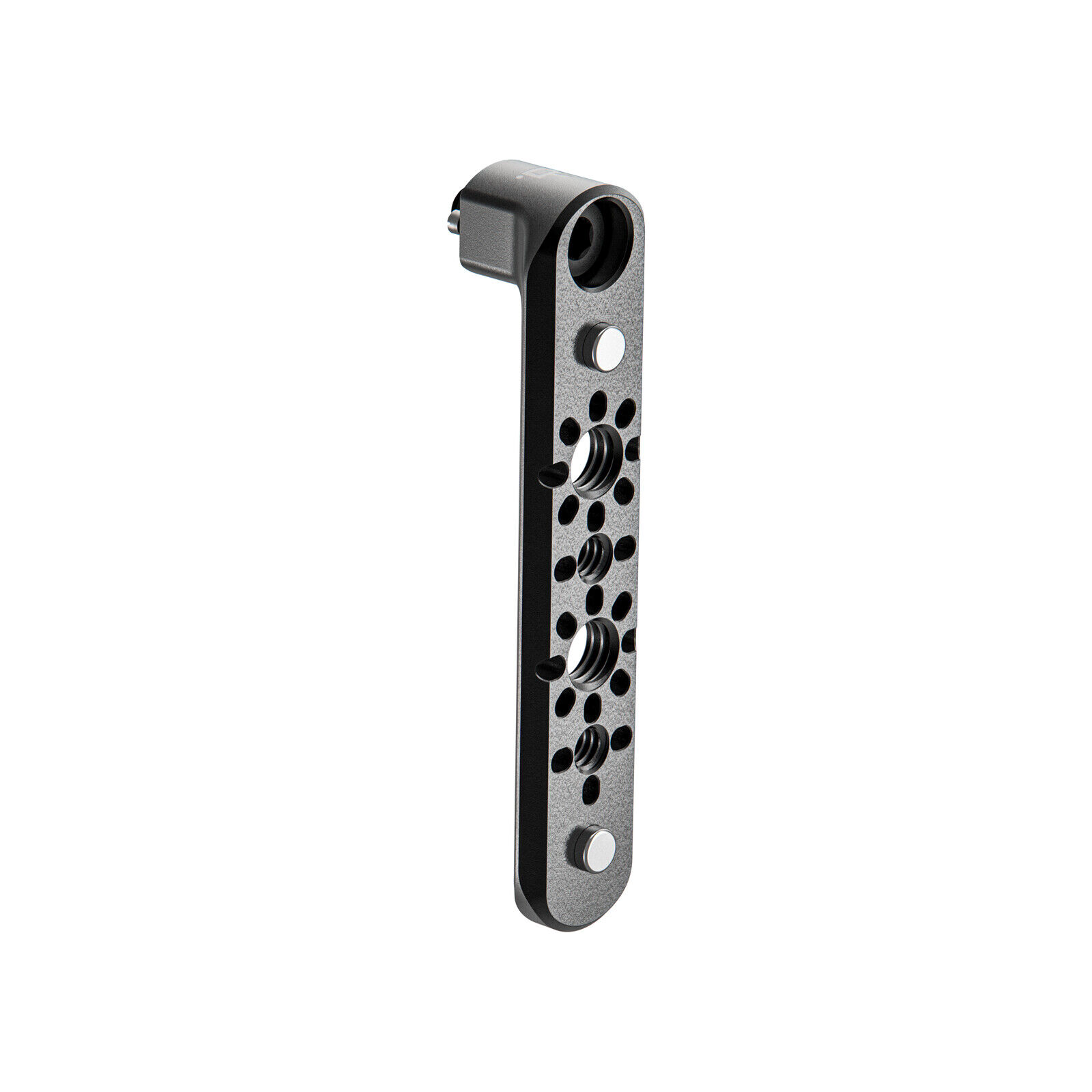

• NATO side rail: mounts to the top plate towards the rear without touching the handle, with patented anti-twist safety pins

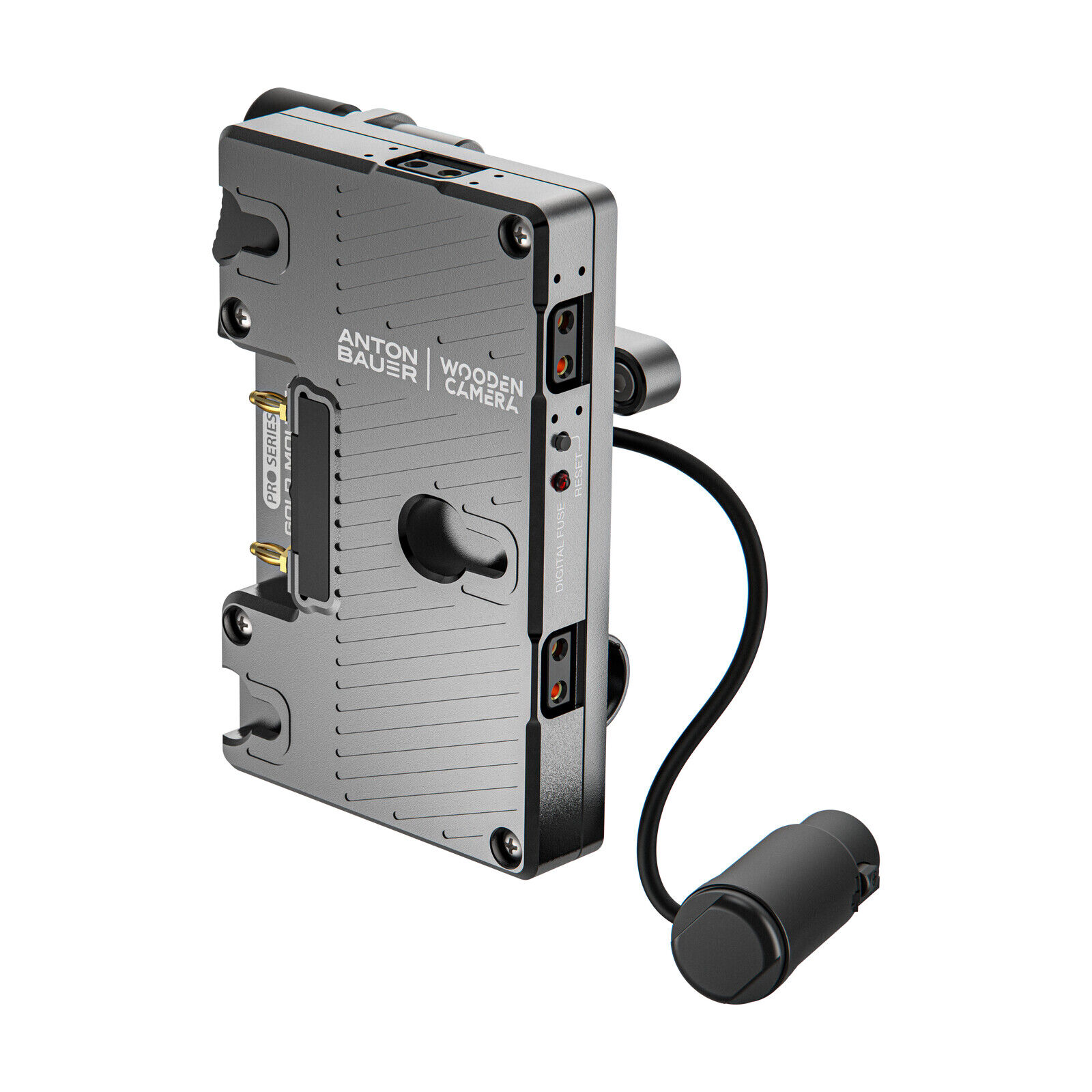

• Battery Slide Pro V-Mount: attaches to the back of the camera without rods and powers it via a 4-pin XLR connector, keeping the internal BPU battery compartment accessible for hot swap
• DC input on the right side for hot swapping between block and on-board batteries
• 3 D-Tap outputs at battery voltage; a digital fuse, when tripped, cuts the accessory outputs while keeping the camera powered

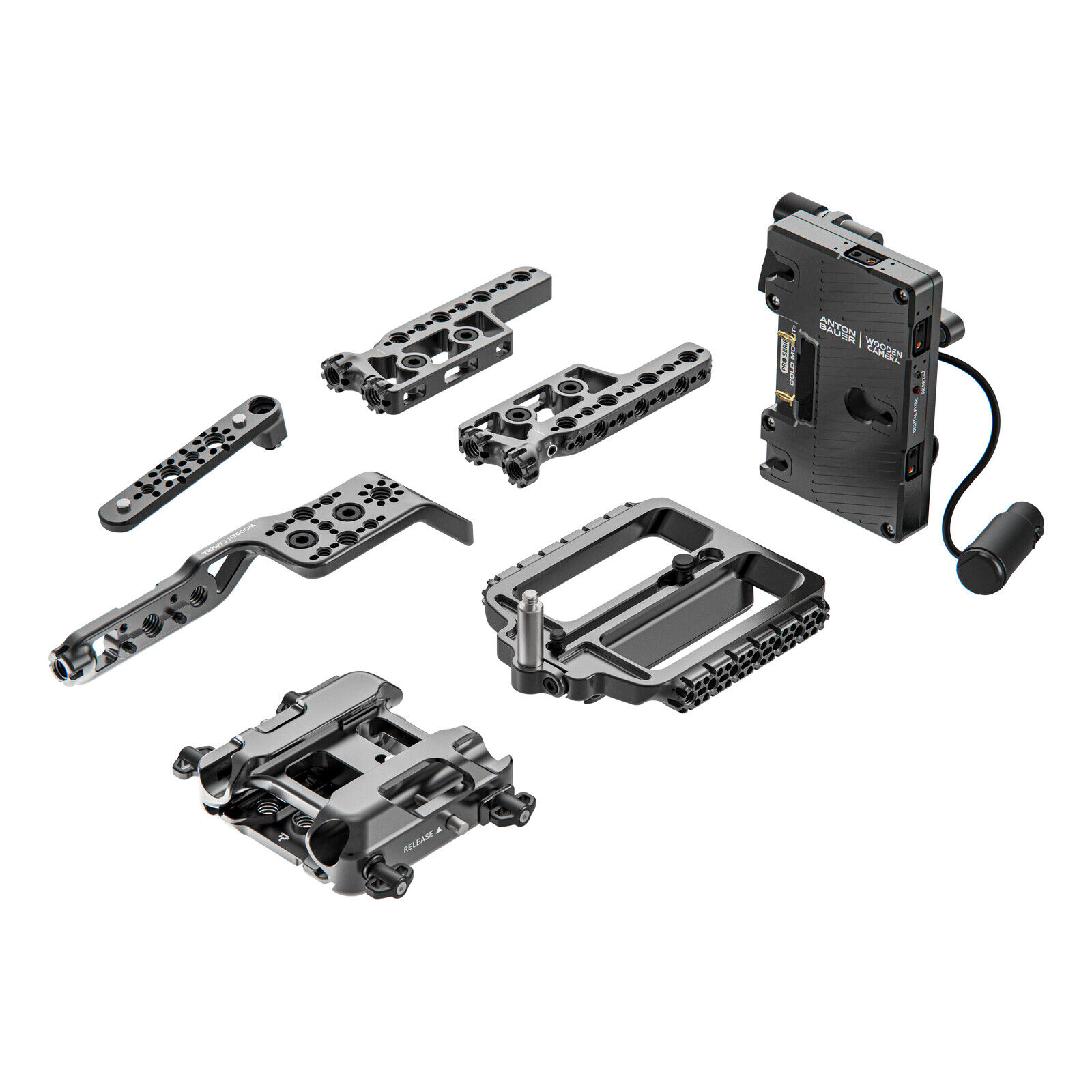

Package contents

• Battery Slide Pro V-Mount
• Base plate system for Canon EOS C400
• 2 x top plate for Canon EOS C400 (left/right)
• Top handle cheese plate for Canon EOS C400
• NATO side rail for Canon EOS C400

Specifications
