1-Channel Single Mode LC Fiber to 3G-SDI w/ Dual 3G-SDI Outputs Receiver
GTIN: 0892448000960
AJA FiDO 1-channel single mode LC fiber to 3G-SDI receiver Mini-Converter for runs up to 10 km (32,808 ft), with HDR metadata pass-through and universal power supply included.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

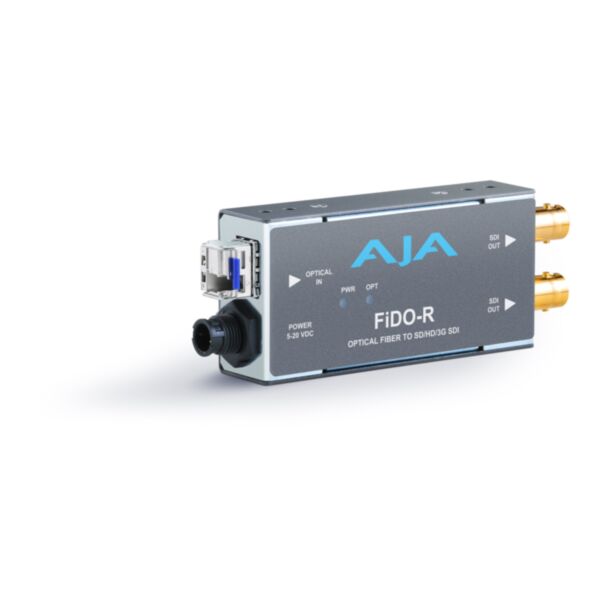

AJA FiDO-R 1-Channel Single Mode LC Fiber to 3G-SDI Receiver
The AJA FiDO-R is a 1-channel single mode LC fiber to 3G-SDI receiver from the FiDO range of AJA fiber Mini-Converters. It receives one 3G-SDI signal over single mode fiber and delivers it on BNC SDI outputs, for cable runs up to 10 km (32,808 ft). It handles 3G/HD/SD-SDI signals (150 Mbps - 3 Gbps, format agnostic) and passes SDI metadata through, including HDR. The fiber link provides electrical isolation, useful for eliminating ground loop problems. The compact, low-profile enclosure works well in tight spaces around and behind equipment racks, in trucks and on camera, and runs on 5-20 VDC power with a universal power supply included.
Key features
- Simplex connection (LC connector)
- 3G/HD/SD-SDI output
- Dual, matching SDI outputs
- Pass-through of SDI metadata, including HDR
- 5-20 VDC power, universal power supply included
Specifications
- Video formats: 150 Mbps - 3 Gbps, format agnostic
- Fiber input: single mode LC, SMPTE 297, 1260-1620 nm
- SDI outputs: dual matching 3G-SDI BNC, SMPTE 259/292/424
- Dimensions (W x D x H): 117.0 x 43.5 x 21.6 mm
- Weight: 0.3 kg
- Power: 2 W max
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | FiDO-R-R0 |
| Ean | 0892448000960 |
| Taric Code | 8517620085 |
