AJA DANTE-AV-4K-T-2 Transmitter Encodes 12G / HDMI Video with Embedded Audio into Dante AV Ultra JPEG 2000
Transmitter that encodes 12G-SDI or HDMI 2.0 video with embedded audio into Dante AV Ultra (JPEG 2000) up to 4K/UltraHD 60p HDR, over standard 1 GigE networks with PoE+.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

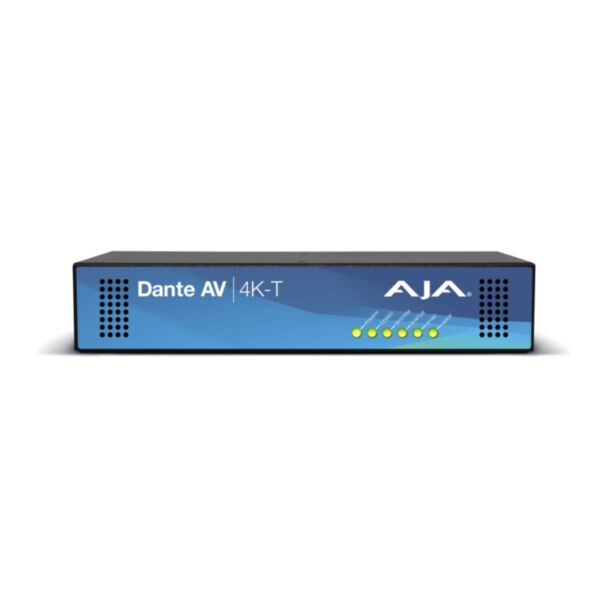

AJA Dante AV 4K-T Dante AV Ultra Transmitter DANTE-AV-4K-T-2
The AJA Dante AV 4K-T encodes 12G-SDI or HDMI 2.0 video with embedded audio into Dante AV Ultra, bringing cinema-quality networked video alongside the Dante audio-over-IP platform on standard 1 GigE networks. It supports 4K/UltraHD/2K/HD and VESA sources, with HDR HLG and PQ, and transports RGB/4:4:4 video up to 60p with ultra-low latency and visually lossless quality.
Audio and video stay time aligned and can be routed separately in Audinate Dante Controller, which also handles KVM, VISCA and IR. The unit is housed in a robust metal case and can be powered by 12 V DC or PoE+; it can be rack mounted side by side with the 4K-R on the optional IOX-RM tray.
Key features
- 12G-SDI and HDMI 2.0 inputs (one used at a time, auto-detect or manual selection)
- SDI input up to 4K/UltraHD 60p, 2SI mapping; HDMI up to 4K 60p and VESA formats
- Up to 4K/UltraHD 60p RGB/4:4:4 HDR with ultra-low latency and visually lossless quality
- Works on standard 1 GigE networks (managed switch required)
- Time-aligned audio and video, separately routable in Dante Controller
- HDR HLG and PQ with metadata pass-through and optional override
- Routing of video, audio, KVM, VISCA and IR in Dante Controller
- Compatible with Audinate Dante Controller and Dante Domain Manager on macOS and Windows
- 1 GigE PoE+ port
Specifications
- Video formats: 4K, UltraHD, 2K, HD up to 60p; VESA up to 1920x1200 (RGB 4:4:4, 60 Hz, 8-bit)
- Codec: JPEG 2000 (Dante AV Ultra), up to 700 Mbps, unicast or multicast
- Latency: 0.5 frame (under 8 ms at 2160p60), network dependent
- Audio: SDI/HDMI embedded 8 channels 24-bit 48 kHz; Dante audio up to 8 channels
- Copy protection: HDCP 2.2, HDCP 2.3 for network
- Interfaces: 2 x Neutrik etherCON RJ45 1 GigE (one with PoE+), DB-9 RS-422/VISCA, 2 x USB 2.0 Type A, USB Mini-B, IR Tx/Rx 3.5 mm
- Dimensions (w x d x h): 222 x 180.09 x 41.91 mm
- Weight: 1.5 kg
- Power: 30 W maximum, 12 V DC or PoE+
- Operating temperature: 0 to 40 °C
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | DANTE-AV-4K-T-2 |
| Taric Code | 8525503035 |
