AJA FiDO-T-MM Active video converter
GTIN: 0812321030365
AJA FiDO 1-channel 3G-SDI to multi-mode LC fiber transmitter Mini-Converter for runs up to 700 m (OM4) or 300 m (OM3), with HDR metadata pass-through and universal power supply included.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

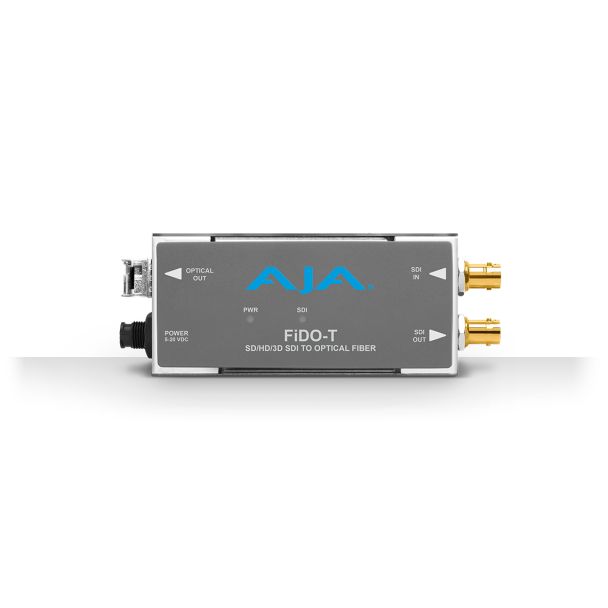

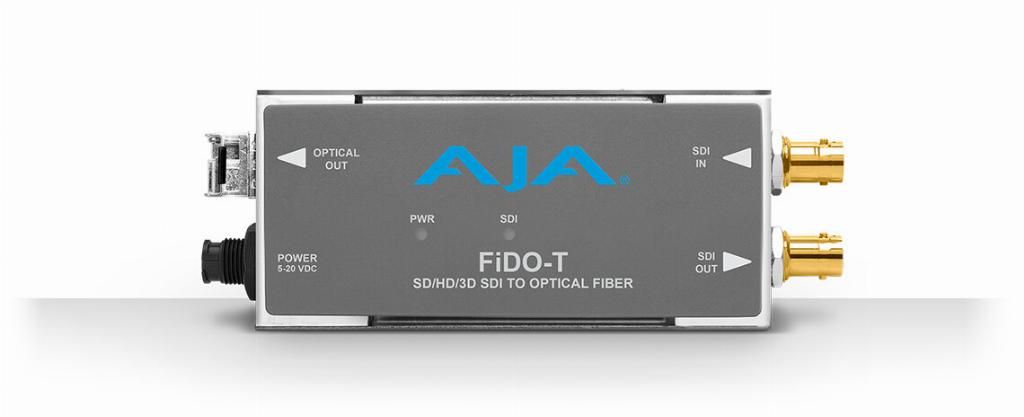

AJA FiDO-T-MM 1-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter
The AJA FiDO-T-MM is a 1-channel 3G-SDI to multi-mode LC fiber transmitter from the FiDO range of AJA fiber Mini-Converters. It converts one 3G-SDI signal from BNC inputs to multi-mode fiber, for cable runs up to 700 m (OM4) or 300 m (OM3). It handles 3G/HD/SD-SDI signals (150 Mbps - 3 Gbps, format agnostic) and passes SDI metadata through, including HDR. The fiber link provides electrical isolation, useful for eliminating ground loop problems. The compact, low-profile enclosure works well in tight spaces around and behind equipment racks, in trucks and on camera, and runs on 5-20 VDC power with a universal power supply included.
Key features
- Simplex connection (LC connector)
- 3G/HD/SD-SDI input
- Looping SDI output
- Pass-through of SDI metadata, including HDR
- 5-20 VDC power, universal power supply included
Specifications
- Video formats: 150 Mbps - 3 Gbps, format agnostic
- SDI input: 3G-SDI BNC with loop out, SMPTE 259/292/424
- Fiber output: multi-mode LC, SMPTE 297, 850 nm
- Dimensions (W x D x H): 117.0 x 43.5 x 21.6 mm
- Weight: 0.3 kg
- Power: 2 W max
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | FiDO-T-MM |
| Ean | 0812321030365 |
| Taric Code | 8517620085 |
| Modified on | 05-02-2019 |
| Product title | AJA FiDO-T-MM Active video converter |
| Long Product Name | 1-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter |
| Product specifications | FeaturesConverter type* Active video converter Product colour Grey VideoBandwidth 3 Gbit/s Ports & interfacesHost interface* BNC PowerInput voltage 20 V Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 60 °C Operating relative humidity (H-H) 10 - 90% Operating altitude 0 - 3000 m Weight & dimensionsWidth 117 mm Depth 43.5 mm Height 21.6 mm |
| Essential qualities |
|
| Converter type | Active video converter |
| Host interface | BNC |
