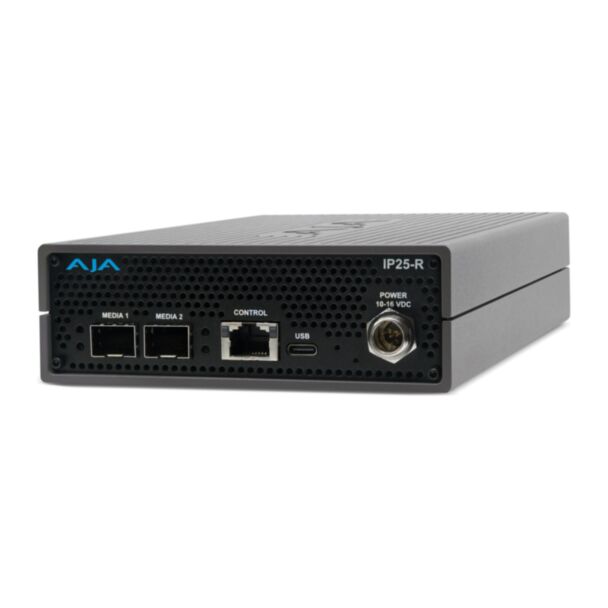

AJA IP25-R 25 GigE IP to 2x HDMI 2.0 and 4x 12G-SDI Converter

AJA IP25-R SMPTE ST 2110 to 12G-SDI/HDMI 2.0 Converter IP25-R

The AJA IP25-R bridges SMPTE ST 2110 IP media networks and SDI/HDMI infrastructures. In Rx mode it de-encapsulates up to six ST 2110 video streams with audio and ancillary data and outputs them on four 12G-SDI and two HDMI 2.0 outputs for confidence monitoring, playout or routing; in Tx mode (v2.0 firmware) it converts up to four SDI inputs up to 12G-SDI into ST 2110 with frame-accurate synchronization.

Video is 10-bit 4:2:2 up to 4K DCI 4096x2160p60. The two SFP28 cages accept 10 GigE and 25 GigE SFPs and provide ST 2022-7 seamless protection switching. Control is via web UI, NMOS IS-04/IS-05, AJA REST API and Ember+, in-band or out-of-band on the 1 GigE RJ45 port, and the unit includes ST 2110 diagnostic tools such as test signal generators, ping, packet capture and SDP override. The aluminium enclosure fits up to three units in a 1RU shelf.

Key features

• SMPTE ST 2110 -10, -20, -21, -30, -40 compliant
• ST 2110-20 video: up to 6 Rx or 4 Tx with ST 2022-7 redundancy
• 4 x 12G-SDI BNC with embedded audio, set as inputs or outputs
• 2 x HDMI 2.0 outputs
• 10-bit 4:2:2 up to 4K DCI 4096x2160p60
• ST 2110-30 audio: up to 24 Rx or 16 Tx; 1x16, 2x8, 4x4 modes
• ST 2110-40 ancillary data: up to 6 Rx
• 2 x SFP28 cages for 10 GigE and 25 GigE SFPs
• NMOS IS-04/IS-05, AJA REST API and Ember+ control; PTPv2/ST 2059-2
• Test signal generator, presets, ST 2110 configuration and diagnostic tools
• HDR support with metadata override for SDI VPID and HDMI InfoFrame; BT.709/BT.2020
• HDMI strain-relief bracket included
