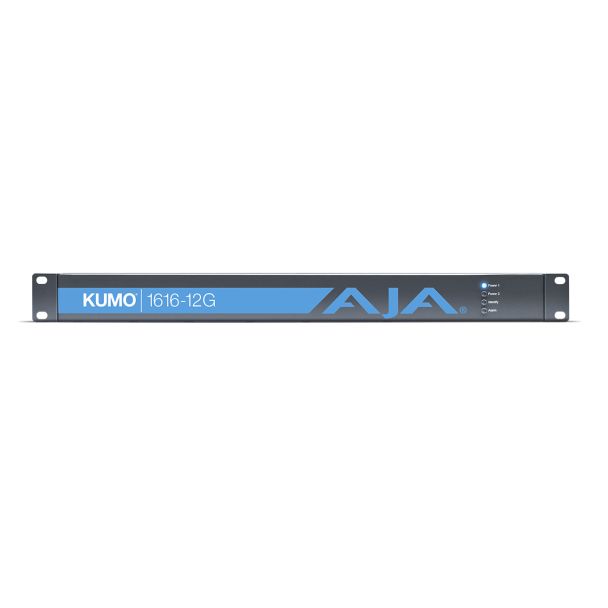

AJA KUMO 1616-12G BNC
Compact 1RU 16x16 12G-SDI router for 12G/6G/3G/1.5G-SDI, single-cable 4K/UltraHD, ganged dual and quad link routing up to 8K, web control, eight salvos and optional redundant power.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label
AJA KUMO 1616-12G Compact 16x16 12G-SDI Router
KUMO 1616-12G combines cameras, monitors, editing systems, decks and file-based recorders into a single workflow in a compact 1RU chassis only a few inches deep, with 16 12G-SDI inputs and 16 12G-SDI outputs. It supports 12G, 6G, 3G and 1.5G-SDI, single-cable 4K/UltraHD, HFR and deep colour formats, and ganged dual and quad port routing for Dual Link, Quad Link 4K/UltraHD and 8K/UltraHD2. Any input can be mapped to any number of outputs, so the router can also replace several distribution amplifiers.
Running embedded Linux, the router is controlled and monitored from any web browser through its built-in web server, and its IP address is set via USB with the supplied AJA eMini-Setup software; Bonjour/Zeroconf allows automatic network configuration. It integrates with existing systems via Grass Valley Native Protocol over RS-422 or Ethernet, and can be operated with the optional KUMO CP and CP2 hardware panels. Up to eight salvos and 20 presets can be stored, and dual power inputs allow an optional redundant power supply.
Key features
- 16x 12G-SDI inputs and 16x 12G-SDI outputs
- Compact 1RU form factor
- Single-cable 4K/UltraHD support
- Ganged dual and quad port routing up to 8K/UltraHD2
- Eight salvos per router, 20 presets
- Embedded web server for remote control
- IP configuration via USB with AJA eMini-Setup (PC/Mac)
- Optional redundant power supply
Compatibility
- AJA KUMO CP and KUMO CP2 control panels
- Grass Valley Native Protocol (RS-422 and Ethernet)
In the box
- 1 x KUMO 1616-12G router
- 1 x AC adapter
Specifications
- Video: 270 Mbps, 1.5, 3, 6, 12 Gbps SDI; 270 Mbps DVB-ASI
- Inputs/outputs: 16x 12G-SDI BNC each, SMPTE-259/292/424/2081/2082
- Cable equalisation (Belden 1694A): 12 Gbps up to 50 m, 3 Gbps up to 140 m, 270 Mbps up to 390 m
- Reference: 2x BNC looping, blackburst or tri-level
- Interfaces: RJ-45 10/100/1000 Ethernet, Mini-USB, DB-9 RS-422
- Dimensions: 441.96 x 39.12 x 44.45 mm (1RU)
- Weight: 0.7 kg
- Power: 10-14 V DC, 16 W typical; included AC adapter 100-240 V AC, 60 W
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | KUMO-1616-12G |
| Taric Code | 8517620050 |
| Modified on | 05-02-2019 |
| Product title | AJA KUMO 1616-12G BNC |
| Long Product Name | Compact 16x16 12G-SDI Router |
| Product specifications | Ports & interfacesVideo port type* BNC BNC input ports 16 BNC output ports 16 RJ-45 input ports 1 FeaturesProduct colour Grey Maximum operating distance 405 m Bandwidth 12 Gbit/s PowerAC adapter input voltage 100 - 240 V AC adapter frequency 50/60 Hz Power consumption (typical) 17 W Weight & dimensionsWidth 442 mm Depth 39.1 mm Height 44.5 mm Weight 700 g Packaging contentQuantity per pack 1 pc(s) Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 60 °C Operating relative humidity (H-H) 10 - 90% |
| Essential qualities |
|
| Video port type | BNC |
