AJA KUMO-6464-12G-1 KUMO 64x64 Compact 12G-SDI Router, with 1 Power Supply

AJA KUMO 6464-12G Compact 64x64 12G-SDI Router, 1 Power Supply KUMO-6464-12G-1

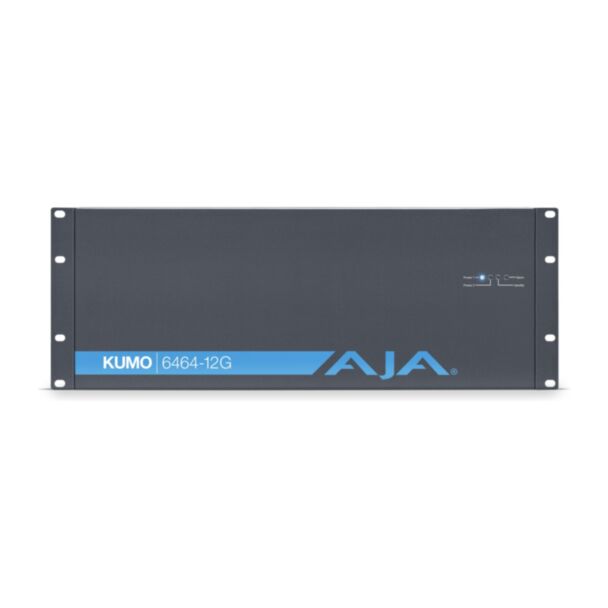

The AJA KUMO 6464-12G is a compact 4RU router with 64 12G-SDI inputs and 64 12G-SDI outputs, supporting SD up to 4K and, with ganged dual and quad port routing, Dual Link, Quad Link 4K/UltraHD and 8K/UltraHD2 workflows. Its cross-point matrix maps any input to any number of outputs without patch panels or distribution amplifiers, and single-link 12G-SDI reduces cable counts for 4K/UltraHD. This version is supplied with one power supply; a second KUMO-84W-PWR can be added for redundancy.

The router has no fans, so it suits environments that need silent operation. It is controlled via its embedded web server, the KUMO CP and CP2 control panels (up to 32 panels per router), and Grass Valley Native Protocol over RS-422 or Ethernet. Up to eight salvos and twenty presets can be stored, and the IP address is configured via USB with the free AJA eMini-Setup software.

Key features

• 64 x 12G-SDI inputs and 64 x 12G-SDI outputs
• Single-cable 4K/UltraHD support
• Ganged dual and quad port routing up to 8K/UltraHD2
• Eight salvos and twenty presets
• Embedded web server for remote control
• Control by up to 32 AJA KUMO control panels
• Grass Valley Native Protocol over RS-422 or Ethernet
• RP-168 compliant switching in vertical blanking
• Fanless design
• Redundant power supply as an option

Specifications

• Formats: 270 Mbps, 1.5, 3, 6, 12 Gbps SDI; 270 Mbps DVB-ASI
• Cable equalization (Belden 1694A): 12 Gbps up to 50 m, 3 Gbps up to 140 m, 270 Mbps up to 390 m
• Reference: 2 x BNC looping, blackburst or tri-level
• Interfaces: RJ-45 10/100/1000 Ethernet, Mini-USB, DB-9 RS-422
• Size: 4RU, 441.96 mm wide
• Weight: 4.2 kg
• Power: 10-14 V DC, 50 W typical, 72 W max; 84 W AC adapter included
• Operating temperature: 0 to 40 °C
