AJA OG-GEN10 HD/SD Sync Generator, Simultaneous Blackburst & Tri-level, Outputs Assignable
openGear HD/SD/AES-11 sync generator card with 9 synchronized reference outputs in two independent groups for simultaneous HD tri-level and SD sync, plus one AES-11 output.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

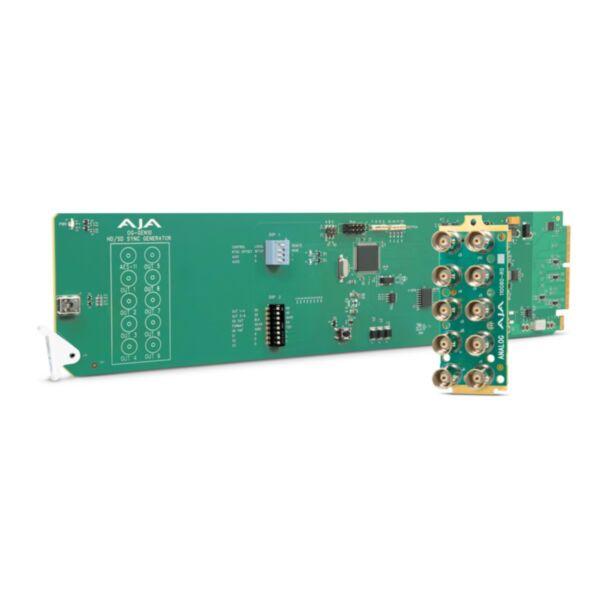

AJA OG-GEN10 openGear HD/SD and AES-11 Sync Generator
The AJA OG-GEN10 is an SD/HD/AES-11 sync generator card for openGear frames. It has 10 outputs in total: nine synchronized SD/HD reference outputs in two independently controlled groups (outputs 1-4 and 5-9), allowing simultaneous HD and SD sync, plus one AES-11 output. SD outputs can be switched between color black and color bars, HD tri-level sync between 19 HD formats, and the AES-11 output between silence and tone. All outputs are sourced from an accurate master time base. The card is hot swappable, can use the redundant power of the openGear frame and is configured by DIP switches or remotely with Ross DashBoard.
Key features
- HD tri-level sync generation
- SD color black or 75% color bars
- 9 synchronized reference outputs in two groups (1-4, 5-9)
- AES-11 output switchable between silence and tone
- External DIP switch configuration or remote control via Ross DashBoard
- Optional redundant power via the openGear frame
- Hot swappable
Compatibility
- openGear frames AJA OG-X-FR, OG-3-FR and DFR-8321
Specifications
- Formats: 1080i 50/59.94/60, 1080PsF and 1080p 23.98-30, 720p 23.98-60, 625i, 525i
- Outputs: 9 x BNC analog SD/HD sync, 1 x BNC AES-11
- AES: AES-11, 48 kHz, silence or 1 kHz tone (-20 or -18 dBFS)
- Accuracy: 3 ppm
- Form factor: openGear front card and rear module, two slots per card
- Weight: 0.3 kg
- Power: 6.75 W max per card
- Operating temperature: 0 to 40 °C
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-GEN10 |
| Taric Code | 8525503035 |
