AJA UDC-4K 12G-SDI and HDMI 2.0 Up, Down, Cross-Conversion with Frame Sync
Mini-Converter for up, down and cross-conversion between 4K/UHD and 2K/HD, with frame sync, 12G-SDI/HDMI 2.0 conversion up to 4Kp60, 1x4 12G-SDI DA and HDR metadata handling.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label
AJA UDC-4K 12G-SDI and HDMI 2.0 Up/Down/Cross-Converter with Frame Sync

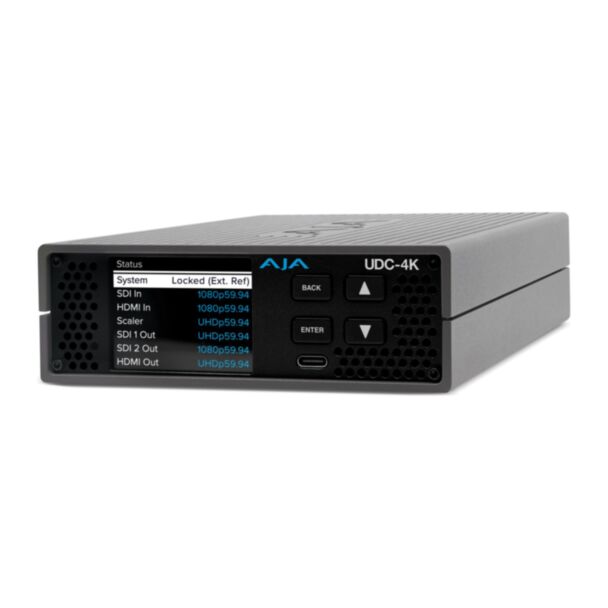

The AJA UDC-4K is a broadcast-quality up/down/cross Mini-Converter that converts between 4K/UHD and 2K/HD formats. Besides raster and frame rate conversion it works as a frame synchronizer and as a 1x4 12G-SDI distribution amplifier, with video formats up to 4Kp60, and it converts 12G-SDI to HDMI 2.0 and vice versa. Utility frame rate conversion handles 59.94 to 50/60 and 50/60 to 59.94.
It has 12G-SDI and HDMI 2.0 inputs, four 12G-SDI outputs and one HDMI 2.0 output, with SDI and HDMI loop outputs, and can lock to an external reference or to the SDI or HDMI input. Processing is 12-bit with AJA multi-tap polyphase scaling and a motion adaptive deinterlacer, and HDR signaling (SDI VPID and HDMI InfoFrame) can be passed or overridden. It is configured with the built-in buttons and color LCD or with the free AJA Mini-Config software via USB-C.
Key features
- Up, down and cross-conversion of 4K/UHD/2K/HD signals
- Frame sync to external reference, SDI input, HDMI input or free run
- Utility frame rate conversion between 59.94 and 50/60
- 12G-SDI to/from HDMI 2.0 up to 4Kp60
- 12-bit processing, polyphase scaling, motion adaptive deinterlacer
- HDR metadata pass-through and optional override
- EDID emulation up to UHDp60
- SDI embedded audio 16 channels 24-bit; HDMI 8 channels 24-bit
- Pass-through of AC-3, E-AC-3 and DD+ Atmos (JOC)
- Audio delay up to 100 frames
- 4 x 12G-SDI outputs usable as a 1x4 DA; SDI and HDMI loop outputs
- Color LCD and buttons, or AJA Mini-Config via USB-C
- Universal power supply included
Notes
- HDMI output is not HDCP encoded and HDCP input is not accepted
Specifications
- SDI: 1 x 12G-SDI input, 4 x 12G-SDI outputs, BNC, SMPTE ST 292/424/2081/2082
- HDMI: 1 x input and 1 x output, HDMI v2.0b Type A
- Reference: 1 x BNC, blackburst or tri-level
- Video delay: nominal 2 frames
- Dimensions (w x d x h): 127 x 205.5 x 41.8 mm
- Weight: 0.9 kg
- Power: 10-18 V DC via 4-pin mini-XLR, 25 W max; 60 W AC adapter included
- Operating temperature: 0 to 40 °C
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | UDC-4K |
| Taric Code | 8525503035 |
