Aja Video Systems 12G-AMA-T 4-Channel 12G-SDI balanced analog audio Embedder/Disembedder with Single LC Fiber Transmitter, 8 XLR connectors
12G-SDI 4-channel balanced analog audio embedder/disembedder Mini-Converter up to 4K/UltraHD, fitted with a single-channel LC fiber SFP transmitter for long-distance links, with XLR breakout cable.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label
AJA 12G-AMA-T 12G-SDI 4-Channel Analog Audio Embedder/Disembedder with LC Fiber Transmitter

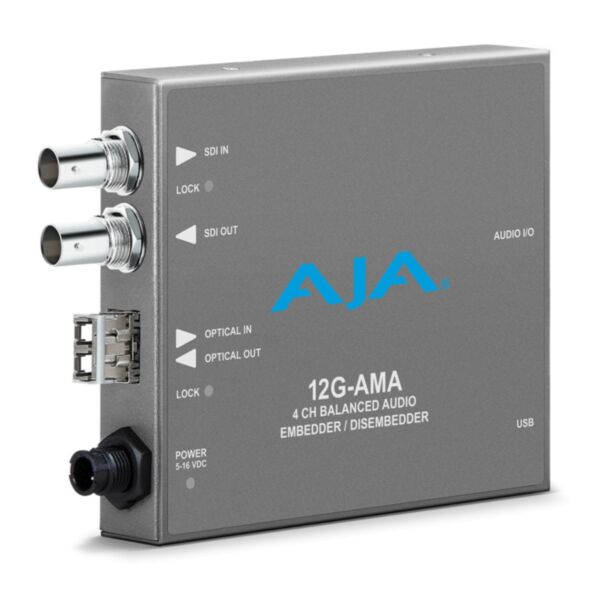

The AJA 12G-AMA-T is a 4-channel analog audio embedder/disembedder Mini-Converter with 12G-SDI input and output up to 4K/UltraHD. This model ships with a single-channel LC fiber SFP transmitter, which adds a fiber output, so 4K/UltraHD signals can be extended over long distances.
Disembedding is always active on four balanced analog outputs, while embedding is selectable per channel pair, either passing the audio already in the 12G-SDI signal or inserting the analog audio from the XLR breakout cable. Analog levels are selectable, the input video standard is detected automatically and HDR signals are passed through; setup is done with DIP switches or via USB with AJA Mini-Config software.
Key features
- Single-channel LC fiber SFP transmitter included
- 12G-SDI input and output up to 4K/UltraHD
- 4-channel balanced analog audio embedding and disembedding
- Disembedding always active, with four analog outputs
- Embedding selectable per channel pair: pass the SDI input audio or embed the analog input audio
- Selectable analog audio levels
- HDR pass-through
- Automatic detection and configuration of the input video standard
- 1.5G-SDI internal signal generator: the embedder path works even with no source on the SDI input
- Supplied XLR breakout cable: 4 channels in and 4 channels out over eight XLR connectors
- Configuration via DIP switches or USB with the free AJA Mini-Config software
- Compact size for installation behind a monitor, in a rack or on a camera rig
In the box
- 12G-AMA-T Mini-Converter with LC fiber SFP
- XLR breakout cable
- Power supply
Specifications
- Video formats: SD, HD, 2K, UltraHD and 4K up to 4096 x 2160p 60, RGB and YCbCr, 4:4:4/4:2:2, 10-bit
- Video input: 1 x 12G-SDI BNC (SMPTE 259/292/424/2081/2082), also 3G-SDI Level A, B-DL or B-DS
- Video output: 1 x 12G-SDI BNC, with reclocking
- Fiber output: 1 x 12G-SDI LC (SMPTE 297), 1310 nm nominal wavelength, optical power -5 to 0.5 dBm
- Cable equalization (Belden 1694A): 65 m at 12 Gbps, 190 m at 3 Gbps, 405 m at 270 Mbps
- Audio: balanced analog, 25-pin D female connector, 4 channels in and 4 out, 24-bit converters
- Breakout cable: 4 female XLR inputs and 4 male XLR outputs, one analog channel per XLR
- Analog levels (via Mini-Config): +24, +18, +15 or +12 dBu at 0 dBFS
- Embedded audio: up to 16 channels, 24-bit 48 kHz (HD and above), 20-bit 48 kHz (SD); pass, remove or override
- Dimensions (w x d x h): 147.32 x 78.74 x 25.4 mm
- Weight: 0.3 kg
- Power: +5-16 V DC, 10 W, power supply included
- Operating temperature: 0 to 40 °C
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | 12G-AMA-T |
| Taric Code | 8517620050 |
