Aja Video Systems CRV44-S-NC1 Corvid 44 - 8-Lane PCIe 2.0, 4-Channel I/O independent raster, 4K capable, no cables, short bracket

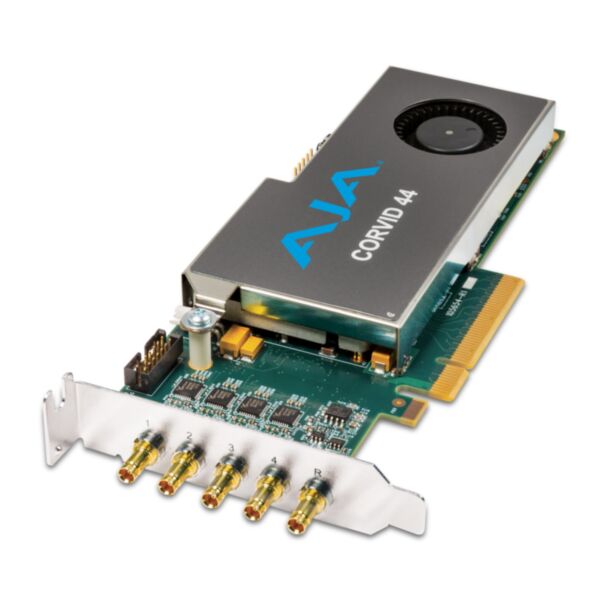

AJA Corvid 44 CRV44-S-NC1, Short Bracket, No Cables

The AJA Corvid 44 CRV44-S-NC1, Short Bracket, No Cables gives AJA Developer Partner applications access to up to four simultaneous SDI input or output streams on a single PCIe card, for a wide variety of medium-density applications. This version has a short (low-profile) bracket, with RS-422 available on an internal header, and is supplied without cables.

Each connection can be set programmatically as an input or output and can carry a different video format, provided all formats use the same clock timing; connections can also be linked for dual link or 4K/UltraHD formats. The card supports 4K and UltraHD high frame rate workflows at 48p, 50p and 60p, multiple 720p and 1080p inputs and outputs up to 50/60p, and ingest or output of up to 64 discrete audio channels.

Key features

• 4 x bidirectional 3G-SDI connections (DIN 1.0/2.3)
• 4K/UltraHD/2K/HD/SD up to 50/60p
• 16-channel embedded audio per connection, up to 64 channels in total
• RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit HFR workflows
• 2 x independent mixer/keyer widgets
• 4K closed caption support
• PQ, HLG and Dolby Vision support, HDR metadata capture and auto playback detection
• VPID signaling for SDR/HDR transfer characteristics, colorimetry and luminance
• Reference/LTC input (analog black burst or tri-level)
• Supports Apple silicon

Specifications

• Video formats: 4K and 2K up to 60p (incl. 47.95/48p), UltraHD up to 60p, HD 1080p/1080PsF/1080i/720p, SD 625i/525i
• SDI I/O: 3G-SDI (SMPTE 425), 1.5G-SDI single/dual link, 270 Mbps SDI
• Audio: 16-channel 24-bit SDI embedded, 48 kHz
• Reference: analog color black or HD tri-level sync
• Connectors: 4 x 3G-SDI DIN 1.0/2.3
• Power: 17 W typical, 20 W maximum
• Operating temperature: 0 to 40 °C
