Aja Video Systems IO-X3-R0 IO X3 - 2K/HD/SD 3G-SDI and HDMI Video I/O over Thunderbolt 3

AJA Io X3 2K/HD/SD 3G-SDI and HDMI Video I/O over Thunderbolt 3

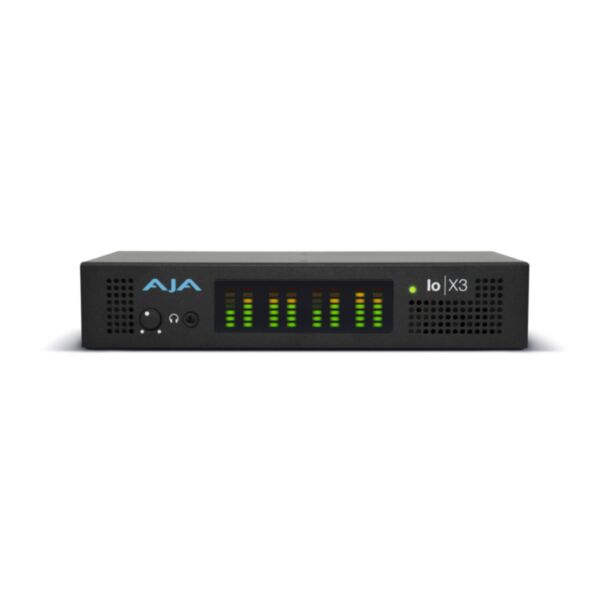

The AJA Io X3 is a portable Thunderbolt video I/O device with 3G-SDI, HDMI and audio connections for HDR or SDR SDI and HDMI workflows up to 2K 60p. It supports all major NLE applications, including Adobe Premiere Pro, Avid Media Composer and Apple Final Cut Pro, as well as streaming applications such as OBS Studio, vMix and Telestream Wirecast. Four bidirectional 3G-SDI BNC ports with 16-channel embedded audio allow multi-channel workflows, for example a four-camera program in OBS Studio, and the HDMI output can show a multiview of up to four channels on one screen.

It connects with a single Thunderbolt 3 cable, with a second Thunderbolt port for loop through to other devices. Analog audio I/O on a TASCAM-pinout DB-25 connector supports eight channels in, eight out or four in and four out, and a front 3.5 mm headphone jack with level control allows stereo monitoring. Reference input, LTC input and output and RS-422 machine control integrate the unit into larger productions. With AJA Control Room it supports HDR metadata capture and HDR auto playback detection. The compact design allows two Io X3 units to be rackmounted in 1RU. Power is supplied through a 4-pin XLR input from the included AC adapter or a battery.

Key features

• 2K/HD/SD I/O up to 50/60p
• 4 x bidirectional 3G-SDI BNC with 16-channel embedded audio
• HDMI I/O with 8-channel embedded audio
• 2 x Thunderbolt 3 ports with loop through
• Multi-channel support for OBS Studio, Wirecast, vMix and other applications
• YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
• PQ, HLG, HDR10 and Dolby Vision support, HDR metadata capture and auto playback detection
• Multiview output over HDMI for up to 4 channels
• 8-channel analog audio I/O on DB-25 (TASCAM pinout)
• Headphone jack with level control
• RS-422 VTR control, reference, LTC input and output
• Apple silicon support
• 4-pin XLR 12 V power input for AC or battery, AC adapter included

Notes

• DB-25 audio breakout cable not included

Specifications

• Video I/O: 4 x 3G-SDI BNC bidirectional, HDMI v1.4b input and output
• Formats: 2K, HD, SD up to 60p
• Audio: 16-channel SDI embedded, 8-channel HDMI embedded, 8-channel balanced analog (DB-25), 2-channel 3.5 mm headphone output
• LTC: 1 x BNC input, 1 x BNC output; reference: 1 x BNC
• Computer interface: 2 x Thunderbolt 3
• Dimensions (W x D x H): 209.6 x 159.51 x 42.16 mm
• Weight: 0.73 kg
• Power: 10-20 V, 23 W typical, 28 W max
