Aja Video Systems OG-12GDA-2X4 Dual 1x4 12G-SDI Distribution Amplifier, Dual Input Channels with 4x 12G-SDI Outputs, DashBoard Support
GTIN: 0812321032192
openGear card with two independent 1x4 12G-SDI distribution amplifiers: 2 inputs, 8 reclocked outputs, format agnostic from 270 Mbps to 12 Gbps, with HDR metadata pass-through.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

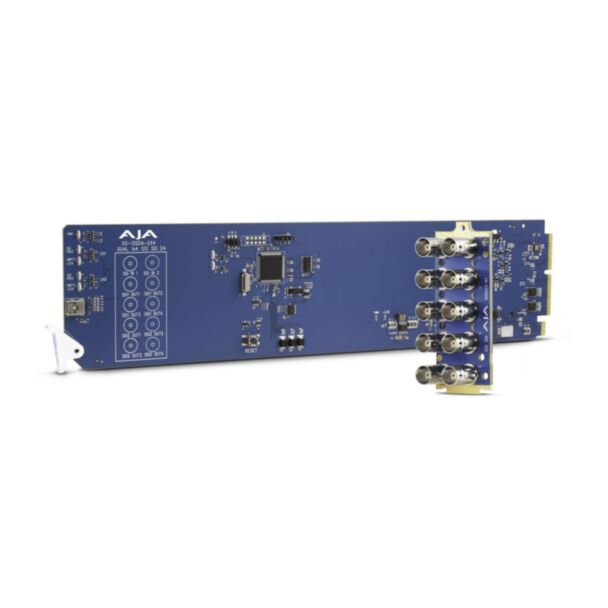

AJA OG-12GDA-2x4 openGear Dual 1x4 12G-SDI Distribution Amplifier
OG-12GDA-2x4 is an openGear 12G-SDI distribution amplifier with dual input channels: each incoming 12G-SDI signal is automatically equalised and reclocked to four 12G-SDI outputs. The dual-input design doubles the number of DAs in limited frame space. It passes SDI metadata including HDR, embedded audio and all ancillary data such as closed captions and timecode, and a 10x BNC rear connector module is included. It is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is configured, monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- Dual 1x4 12G-SDI distribution amplifiers
- 2x 12G-SDI BNC inputs, 8x non-inverting 12G-SDI BNC outputs
- Format agnostic, 270 Mbps to 12 Gbps
- Automatic input equalisation and output reclocking
- Passes HDR metadata, embedded audio, closed captions and timecode
- Input Present and SMPTE Lock LEDs
- Hot-swappable
Compatibility
- openGear frames OG-X-FR, OG-3-FR and DFR-8321
In the box
- 1 x OG-12GDA-2x4 card
- 1 x 10x BNC rear connector module
Specifications
- Inputs: 2x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
- Outputs: 8x 12G-SDI BNC, non-inverting
- Cable equalisation (Belden 1694A): 12 Gbps 45 m, 3 Gbps 140 m, 270 Mbps 365 m
- Slots: two per card
- Weight: 0.3 kg
- Power: 4.5 W max per card
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-12GDA-2X4 |
| Ean | 0812321032192 |
| Taric Code | 8471804000 |
