Aja Video Systems OG-3GDA-1X9 1x9 3G-SDI Reclocking DA, DashBoard Support
GTIN: 0812321031775
openGear 3G-SDI distribution amplifier: one input reclocked to nine outputs, format agnostic from 150 Mbps to 3 Gbps, with HDR metadata, audio and ancillary data pass-through.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

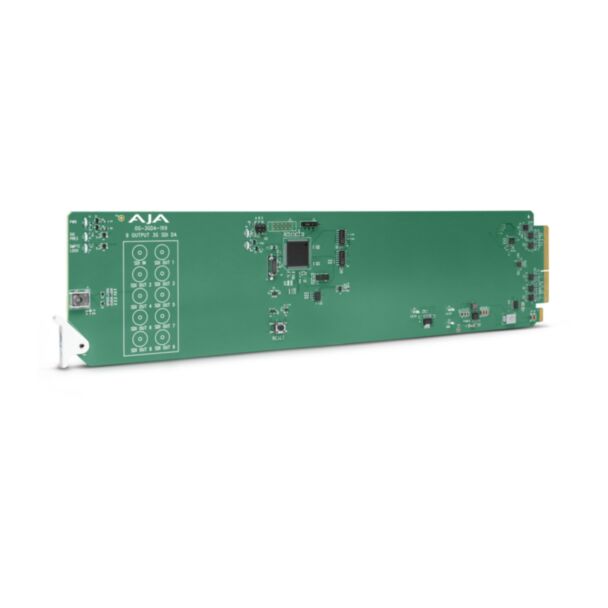

AJA OG-3GDA-1x9 openGear 1x9 3G-SDI Reclocking Distribution Amplifier
OG-3GDA-1x9 is an openGear 3G-SDI distribution amplifier. The incoming 3G-SDI signal is equalised, reclocked and distributed to nine 3G-SDI outputs, sending the same signal to multiple destinations at once. It passes SDI metadata including HDR, embedded audio and all ancillary data such as closed captions and timecode. It is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is configured, monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- 1x 3G-SDI BNC input, 9x 3G-SDI BNC outputs
- Format agnostic, 150 Mbps to 3 Gbps
- Automatic input equalisation and output reclocking
- Passes HDR metadata, embedded audio, closed captions and timecode
- Input Present and SMPTE Lock LEDs
- Hot-swappable
Compatibility
- openGear frames OG-X-FR, OG-3-FR and DFR-8321
Specifications
- Input: 1x 3G-SDI BNC, SMPTE-259/292/424
- Outputs: 9x 3G-SDI BNC (5 non-inverting)
- Cable equalisation (Belden 1694A): 3 Gbps 120 m, 1.5 Gbps 200 m, 270 Mbps 350 m
- Slots: two per card
- Weight: 0.3 kg
- Power: 2.5 W max per card
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-3GDA-1X9 |
| Ean | 0812321031775 |
| Taric Code | 8471804000 |
