Aja Video Systems OG-3GDA-2X4 2x4 or 1x8 3G-SDI Reclocking DA, DashBoard Support
GTIN: 0812321031768
openGear 3G-SDI distribution amplifier working as two 1x4 DAs or one 1x8 DA, with 8 reclocked outputs, format agnostic from 150 Mbps to 3 Gbps and HDR metadata pass-through.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

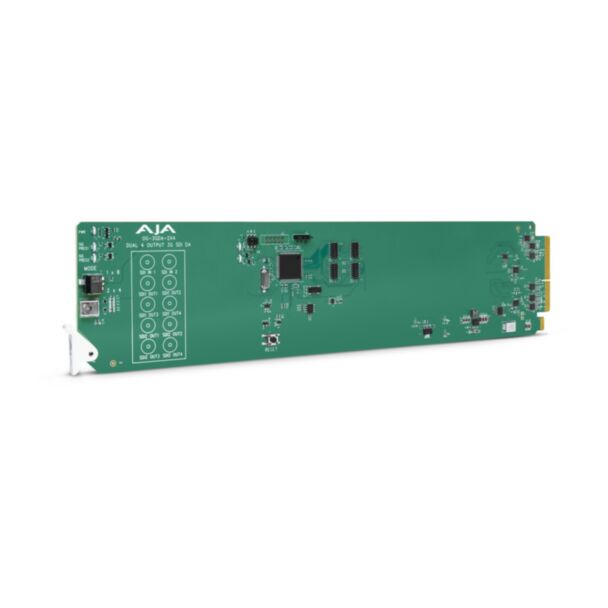

AJA OG-3GDA-2x4 openGear 2x4 or 1x8 3G-SDI Reclocking Distribution Amplifier
OG-3GDA-2x4 is an openGear 3G-SDI distribution amplifier. The incoming signals on its two input channels are automatically equalised and reclocked to four 3G-SDI outputs each, or the card can work as a single 1x8 DA to send one signal to eight destinations. The dual-input design doubles the number of DAs in limited frame space. It passes SDI metadata including HDR, embedded audio and all ancillary data, and a 10x BNC rear connector module is included. It is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is configured, monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- 2x4 or 1x8 distribution modes
- 8x 3G-SDI BNC outputs
- Format agnostic, 150 Mbps to 3 Gbps
- Automatic input equalisation and output reclocking
- Passes HDR metadata, embedded audio, closed captions and timecode
- Input Present and SMPTE Lock LEDs
- Hot-swappable
Compatibility
- openGear frames OG-X-FR, OG-3-FR and DFR-8321
In the box
- 1 x OG-3GDA-2x4 card
- 1 x 10x BNC rear connector module
Specifications
- Inputs: 1x 3G-SDI BNC (1x8 mode) or 2x 3G-SDI BNC (2x4 mode), SMPTE-259/292/424
- Outputs: 8x 3G-SDI BNC
- Cable equalisation (Belden 1694A): 3 Gbps 120 m, 1.5 Gbps 200 m, 270 Mbps 350 m
- Slots: two per card
- Weight: 0.3 kg
- Power: 2.6 W max per card
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-3GDA-2X4 |
| Ean | 0812321031768 |
| Taric Code | 8471804000 |
