Aja Video Systems U-TAP-HDMI-R0 U-TAP HDMI - HD/SD USB 3.0 capture device for Mac/Windows/Linux with HDMI input. Bus powered, no driver software necessary.

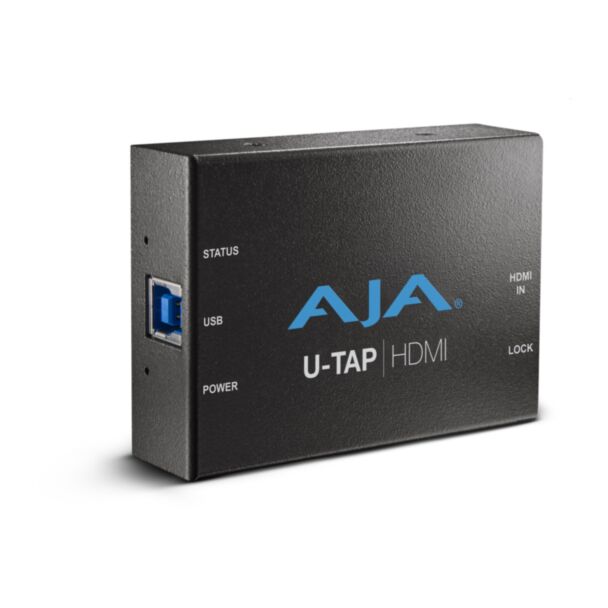

AJA U-TAP HDMI USB 3.0 HD/SD Capture Device

U-TAP HDMI is a USB 3.0 (USB 3.2 Gen 1) capture device that brings HDMI video into a laptop or workstation for use in a wide range of software, with no drivers to install, as it is supported directly by macOS, Windows and Linux. It captures HD and SD up to 1080p 60, including computer resolutions up to 1920x1080 and 1600x1200, and automatically scales video and conforms the aspect ratio to the application's requirements. It is smaller than a smartphone and bus-powered, so no power adapter is needed, and it has no fans or moving parts. It is suited to video conferencing, streaming, social media, gaming and other applications, and is compatible with a wide range of software as a UVC/UAC device on Mac, Windows and Linux.

Key features

• 1x HDMI 1.4a input with 2-channel embedded audio
• RGB/YCbCr 4:4:4 10/12-bit (raster and frame rate dependent)
• HD/SD capture up to 1080p 60 over USB
• 1x USB 3.0 (USB 3.2 Gen 1) connector
• YCbCr 4:2:2 10-bit workflows supported
• HD/SD and scaled USB rasters, with automatic scaling and aspect ratio conformity
• Configurable behaviour on loss of input signal
• UVC/UAC capture, no third-party driver required
• Bus-powered, silent, no fans or moving parts
• Supports macOS, Windows and Linux (Ubuntu/Rocky)

Specifications

• Video input: HDMI v1.4a, 24, 30 or 36 bits/pixel, RGB or YUV; computer formats from 640x480 to 1920x1080 at up to 60 Hz
• Audio input: 2-channel 24-bit HDMI embedded, 48 kHz
• Scaled USB rasters: from 176x144 to 1920x1080p at 7.5, 15, 25, 29.97, 30, 50, 59.94 and 60 fps
• Capture: 16 bits/pixel YUV; audio 2-channel 16-bit 48 kHz
• Host interfaces: USB 3.0 or later recommended; USB 2.0 and hubs may not supply enough power
• Size: 83.8 x 61 x 25.4 mm
• Weight: 0.2 kg
• Power: 5 V USB bus powered, 3.5 W max
• Operating temperature: 0 to 40 °C
