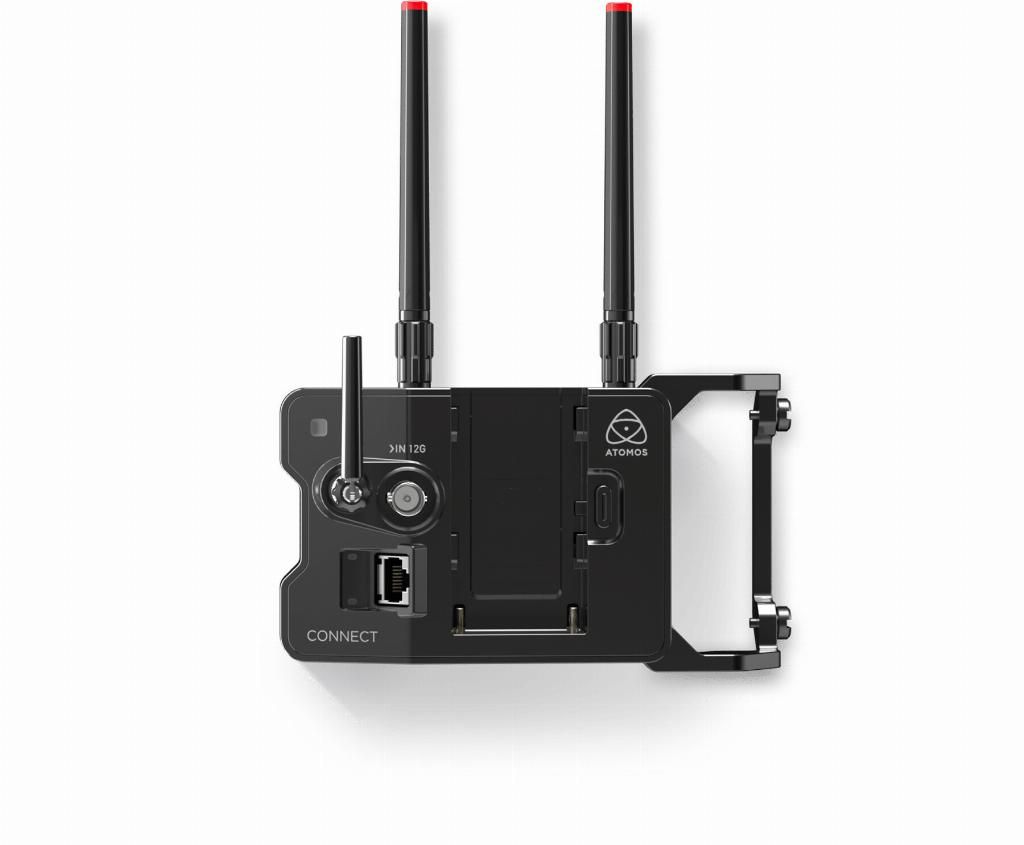

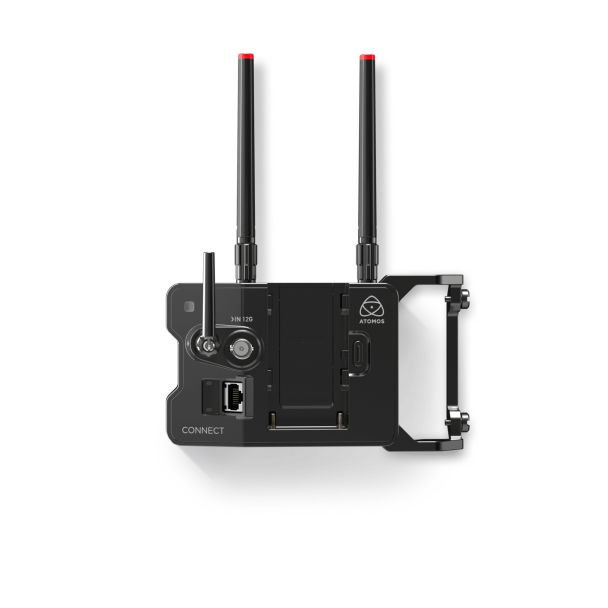

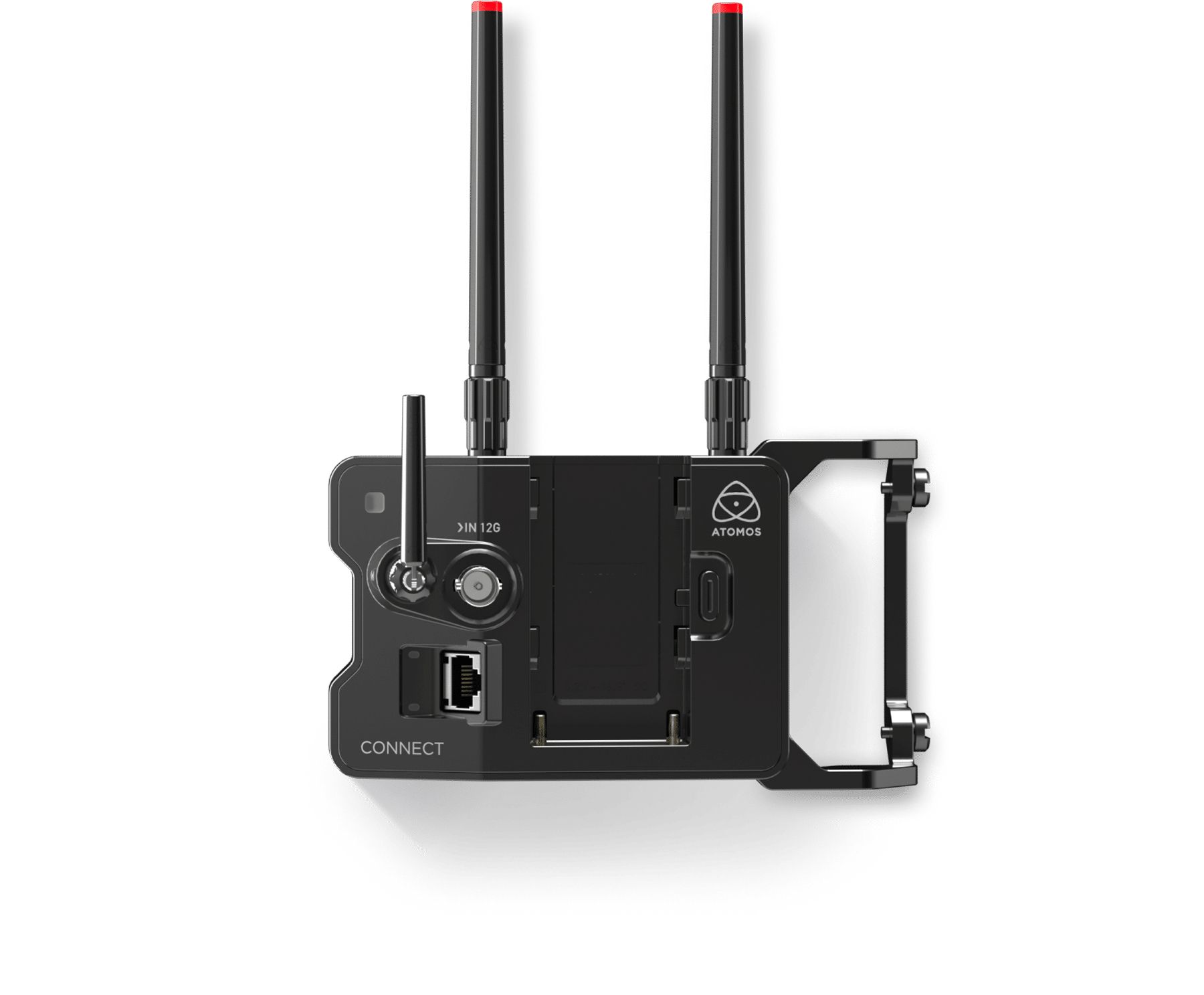

Atomos Connect Active video converter
GTIN: 0814164022712
Atomos Connect expansion module for Ninja and Ninja Ultra: 12G-SDI with SDI to HDMI cross-conversion, Wi-Fi 6 (6E with Ninja Ultra), 1GbE Ethernet, AirGlu wireless timecode and streaming.
Atomos Connect for Ninja and Ninja Ultra ATOMCON003
Atomos Connect fits to the rear of the Ninja and Ninja Ultra and upgrades their I/O with a 12G-SDI interface, SDI to HDMI cross-conversion, Wi-Fi 6 (6E with Ninja Ultra) and 1GbE Ethernet. The SDI input extends compatibility to a wide range of professional SDI-equipped cameras, in addition to the HDMI cameras already supported by the Ninja.
Built-in Atomos AirGlu technology adds wireless timecode, sync and control, so that multiple Atomos devices, compatible cameras, audio recorders and applications can be synchronized to the same timecode; it can also relay recording, battery and disk status to the server unit. Connect enables streaming to Facebook, Twitch, YouTube and custom RTMP/S services, camera to cloud workflows with Atomos Edit, RemoteView live sharing and control via the AtomRemote app over Bluetooth.
Key features
- 12G-SDI input for SDI-equipped cameras
- SDI input to HDMI output conversion
- Wi-Fi 6 (6E with Ninja Ultra) and 1GbE Ethernet
- AirGlu wireless timecode, sync and control
- Streaming to Facebook, Twitch, YouTube and custom RTMP/S
- Camera to cloud and Atomos Edit
- RemoteView live view sharing over the internet
- AtomRemote app control over Bluetooth
Compatibility
- Atomos Ninja, Ninja Ultra
Specifications
- Network: Wi-Fi 6 / 6E, 1 x RJ-45 Gigabit Ethernet
- Video: 12G-SDI
- Operating temperature: 0 - 40 °C
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Atomos |
| manufacturer code | ATOMCON003 |
| Ean | 0814164022712 |
| Modified on | 28-04-2022 |
| Product title | Atomos Connect Active video converter |
| Long Product Name | Wi-Fi 6, HDMI, SDI, 1GbE |
| Product specifications | FeaturesConverter type* Active video converter Internal No Product colour Black Housing material Acrylonitrile butadiene styrene (ABS) Ethernet LAN Yes Ethernet LAN data rates 1000 Mbit/s Compatible products Ninja V, Ninja V+ VideoBandwidth 1 Gbit/s Ports & interfacesHost interface* SDI Output interface* RJ-45 RJ-45 ports quantity 1 PowerInput voltage 6.2-16.8 V Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 150 mm Depth 88 mm Height 53.5 mm Weight 230 g Packaging dataCables included Audio (3.5mm) |
| Essential qualities |
|
| Converter type | Active video converter |
| Host interface | SDI |
| Output interface | RJ-45 |
