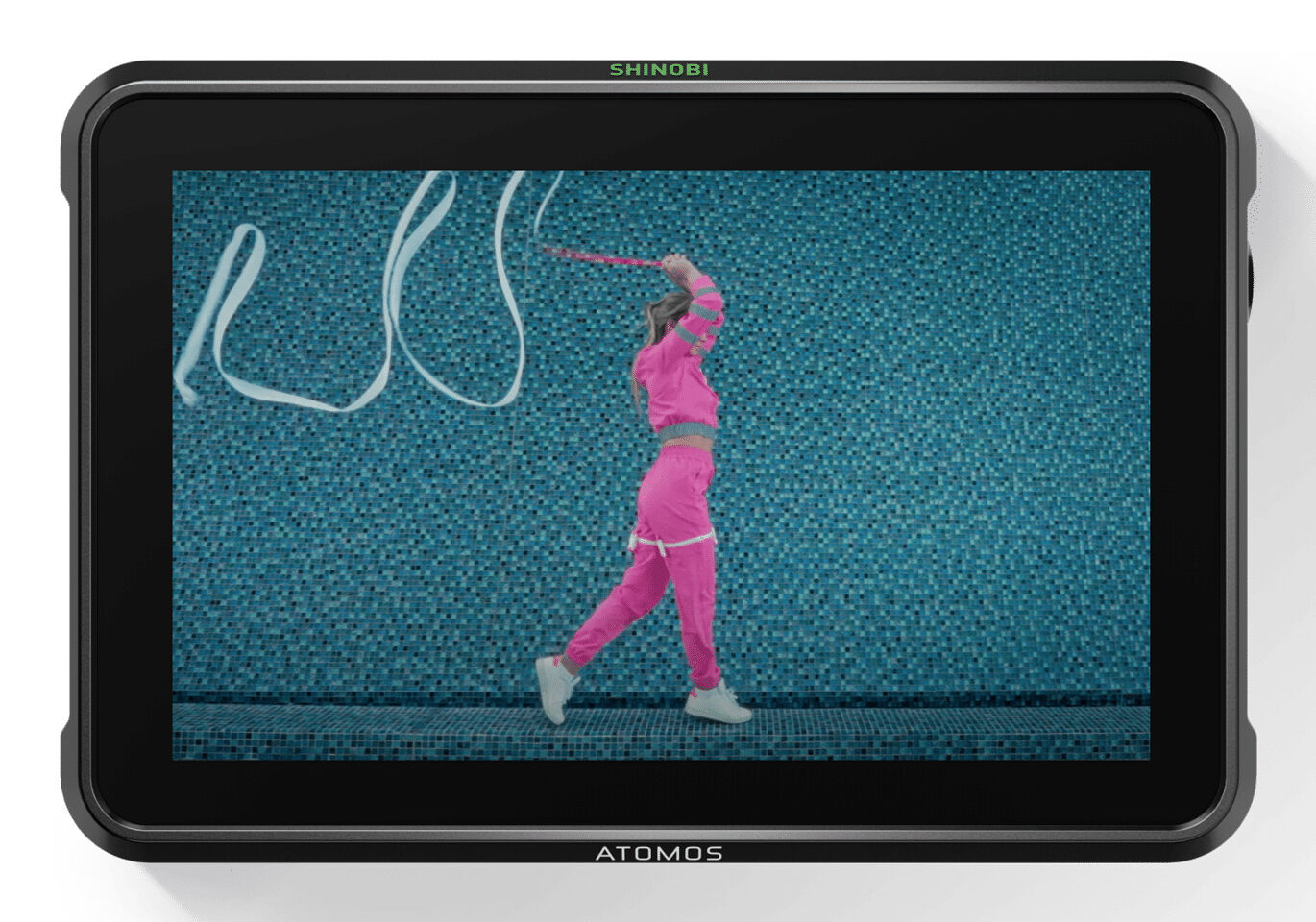

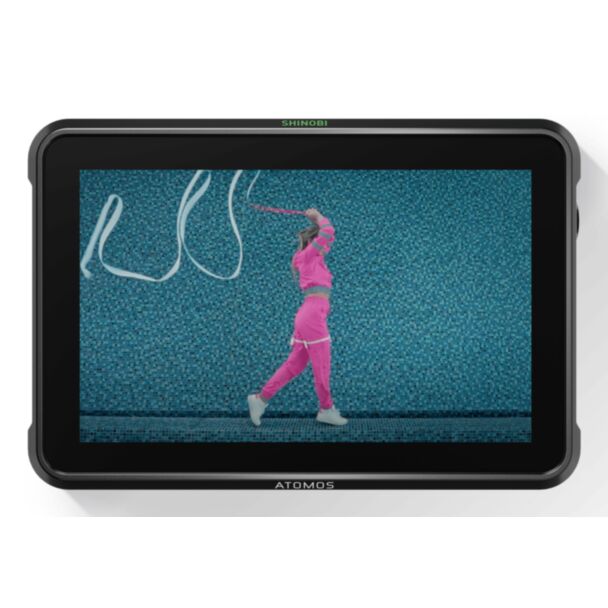

Atomos Shinobi 7 17.8 cm (7") Black 1920 x 1080 pixels
GTIN: 0814164022576
Atomos Shinobi 7 7" high-brightness HDR monitor with HDMI and 3G-SDI inputs, 2200 nit, 10+ stops of dynamic range, AtomOS monitoring tools and camera control via touchscreen.
Atomos Shinobi 7 7" HDR Monitor ATOMSHB002
The Atomos Shinobi 7 is a 7-inch monitor for use in the brightest environments, monitoring signals up to 4Kp60 via HDMI or 2Kp60 via 3G-SDI. It suits directors, DPs and focus pullers, and can be used as a program or preview display for video switchers. The screen displays 10+ stops of dynamic range in real time from Log/PQ/HLG signals, with a calibrated peak brightness of 2200 nits.
The touchscreen gives direct access to camera features such as iris, white balance, shutter angle and ND; with the optional Atomos USB-C to serial cable the Z Cam E2 series is supported out of the box. AtomOS includes focus peaking, zoom, zebra, false color, frame guides, waveform, RGB parade, vectorscope, the multi-view Analysis mode, 3D/1D LUT support (up to eight custom LUTs via SD card) and anamorphic desqueeze.
Key features
- 7" display with 2200 nit calibrated peak brightness
- HDMI up to 4Kp60, 3G-SDI up to 2Kp60
- 10+ stops of dynamic range from Log/PQ/HLG
- Camera control from the touchscreen
- Scopes, Analysis view, LUTs and anamorphic desqueeze
- Dual battery slots
- USB and RJ45 ports for updates and new features
In the box
- HDMI cable
- AC adapter
- Manual
Specifications
- Display: 7" IPS, 325 ppi
- Inputs: HDMI 2.0, 3G-SDI
- Audio: 3.5 mm headphone output
- Storage: SD card slot (LUTs)
- Input voltage: 6.2 - 16.8 V
- Dimensions: 198 x 133 x 39 mm
- Weight: 577 g
| Product Condition | New |
|---|---|
| Manufacturer | Atomos |
| manufacturer code | ATOMSHB002 |
| Ean | 0814164022576 |
| Product colour | Black |
| Modified on | 18-06-2024 |
| Product title | Atomos Shinobi 7 17.8 cm (7") Black 1920 x 1080 pixels |
| Long Product Name | 7” 1920x1080, 16:10, 3.5mm, HDMI, 3G SDI, 198 x 133 x 39 mm, 577 g |
| Product specifications | DisplayDisplay diagonal* 17.8 cm (7") Display resolution* 1920 x 1080 pixels Touchscreen* No Display technology IPS Pixel density 325 ppi Aspect ratio 16:10 FeaturesSupported video modes 720p, 1080p Audio sampling rate 10 bit DesignProduct colour* Black Housing material Acrylonitrile butadiene styrene (ABS), Plastic, Polycarbonate (PC) StorageNumber of memory slots 1 Compatible memory cards SD Ports & interfacesHDMI ports quantity 1 HDMI version 2.0 Headphone out Yes PowerInput voltage 6.2 - 16.8 V Power supply type* Battery Weight & dimensionsWidth 198 mm Depth 39 mm Height 133 mm Weight 577 g Packaging contentCables included HDMI AC adapter included Yes Manual Yes |
| Essential qualities |
|
| Display diagonal | 17.8 cm (7") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| Power supply type | Battery |
