Atomos Shogun Ultra 17.8 cm (7") Black 1920 x 1200 pixels LED backlight Touchscreen

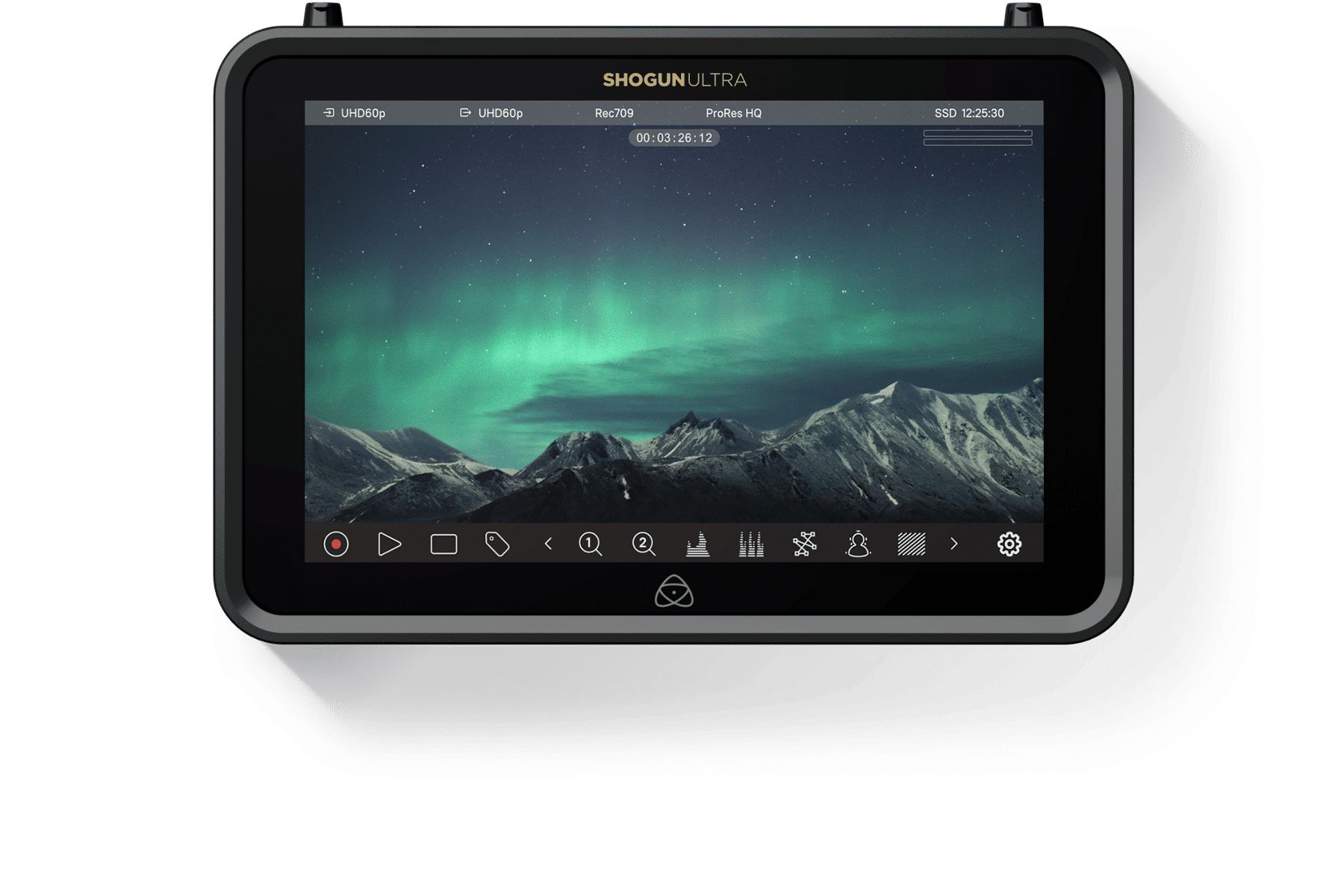

Atomos Shogun Ultra 7" Monitor-Recorder ATOMSHGU01

The Atomos Shogun Ultra is a 7-inch monitor-recorder for HDMI mirrorless and SDI cinema cameras, with enhanced camera to cloud connectivity. Used conventionally, it offers a 2000-nit SuperAtom IPS HDR touchscreen, monitoring tools and both HDMI and 12G-SDI with cross-conversion; with its wireless and network capabilities it gives access to cloud workflows such as camera to cloud, Atomos Edit and streaming to Facebook, Twitch, YouTube and custom RTMP/S services.

It captures RAW inputs up to 8K at 30fps, 6K at 60fps and 4K at 30fps, and can record ProRes RAW up to 4K 60p while simultaneously recording HD 60p H.265. Apple ProRes, ProRes RAW, H.265 and DNx are included; NDI HX2 TX/RX is a paid option. Filenames, timecode and record triggers are matched automatically from ARRI, Canon, RED and Sony cameras via SDI and from the Nikon Z9 via HDMI. AtomOS 11 adds SegmentPro, EL Zone System exposure and ARRI False Color. The aluminium frame weighs 730 g and has anti-rotation 3/8"-16 mount points, with a 1/4"-20 adapter supplied.

Key features

• 7" SuperAtom IPS touchscreen, 1920 x 1200, 2000 nits
• HDMI and 12G-SDI with SDI/HDMI cross-conversion
• RAW up to 8Kp30 and 6Kp60
• Dual recording: ProRes RAW 4Kp60 + HD H.265
• Wi-Fi 6E and GigE, AirGlu RF and BT, AtomRemote app
• Camera to cloud, Atomos Edit, RemoteView and streaming
• Automatic camera filename matching (ARRI, Canon, RED, Sony, Nikon Z9)

Specifications

• Display: 7" IPS capacitive touchscreen, 1920 x 1200, 16:10, 325 ppi
• Brightness: 2000 nits
• Video: HDMI, 12G-SDI
• Network: Wi-Fi 6E, Gigabit Ethernet
• Power: NP battery slot, 2.1 mm locking DC input
• Operating temperature: 0 - 40 °C
• Dimensions: 198 x 133 x 40 mm
• Weight: 730 g
