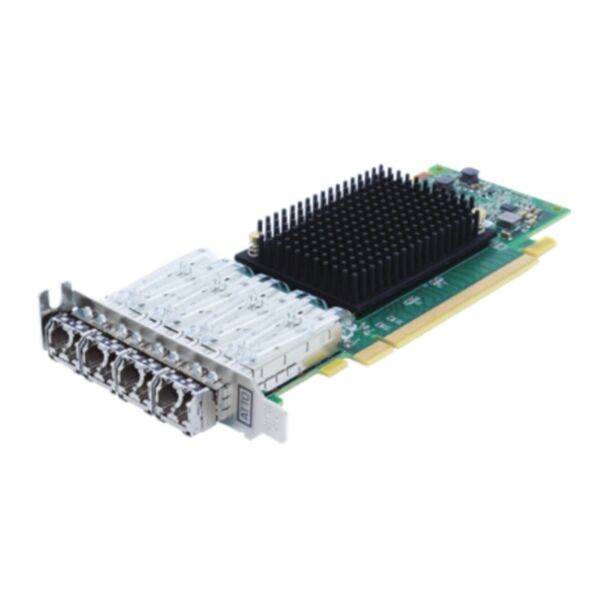

ATTO CTFC-644E-000 Quad Port 64Gb Gen 7 FC to x16 PCIe 4.0 Host Bust Adapter, Low Profile, LC SFP+ module(s) included

ATTO Celerity FC-644E 64Gb Quad-Port Gen 7 Fibre Channel Adapter CTFC-644E-000

The ATTO Celerity FC-644E is a quad-channel 64Gb Gen 7 Fibre Channel host bus adapter for x16 PCIe 4.0, in low profile format, with 64Gb optical LC SFP+ modules included. Celerity Gen 7 HBAs provide high-performance SAN storage connectivity for physical and virtual infrastructures, including data centres, tape streaming and backup, rich content delivery and server clustering.

ATTO Advanced Data Streaming (ADS) technology controls the acceleration of data transfers for consistent performance, while MultiPath Director provides multiple paths to storage with load balancing and failover. The adapter auto-negotiates to 64Gb, 32Gb and 16Gb devices and is managed through ATTO360 Storage, ATTO ConfigTool and command line tools.

Key features

• Four 64Gb Fibre Channel ports
• Up to 6400 MB/s per channel, 25.6 GB/s maximum transfer rate
• Auto-negotiation to 64Gb, 32Gb and 16Gb devices
• ATTO Advanced Data Streaming (ADS) technology
• MultiPath Director: load balancing and failover
• NVMe over Fabrics (FC-NVMe), SR-IOV, NPIV and Virtual Fabric support
• Trunking (port aggregation) with Brocade switches
• Silicon Root of Trust for firmware authentication
• Point-to-point and direct fabric/switch attach
• ATTO360 Storage, ConfigTool and command line management tools

Compatibility

• Windows, Windows Server
• Linux
• macOS
• illumos
• VMware
• FreeBSD

Notes

• ATTO-branded SFP modules must be used

Specifications

• Model: CTFC-644E-000
• Ports: 4 x 64Gb Fibre Channel
• Host interface: x16 PCIe 4.0
• Form factor: low profile
• Maximum transfer rate: 25.6 GB/s
• Connectivity: 64Gb optical LC SFP+ modules (included)
• Buffer credits: 80
• Dimensions: 6.595" x 2.709" (length x height)
• Operating temperature: 0-55 °C
