Atto ESAH-12F0-GT0 interface cards/adapter PCIe
12Gb/s 16-port external SAS/SATA host adapter for PCIe 4.0 x8, with four mini-SAS HD SFF-8644 connectors, for large capacity external direct attached storage.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

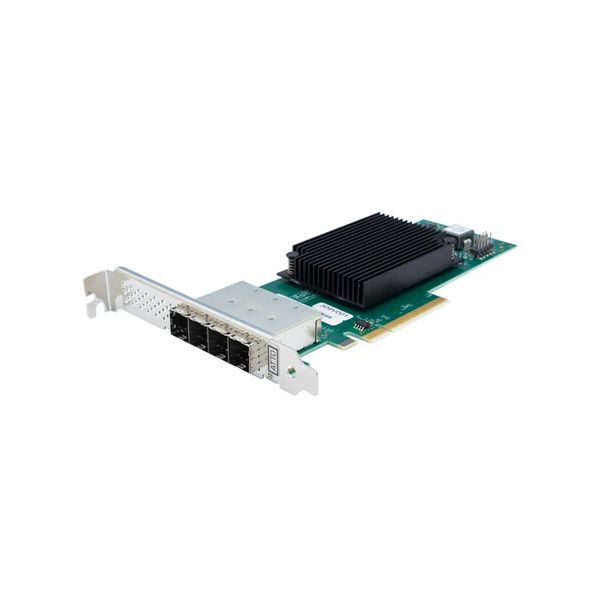

ATTO ExpressSAS H12F0 GT 16-Port External 12Gb SAS/SATA Adapter ESAH-12F0-GT0
The ATTO ExpressSAS H12F0 GT is a 12Gb 16-port external SAS/SATA to PCIe 4.0 adapter for large capacity external direct attached storage that requires many connections to and from the host CPU. Four external mini-SAS HD (x4) SFF-8644 connectors connect SAS and SATA enclosures, with backward compatibility with 6Gb/s and 3Gb/s targets. It is suited to streaming and transactional storage environments such as enterprise data centers, cloud computing, digital forensics, database applications, video on demand, broadcast and financial trading systems.
Key features
- 16 external ports on 4 mini-SAS HD (x4) SFF-8644 connectors
- 12Gb/s SAS/SATA support
- Backward compatible with 6Gb/s and 3Gb/s SAS/SATA targets
- x8 mechanical and electrical PCIe 4.0
- Low-profile form factor
- Supports macOS, Windows, Linux, VMware, FreeBSD and illumos
- NUMA support for high-performance multiprocessor applications
- WriteStop available for specialized data security applications for OEMs
- RoHS compliant
| Product Condition | New |
|---|---|
| Manufacturer | Atto Technology |
| manufacturer code | ESAH-12F0-GT0 |
| Essential qualities |
|
| Host interface | SAS |
| Output interface | PCIe |
