Atto ThunderLink NS 5102 interface cards/adapter QSFP28
ATTO ThunderLink adapter from dual Thunderbolt 5 to two 100Gb Ethernet ports (QSFP28 LC optical), with two QSFP28 optical modules included; macOS, Windows and Linux support.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
ATTO ThunderLink 5102 Thunderbolt 5 to Dual 100Gb Ethernet Adapter TLNS-5102-D00

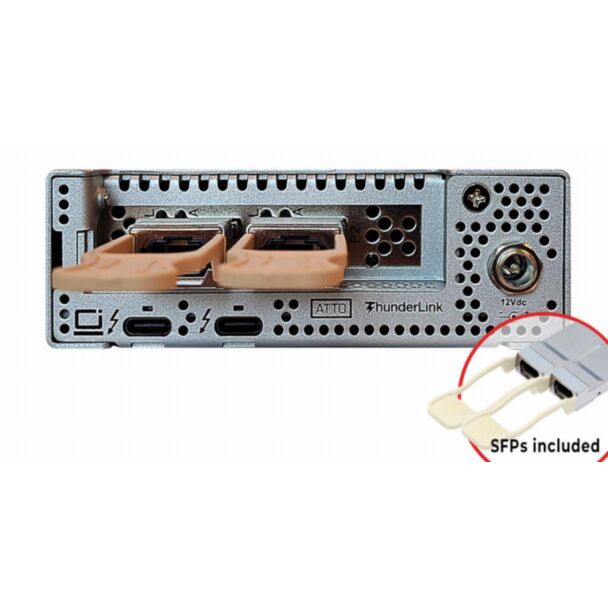

The ATTO ThunderLink model 5102 is an adapter with two Thunderbolt 5 ports (up to 80Gb/s, compatible with Thunderbolt 4/3) that connects a Thunderbolt computer to two 100Gb Ethernet ports (QSFP28 LC optical). It is supplied with two QSFP28 optical modules. ATTO ThunderLink adapters deliver high-performance links between Thunderbolt and enterprise-class storage and networks, with DisplayPort and device daisy-chain support on the Thunderbolt ports.
Exclusive ATTO Advanced Data Streaming (ADS) technology manages data transfers for consistent performance. The adapter has a Kensington security slot and supports macOS, Windows and Linux.
Key features
- Dual-port 100Gb Ethernet, QSFP28 LC optical
- Low profile form factor
- TCP, UDP and IPv4 checksum offloading, IPsec offloading and Tx/TCP segmentation offloading
- DisplayPort and device daisy-chain support
- ATTO Advanced Data Streaming (ADS) technology
- Kensington security slot
- RoHS compliant
Compatibility
- macOS
- Windows
- Linux
Notes
- US version: supplied with 110V power cord
In the box
- ATTO ThunderLink adapter
- Two QSFP28 optical modules
- 110V power cord
Specifications
- Model: TLNS-5102-D00
- Host interface: two Thunderbolt 5 ports (up to 80Gb/s, compatible with Thunderbolt 4/3)
- Network/storage interface: two 100Gb Ethernet ports (QSFP28 LC optical)
| Product Condition | New |
|---|---|
| Manufacturer | Atto Technology |
| manufacturer code | TLNS-5102-D00 |
| Essential qualities |
|
| Host interface | Thunderbolt 5 |
| Output interface | QSFP28 |
