Blackmagic Streaming Encoder 4K
Professional H.264 and H.265 encoder for streaming in HD or Ultra HD over SRT or RTMP to platforms like YouTube. Features 12G-SDI input with standards conversion, USB webcam output, and monitoring output.
Professional H.264 and H.265 encoder for streaming in HD or Ultra HD over SRT or RTMP to platforms like YouTube. Features 12G-SDI input with standards conversion, USB webcam output, and monitoring output.
Blackmagic Streaming Encoder 4K
The Blackmagic Streaming Encoder 4K is a standalone professional streaming processor designed to broadcast live video in H.264 or H.265, supporting both HD and Ultra HD resolutions. It supports SRT and RTMP protocols for seamless streaming to platforms such as YouTube, Facebook, X, and others. The device features a 12G-SDI input with standards conversion for compatibility with a wide range of sources, along with a dedicated SDI monitoring output. A USB webcam output allows for easy integration with video conferencing and streaming applications. For network
connectivity, users can choose between the built-in Ethernet port or mobile data via a connected 4G or 5G smartphone using USB-C.
The Blackmagic Streaming Encoder 4K is a standalone professional streaming processor designed to broadcast live video in H.264 or H.265, supporting both HD and Ultra HD resolutions. It supports SRT and RTMP protocols for seamless streaming to platforms such as YouTube, Facebook, X, and others. The device features a 12G-SDI input with standards conversion for compatibility with a wide range of sources, along with a dedicated SDI monitoring output. A USB webcam output allows for easy integration with video conferencing and streaming applications. For network
connectivity, users can choose between the built-in Ethernet port or mobile data via a connected 4G or 5G smartphone using USB-C.

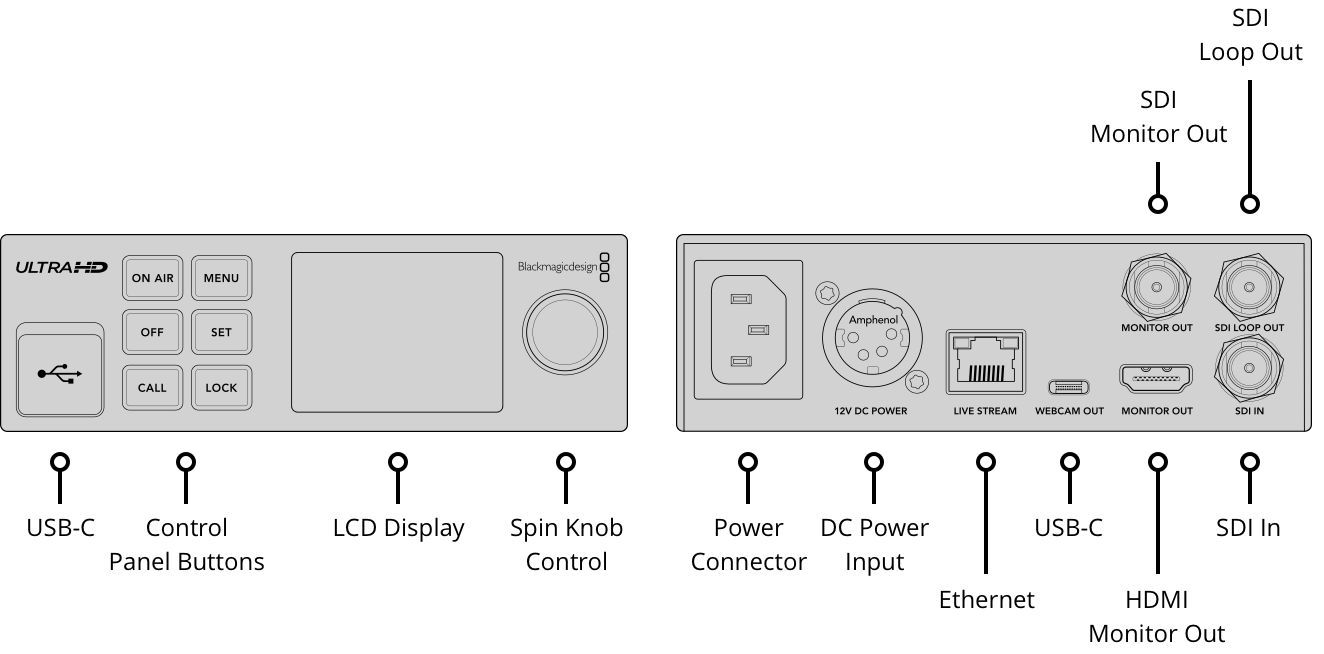

Connections
| SDI Video Inputs | 1 |
| SDI Loop Outputs | 1 |
| SDI Monitoring Outputs | 1 |
| SDI Rates | 1.5G, 3G, 6G, 12G |
| HDMI Monitoring Outputs | 1 |
| SDI Audio Inputs | 16 embedded audio channels |
| SDI Audio Outputs | 16 embedded audio channels on Loop Out |
| HDMI Audio Outputs | 2 embedded audio channels on Monitor Out |
| Webcam Output | 1 x USB-C up to 2160p60 |
| Ethernet | BASE-T 10/100/1000 for streaming, setup, and software updates |
Video Standards
| HD Video Input Standards | 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98–60, PsF23.98–30 |
| Ultra HD Video Input Standards | 2160p23.98–60 |
| SDI Compliance | SMPTE 259M, 292M, 296M, 424M, 425M A/B, 2081‑1/10, 2082‑1/10, 2084, 2108‑1 |
| Input Color Space | Rec. 709, Rec. 2020 |
| 3G SDI | Auto-detection of Level A or B |
| Monitoring Output Standards (SDI/HDMI) | 1080p50/59.94/60 |
| Streaming Video Standards | 720p25/30/50/60, 1080p23.98–60, 2160p23.98–60 |
Streaming
| Direct Streaming | Supports live streaming via Ethernet using RTMP (H.264) and SRT (H.264/H.265) |
| Closed Captions | Supports CEA-608 and CEA-708 closed captions in live RTMP streams |
| Timecode | Supports source timecode via RTMP and SRT |
Control
| Control Panel | Built-in with 6 buttons, knob, and 2.2" color display |
| Device Control | Front panel, USB-C or Ethernet |
| External Control | Supports remote camera control, color correction, tally, and talkback. REST API over Ethernet |
Display
| Display | Built-in 2.2" LCD for video, audio, and settings menu |
Software
| Compatible Services | Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza |
Operating Systems
| macOS | macOS 13.0 Ventura, macOS 14.0 Sonoma or later |
| Windows | Windows 10 64-bit, Windows 11 |
| Linux | Linux |
| Chrome OS | Chrome OS |
Power Requirements
| Power Supply | 1 x internal 100-240V AC |
| DC Power Input | 1 x 4-pin XLR +12V for external sources or batteries |
| Power Consumption | 25W |
Installation
| Installation | 1/3 RU width, 1 RU height |
Environmental Specifications
| Operating Temperature | 0° to 40° C |
| Storage Temperature | -20° to 45° C |
| Relative Humidity | 0% to 90% non-condensing |
Included Items
| Package Contents | Blackmagic Streaming Encoder 4K, welcome wallet with QR code for software download |
Warranty
| Manufacturer Warranty | Limited 3-year warranty provided by the manufacturer |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKWEB/D/SED4K |
| Ean | 9338716010046 |
