Blackmagic Design Blackmagic URSA Cine 12K LF 100G + EVF

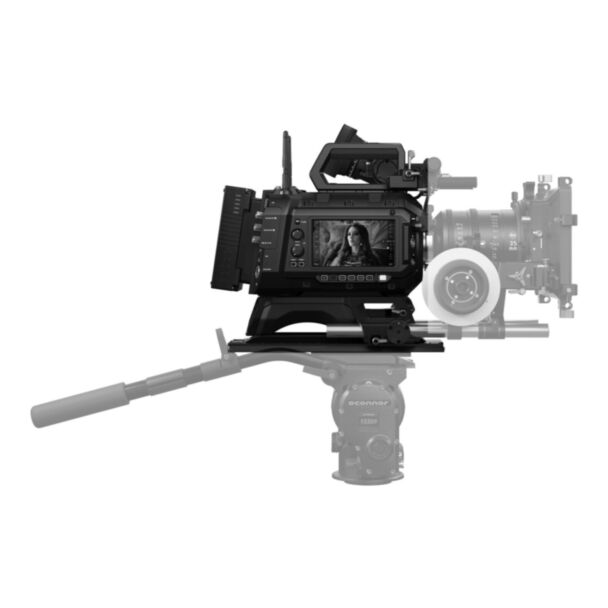

Blackmagic URSA Cine 12K LF 100G + EVF

Blackmagic URSA Cine 12K LF 100G is the 100G Ethernet model of the URSA Cine 12K large format digital film camera. Its much faster 100G Ethernet port carries SMPTE 2110 live video at very high frame rates, and with the B4 lens mount for broadcast lenses it can deliver up to 240 fps, so your main cameras can also be high frame rate cameras for live sports and replay. You keep the large format RGBW 36 x 24 mm sensor and 16 stops of dynamic range. This kit includes the Blackmagic URSA Cine EVF, a 1920 x 1080 OLED electronic viewfinder (6.22 million dots) with 4 element glass diopter (-5 to +5), for handheld and outdoor shooting.

Key features

• Large format RGBW sensor, 35.64 x 23.32 mm, 12,288 x 8040 (12K 3:2 open gate), 16 stops of dynamic range
• 100G Ethernet (QSFP28) for SMPTE 2110 live video and high frame rate live production
• Up to 240 fps with the URSA Cine Mount B4 (4.6K B4 crop) for broadcast lenses; up to 100 fps at 12K 17:9 and 144 fps at 8K / 4K 3:2 open gate
• Built-in ND filters: clear, 2-stop, 4-stop and 6-stop IR ND
• Two 5 inch 1920 x 1080 touchscreens (1500 nits) and a camera status screen
• Records Blackmagic RAW (Constant Bitrate and Constant Quality) with simultaneous H.264 1080p proxies
• Works with the URSA Cine Studio Viewfinder for a complete studio camera solution
• SRT and RTMP streaming, FTP, SMB file sharing, web media manager and Blackmagic Cloud synchronization

Lens mount and media

• PL lens mount, interchangeable with the lockable URSA Cine EF mount included; lens data from compatible PL lenses and control of compatible EF lenses
• Records to the included Blackmagic Media Module 8TB, which also works with Blackmagic Media Dock

Connections

• 1 x 100G QSFP28 (SMPTE 2110 video in and out, SMB, Cloud upload, camera control, streaming)
• 2 x SDI video outputs (1.5G, 3G, 6G, 12G)
• 2 x XLR analog audio inputs (mic, line or AES, phantom power) and a 3.5mm headset jack; integrated stereo microphone
• Tri-Sync / Black Burst and timecode reference; PTP clock and timecode over 2110 IP
• Viewfinder USB-C with video, power, camera control and locking connector; 2 x USB-C monitor ports and 2 x USB-C expansion ports
• 7-pin Lemo EXT and 3-pin Fischer RS accessory connectors
• 8-pin Lemo compatible +24V DC power input

Formats and standards

• Recording formats from 12K (12,288 x 8040) down to 4K (4096 x 2680) and a 4608 x 2592 B4 crop, in multiple aspect ratios
• Blackmagic RAW 3:1, 5:1, 8:1, 12:1, 18:1 and Constant Quality Q0, Q1, Q3, Q5, plus H.264 proxy 1920 x 1080
• SMPTE 2110-20, 2110-21, 2110-30, 2110-40; PTP (IEEE 1588-2008), NMOS IS-04 and IS-05
• Optional Blackmagic IP10 codec for 2160p59.94 and 2160p60 as 2110 IP video

Software and operating systems

• URSA Cine Blackmagic OS, Blackmagic Camera Setup, Blackmagic RAW Player, QuickLook plugin and SDK
• DaVinci Resolve Studio for Mac and Windows, with activation key
• macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 11

In the box

• Blackmagic URSA Cine 12K LF 100G camera with PL lens mount
• Blackmagic Media Module 8TB and Media Module Case
• Blackmagic URSA Cine Handle and bolts, Top Rod Mount, Baseplate 19 and Battery Plate B Mount
• Blackmagic URSA Cine EVF with rotating bracket and 19mm carbon fibre rod, bracket rod mount, EVF Extension, two short 15mm carbon fibre rods, USB viewfinder cables, rubber eyecup and fabric eye chamois
• Rubber caps for connectors, WiFi antennas, plastic folding screen hood for the 5 inch LCD
• Blackmagic URSA Cine Mount EF and mount screws, EF and PL body caps
• Blackmagic URSA Cine 24V 250W power supply
• DaVinci Resolve Studio with activation key, welcome wallet with QR code, sticker
• Pelican 1560 case with custom foam
