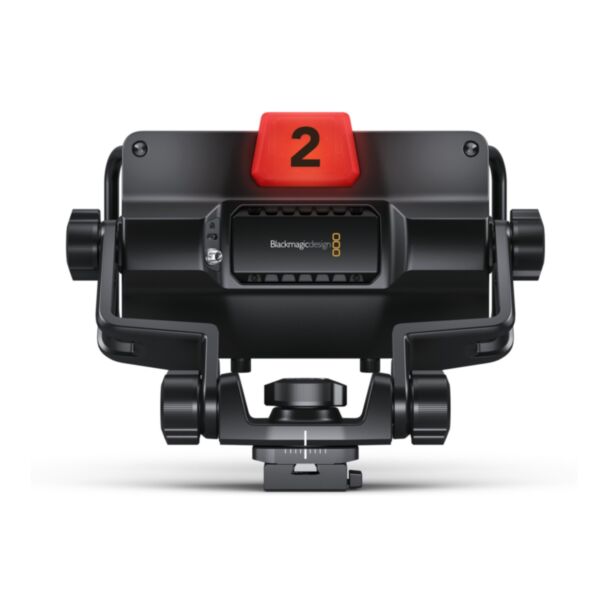

Blackmagic URSA Cine Studio Viewfinder

Blackmagic URSA Cine Studio Viewfinder is a large 7 inch HDR touchscreen viewfinder with full camera control, designed for URSA Cine cameras in live production environments. It combines a high brightness touchscreen with customizable function buttons and physical knobs for brightness, contrast and focus peaking. On screen overlays include focus peaking, frame guides, histograms and more, with touchscreen access to all camera settings. It includes a removable sunshade and connects with a single USB-C cable.

Key features

• 7 inch 1920 x 1200 high brightness LCD capacitive touchscreen, 2000 nits, up to 60 fps
• Full touchscreen control of the camera: monitor overlays, frame rate, shutter, iris, timecode, ISO, white balance, media, audio and menus
• Dedicated brightness, contrast and peaking knobs, push button dial and F1, F2, F3 assignable function buttons
• Detachable and foldable sunshade
• Built-in grab handles and articulated yoke with variable tension pivots for forward, backward, up, down, pan and tilt adjustment
• Large talent facing LED tally light with customizable perspex camera numbers
• Quick release VLock bracket, mounts with 2 x 1/4-20 screws

Connections and power

• USB-C with locking connector for video, power, metadata, camera control and software updates
• 5.5mm locking barrel socket for +12V to +17V DC supplementary power

Compatible cameras

• Blackmagic URSA Cine 12K LF 100G and 12K LF
• Blackmagic URSA Cine 17K 65
• Blackmagic URSA Cine Immersive 100G and Immersive

In the box

Blackmagic URSA Cine Studio Viewfinder, monitor mounting plate and welcome wallet with QR code for software download.
