Blackmagic Design DeckLink IP 100G
GTIN: 9338716009996
In stock
SKU
BMD-BDLKIPHIP/100G
Special Price €2,001.17 €1,640.30 Regular Price €2,128.90
DeckLink IP 100G
DeckLink IP 100G is a high-speed solution designed for the simultaneous capture and playback of 8 Ultra HD video channels over 100G Ethernet. It features dual 100G QSFP Ethernet ports to ensure full redundancy.
DeckLink IP 100G is a high-speed solution designed for the simultaneous capture and playback of 8 Ultra HD video channels over 100G Ethernet. It features dual 100G QSFP Ethernet ports to ensure full redundancy.
DeckLink IP 100G
DeckLink IP 100G provides 8 channels of simultaneous Ultra HD video capture and playback for SMPTE 2110 IP broadcast systems, using dual QSFP28 fiber Ethernet connections to ensure full redundancy. Designed for professional production environments, the card supports ultra-high quality formats including Apple ProRes, DNxHD, and even 10-bit uncompressed video.
With multirate compatibility, DeckLink IP 100G supports all standard video formats in SD, HD, and Ultra HD up to 2160p120, making it ideal for high-performance broadcast workflows that demand continuous reliability.
Connections and Video Standards
| Feature | Detail |
|---|---|

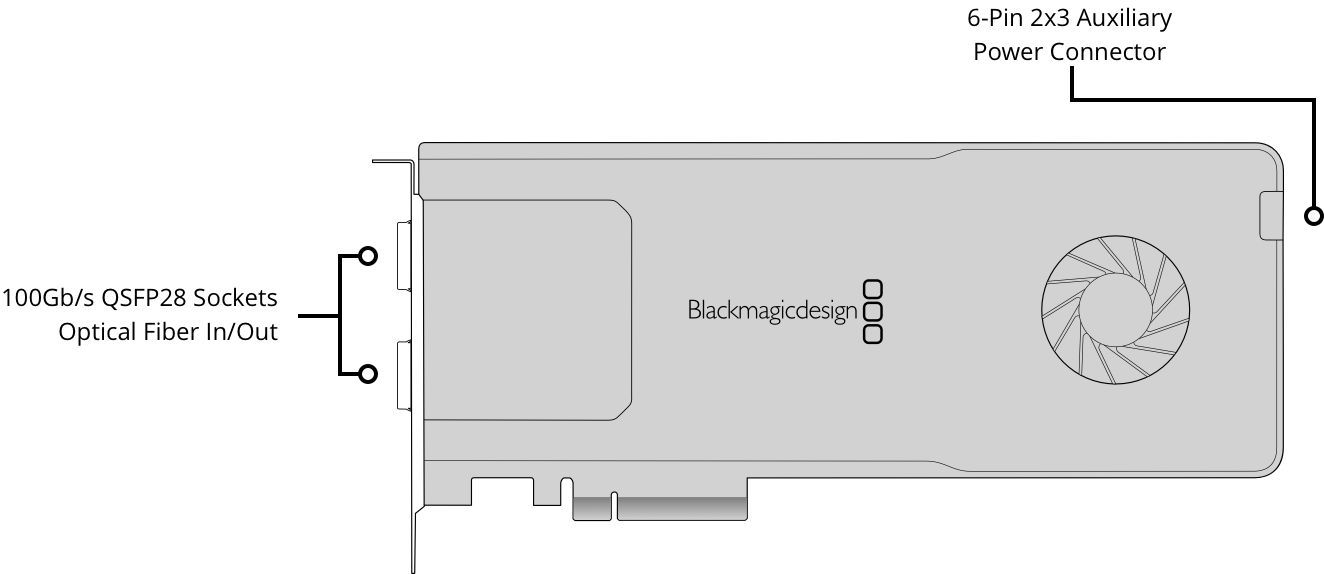

| 100G Ethernet Ports | 2 x QSFP28 100Gb/s |
| Computer Interface | PCI Express 8-lane Gen 4 compatible with 8 and 16 lane slots |
| Auxiliary Power Connector | 2×3 6-pin |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50/59.94/60; 1080i50/59.94/60; 1080p23.98–120 |
| 2K DCI Video Standards | 2Kp23.98–120 |
| Ultra HD Video Standards | 2160p23.98–120 |
| 4K DCI Video Standards | 4Kp23.98–120 |
| Audio Sampling | 48 kHz, 24-bit |
| Color Precision | RGB 4:4:4 (8/10/12-bit); YUV 4:2:2 |
| Color Space | Rec.601, Rec.709, Rec.2020 |
| HDR Support | HDR metadata, HLG and PQ |
IP Compliance and Codecs
| Feature | Detail |
|---|---|
| SMPTE 2110-20 | Uncompressed video, IGMP v2/v3 |
| SMPTE 2110-21 | Traffic: Narrow; Receive: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 | PCM audio Level C |
| SMPTE 2110-40 | Ancillary data, closed captions, HDR static |
| SMPTE 2022-7 | Redundancy streams |
| PTP Protocol | IEEE 1588-2008 (PTP v2), ST 2059-1/2 |
| NMOS IS-04 | v1.3.2, mDNS/DNS-SD |
| NMOS IS-05 | v1.1.2 |
| BCP-002-01 | Resource grouping |
| BCP-004-01 | Receiver capabilities |
| Compatible Codecs | ProRes, DNxHD, AVC-Intra, XDCAM, uncompressed 4:2:2/4:4:4 |
Software, Power, and Environmental Specifications
| Feature | Detail |
|---|---|
| Included Software | DaVinci Resolve, Media Express, Desktop Video Utility |
| Firmware Updates | Built into driver, via software |
| Installation | PCIe x8 Gen 4; auxiliary 6-pin power |
| Operating Systems | macOS 14+, Windows 10/11 64-bit, Linux |
| Color Space Conversion | Real-time hardware |
| Realtime Effects | DaVinci, Final Cut, Adobe, Avid |
| Operating Temperature | 5°–50° C |
| Storage Temperature | -20°–60° C |
| Relative Humidity | 0–90% non-condensing |
| Package Contents | DeckLink IP 100G, welcome wallet with QR code |
| Warranty | 3-year limited |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKIPHIP/100G |
| Ean | 9338716009996 |
