Blackmagic Design HyperDeck Shuttle 4K Pro 2TB
GTIN: 9338716009880
In stock
SKU
BMD-HYPERD/PTSKD/2TB
Special Price €1,955.29 €1,602.70 Regular Price €2,080.10
HyperDeck Shuttle 4K Pro 2TB
Advanced broadcast recorder with a large 7" LCD, transport controls, and jog dial. Supports 12G-SDI, HDMI 4K, H.264/H.265, ProRes, DNx, HD proxies, signal scopes, 3D LUTs, and features 2TB of built-in network storage.
Advanced broadcast recorder with a large 7" LCD, transport controls, and jog dial. Supports 12G-SDI, HDMI 4K, H.264/H.265, ProRes, DNx, HD proxies, signal scopes, 3D LUTs, and features 2TB of built-in network storage.
HyperDeck Shuttle 4K Pro 2TB

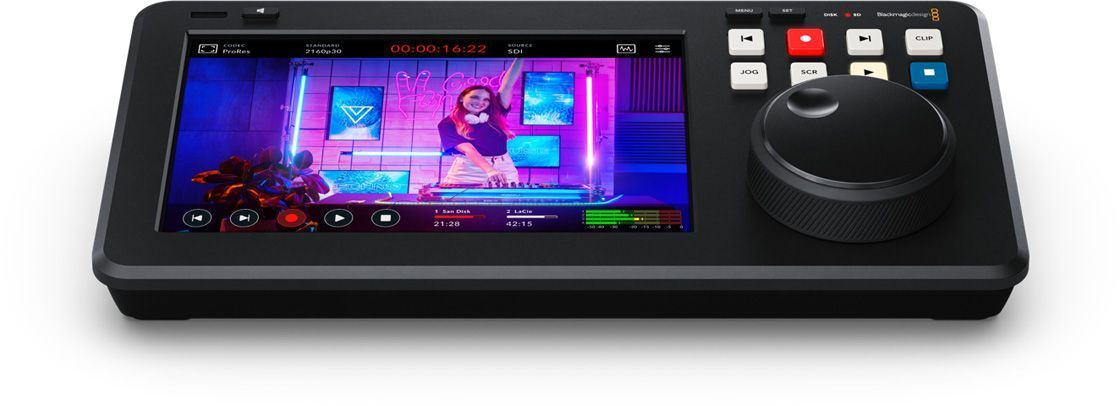

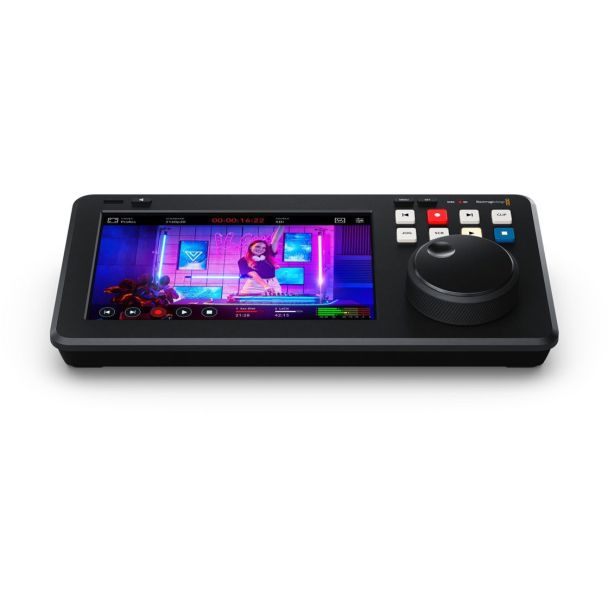

HyperDeck Shuttle 4K Pro 2TB is a professional broadcast recorder and player with a large 7" touchscreen LCD, designed for accurate on-screen monitoring and access to integrated signal scopes. Its mechanical transport controls and large jog wheel provide precise navigation when reviewing and selecting clips. With 12G-SDI and HDMI 4K connectivity, it integrates seamlessly into broadcast workflows. It supports H.264, H.265, Apple ProRes, and DNx formats, offers HD proxy generation, 3D LUT application, and fast network recording via 10G Ethernet. This 2TB edition includes high-speed built-in storage, ideal for uninterrupted, high-efficiency production pipelines.
HyperDeck Shuttle 4K Pro 2TB is a professional broadcast recorder and player with a large 7" touchscreen LCD, designed for accurate on-screen monitoring and access to integrated signal scopes. Its mechanical transport controls and large jog wheel provide precise navigation when reviewing and selecting clips. With 12G-SDI and HDMI 4K connectivity, it integrates seamlessly into broadcast workflows. It supports H.264, H.265, Apple ProRes, and DNx formats, offers HD proxy generation, 3D LUT application, and fast network recording via 10G Ethernet. This 2TB edition includes high-speed built-in storage, ideal for uninterrupted, high-efficiency production pipelines.

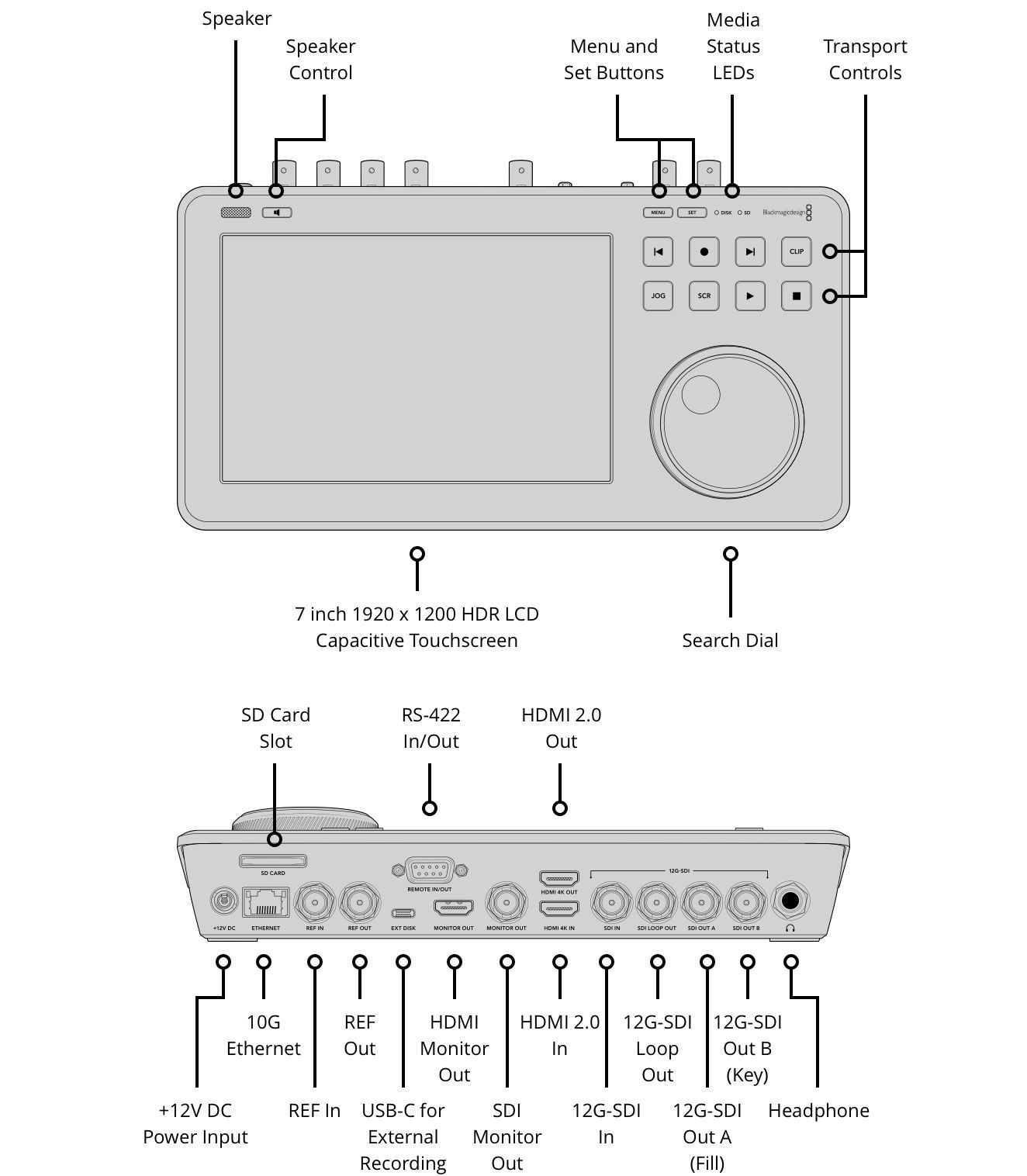

Connections
| SDI Video Inputs | 1 |
| SDI Loop Outputs | 1 |
| SDI Video Outputs | 2 |
| SDI Monitoring Outputs | 1 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| HDMI 2.0 Video Inputs | 1 |
| HDMI 2.0 Video Outputs | 1 |
| HDMI Monitoring Outputs | 1 |
| Built-in Speaker | Mono |
| Audio Output | 1 x 6.35 mm headphone jack |
| Display | 7-inch LCD |
| Reference Input | 1 x BNC In – Tri-Sync/Black Burst and Timecode |
| Reference Output | 1 x BNC Out – Tri-Sync or Black Burst |
| SDI Audio Inputs | 64 embedded audio channels |
| SDI Audio Outputs | 64 embedded audio channels |
| HDMI Audio Inputs | 8 embedded audio channels |
| HDMI Audio Outputs | 8 embedded audio channels |
| Remote Control | 1 x RS-422 In |
| Configuration | Via HDMI interface or HyperDeck Ethernet Protocol |
| Ethernet | 1 x RJ‑45 10Gb/s BASE-T compatible |
| External Recording | 1 x USB-C 3.1 Gen 1 (5Gb/s max) for external disk recording |
| Computer Interface | 1 x USB-C for software updates |
Video Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98–60, PsF23.98–30 |
| 2K DCI Standards | 2Kp23.98–30 DCI |
| Ultra HD Standards | 2160p23.98–60 |
| 4K DCI Standards | 4Kp23.98–30 DCI |
| SDI Compliance | SMPTE 259M, 292M, 424M |
| Supported SDI Metadata | 24-bit (TV standard), 48 kHz |
| Supported HDMI Formats | SD, HD, 2K DCI, Ultra HD, 4K DCI |
| Audio Sampling | 24-bit / 48 kHz |
| Video Sampling | 4:2:2 YUV |
| Color Precision | REC 601, REC 709, REC 2020 |
| 3D LUT | 33-point 3D LUT on SDI monitoring output |
| HDR Support | HLG, ST2084 (300–4000 nits) |
| Multirate Compatibility | Auto detection of SD, HD, 6G-SDI and 12G-SDI |
| Copy Protection | HDMI input does not support copyrighted content |
Media
| Cache Recording | Built-in 2TB M.2 PCIe NVMe for cache recording up to 16Gb/s. Compatible with 60mm, 80mm, 110mm cards |
| Storage | 1 SD card slot, 1 USB‑C 3.1 Gen 1 port for external recording in SD, HD, 2K DCI, Ultra HD, 4K DCI |
| Supported Media | UHS I and UHS II SD cards |
| Formatting | ExFAT (Windows/Mac) or HFS+ (Mac) |
Supported Codecs
| Video Codecs | ProRes HQ/422/LT/Proxy/4444* QuickTime, DNxHD, DNxHR, H.265, H.264 (*playback only) |
| Audio Codecs | AAC 2-channel, PCM with 2/4/8/16/32/64 channels |
Scopes
| Scopes | Waveform, RGB Parade, Vectorscope, 10-bit quality histogram |
| Monitoring Modes | Picture-in-picture, overlay with adjustable opacity, standard HDR grids, zoomable vectorscope |
Control
| Integrated Control Panel | Capacitive touchscreen LCD with settings and menu controls, 11 transport buttons, and jog dial |
| External Control | 11 transport buttons and jog dial |
Teleprompter
| Multirate Compatibility | Outputs at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p. Defaults to highest frame rate |
| Supported File Formats | RTF (.rtf) with formatting support, plain text (.txt) |
Software
| Included Software | Blackmagic OS, Blackmagic HyperDeck Setup |
| Internal Software Update | Loads at startup or via HyperDeck Setup using USB |
Operating Systems
| macOS | macOS 14.0 Sonoma, macOS 15.0 Sequoia or later |
| Windows | Windows 10 and 11 |
Display
| Display | Built-in LCD for video, audio, timecode monitoring, and settings menu |
Power Requirements
| Power Supply | 1 x DC 12V 5.5mm barrel connector with locking mechanism for external sources or batteries |
| Power Consumption | Max 60W |
Environmental Specifications
| Operating Temperature | 0° to 40° C |
| Storage Temperature | -20° to 60° C |
| Relative Humidity | 0% to 90% non-condensing |
Included Items
| Package Contents | HyperDeck Shuttle 4K Pro 2TB, 2TB M.2 PCIe NVMe for cache recording, 12V universal power supply with international socket adapters |
Warranty
| Manufacturer Warranty | Limited 1-year warranty provided by the manufacturer |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | HYPERD/PTSKD/2TB |
| Ean | 9338716009880 |
