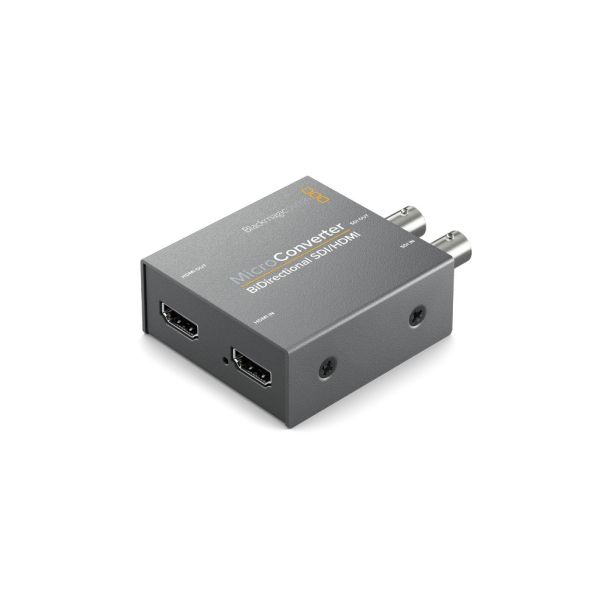

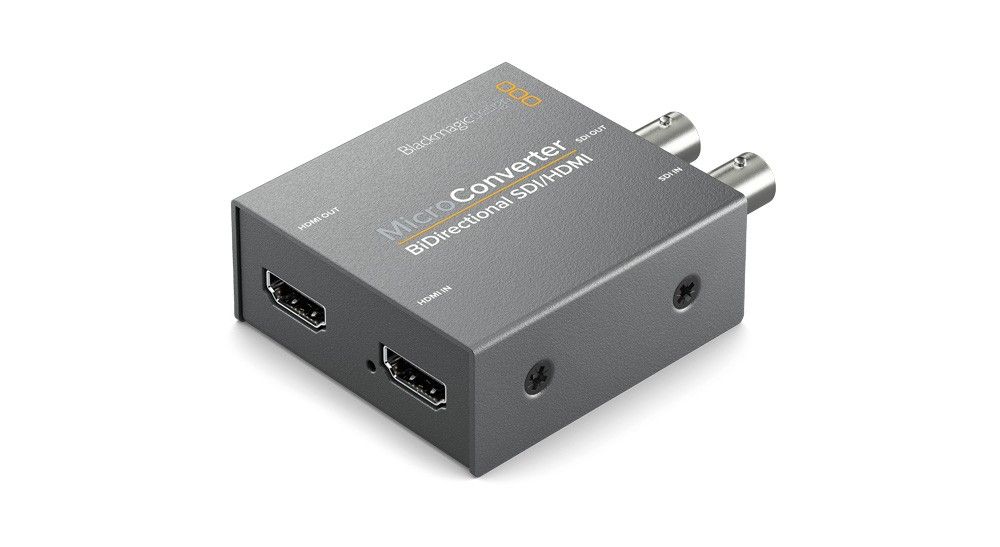

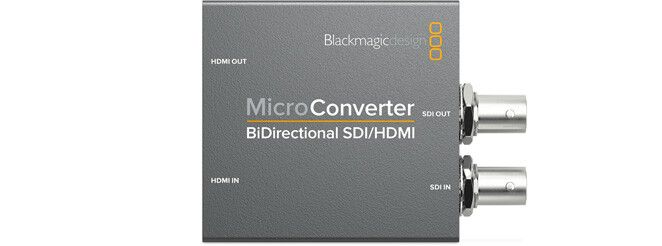

Blackmagic Design Micro Converter BiDirectional SDI/HDMI
GTIN: 9338716005394
Micro Converter BiDirectional SDI/HDMI, 1080i60, 2.5 W, 4.4-5.25 V DC, SDI/HDMI inputs, SDI/HDMI outputs
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
Now you can simultaneously convert SDI to HDMI and HDMI to SDI in any combination of SD and HD formats up to 1080p60 at the same time! Each conversion direction can be a different SD or HD video standard, so it’s like getting two converters in one! The multi‑rate 3G‑SDI input and output connections are compatible with virtually all professional broadcast equipment, including Level A and B devices. It even automatically detects all SD and HD formats.
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVBDC/SDI/HDMI |
| Ean | 9338716005394 |
| Modified on | 24-01-2019 |
| Warranty | 3 years |
| Product title | Blackmagic Design Micro Converter BiDirectional SDI/HDMI |
| Long Product Name | Micro Converter BiDirectional SDI/HDMI, 1080i60, 2.5 W, 4.4-5.25 V DC, SDI/HDMI inputs, SDI/HDMI outputs |
| Product specifications | FeaturesReclocking Yes Product colour Grey Windows operating systems supported Windows 10, Windows 8.1 Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave VideoMaximum video resolution* 1920 x 1080 pixels Supported video modes 720p, 1080i, 1080p Resolution at capture speed 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@23.98fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps Analog signal format system NTSC, PAL Supported chroma subsampling 4:2:2 Colour space supported YUV Serial Digital Interface (SDI) standard SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M SDI auto-switching Yes Auto detection resolution Yes Ports & interfacesHost interface* SDI/HDMI Output interface* SDI/HDMI Video in 2 Video out 2 PowerExternal power adapter Yes USB powered Yes Operating voltage 5.25 V Power consumption (typical) 2.5 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 81 mm Depth 59 mm Height 25 mm Weight 174 g Packaging dataCables included USB Quantity 1 |
| Essential qualities |
|
| Maximum video resolution | 1920 x 1080 pixels |
| Host interface | SDI/HDMI |
| Output interface | SDI/HDMI |
