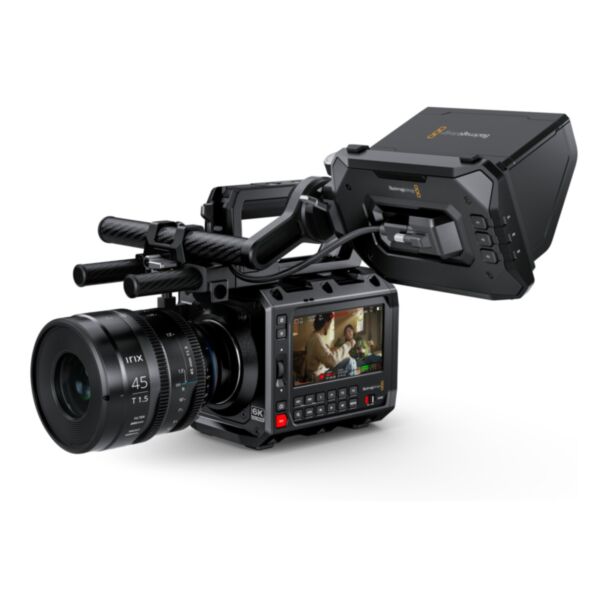

Blackmagic Design PYXIS Monitor EVF Kit – 5" HDR touch monitor as viewfinder for PYXIS and URSA Cine
GTIN: 9338716009477
PYXIS Monitor EVF Kit: kit with 5" 1500 nit HDR touchscreen monitor, sunshade, locking USB-C cable, PYXIS mounts and URSA Cine EVF mounts for use as an electronic viewfinder.
Blackmagic Design PYXIS Monitor EVF Kit – 5" HDR touch monitor as viewfinder for PYXIS and URSA Cine
Blackmagic PYXIS Monitor is a 5" Full HD 1500 nit HDR touchscreen monitor with full camera control that mounts almost anywhere. The touchscreen controls overlays, frame rate, shutter, iris, timecode, ISO, white balance, tint and record start/stop; 3 assignable function buttons recall values or toggle functions such as LUTs, guides, focus assist, false color and zebra. It has a rear tally light and rotates the image automatically when mounted upside down.
What the PYXIS Monitor EVF Kit is for

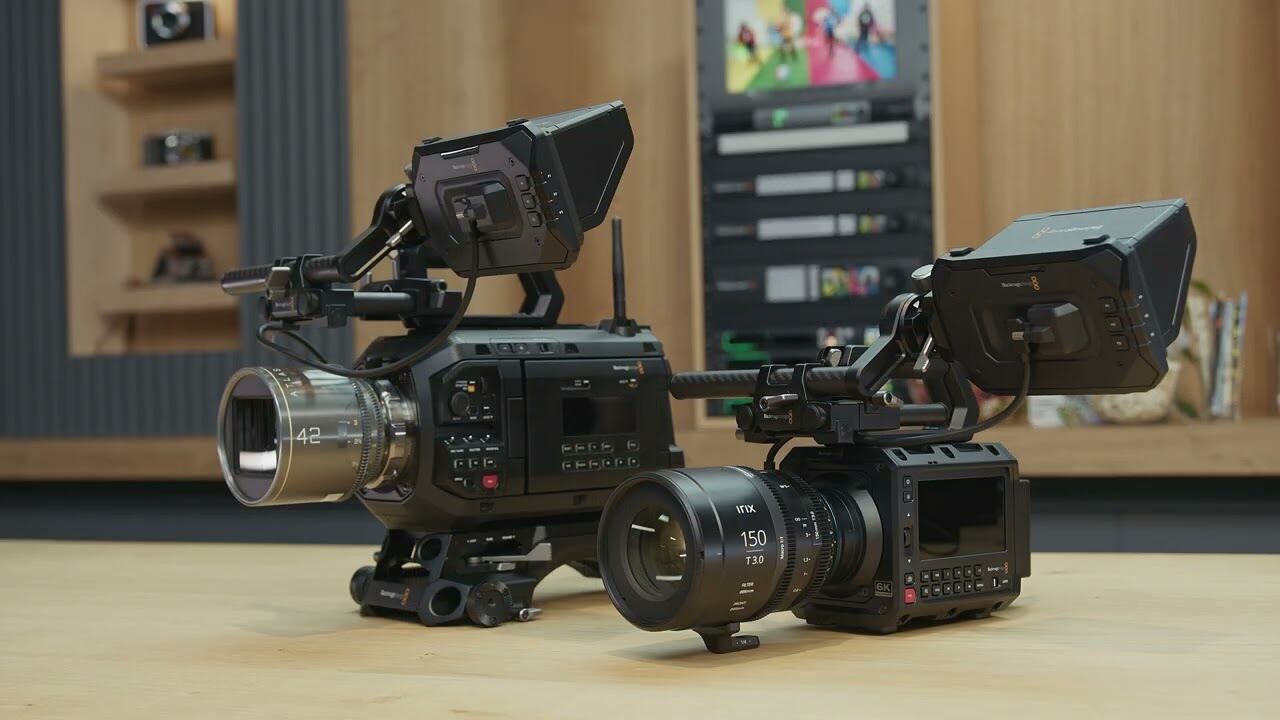

The EVF kit contains the monitor, foldable sunshade, locking USB cable, PYXIS mounts and URSA Cine EVF mounts: everything needed to use the PYXIS Monitor as an electronic viewfinder on Blackmagic PYXIS and URSA Cine cameras.
Connection and mounting
It connects to the camera with a locking USB-C cable carrying video, power, data and updates. Compatible with Blackmagic PYXIS 6K (also PL and EF) and URSA Cine 12K LF and 17K 65. Mounting points: 1/4-20 with ARRI pins and 2 x M4 underneath, 1/4-20 on the side.
How to choose
Without the EVF mounts there is the PYXIS Monitor Kit.
At emoc.com this product can be combined with the Blackmagic Design extended warranty.
Technical specifications
Connections
| USB-C with Locking Connector | Video, power, data and software updates. |
|---|
Features
| Display Size | 5 inch. |
|---|---|
| Display Resolution | Full 1920 x 1080. |
| Display Type | LCD capacitive touchscreen. |
| Display Brightness | 1500 nits. |
| Frame Rates | Up to 60fps. |
| Tally | Rear facing LED tally light. |
| Accelerometer | Automatically rotates image when monitor mounted upside down. |
Control
| On Screen Controls | Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus. |
|---|---|
| Button Controls | Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. |
| Function Button Presets | FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value |
| Function Button Toggle | Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still |
Mounting
| Mounting Points | 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points. |
|---|---|
| Mounting Brackets | Blackmagic PYXIS Monitor Swivel Mount ‑ included in EVF Kit. Blackmagic PYXIS Monitor Fixed Mount ‑ included in EVF Kit. Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in EVF Kit. Blackmagic URSA Cine EVF Bracket ‑ included in EVF Kit. |
Compatible Cameras
| Blackmagic PYXIS 6K Blackmagic PYXIS 6K PL Blackmagic PYXIS 6K EF Blackmagic URSA Cine 12K LF Blackmagic URSA Cine 17K 65 Blackmagic Micro Studio Camera 4K G2 |
Power Requirements
| Powered over USB-C. |
Environmental Specifications
| Operating Temperature | 0°to 40°C (32° to 104°F) |
|---|---|
| Storage Temperature | -20°to 60°C (‑4° to 140°F) |
| Relative Humidity | 0% to 90% non-condensing |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CINEURSABB/AMKITEVF |
| Ean | 9338716009477 |
| Taric Code | 8528590090 |
| Product colour | Black |
| Display diagonal | 12.7 cm (5") |
| Display resolution | 1920 x 1080 pixels |
| LED backlight | Yes |
| Touchscreen | Yes |
| Power supply type | DC |
| Accessory type | Viewfinders and monitors |
| Compatible with | PYXIS |
