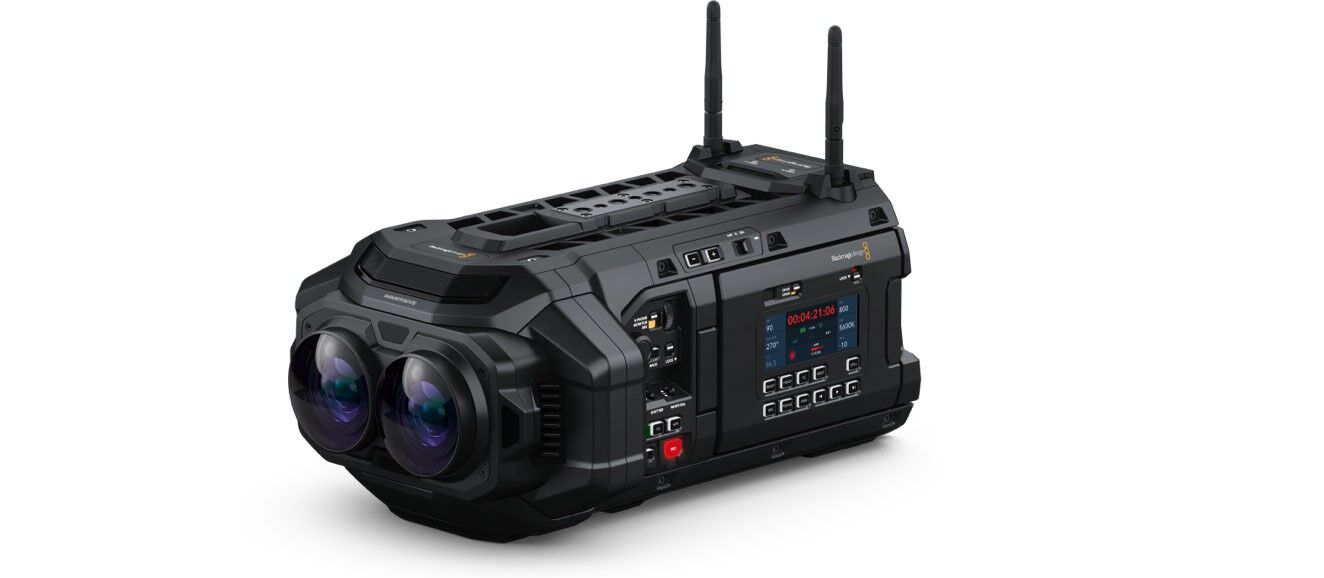

Blackmagic Design URSA Cine Immersive 100G Body
GTIN: 9338716010831
In stock
SKU
BMD-CINEURSAAF24DS/IMB0BD
Special Price €20,141.47 €16,509.40 Regular Price €21,892.90
Stereoscopic cinema camera with dual 8K x 8K RGBW sensors at 90 fps and 100G Ethernet SMPTE 2110 output for live immersive production, body only version without media.
Blackmagic Design URSA Cine Immersive 100G Body
The Blackmagic URSA Cine Immersive 100G Body is a stereoscopic cinema camera for live immersive production: the 100G Ethernet output delivers SMPTE 2110 video, and the same camera covers shooting, post production and live work. Its dual 8K x 8K RGBW sensors run at 90 frames per second with 16 stops of dynamic range.
Body only version, for those who already own accessories and media: it does not include media, top handle, baseplate or battery plate.
Technical specifications
Camera Features
| Sensors | 2 x 8K sensors. Left eye and right eye. |
|---|---|
| Pixel Pitch | 2.9 microns. |
| Lens | Fixed focal length, 180°+ field of view, stereo lens pair. |
| Dynamic Range | 16 Stops. |
| Shooting Formats | 8K x 8K stereo immersive. |
| Frame Rates | Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 and 90 fps supported. |
| High Speed Frame Rates | 8K stereo immersive up to 90 fps. |
| Built in ND Filters | Button activated ND filters with clear, 2‑stop, 4‑stop, 6‑stop and 8‑stop IR ND filters. |
| Iris Control | Fixed iris. |
| Screens | 2 x Monitoring Screens. 1 x Camera Status Screen. |
| Monitoring Screen Dimensions | 5 inch. |
| Monitoring Screen Resolution | 1920px x 1080px. |
| Monitoring Screen Brightness | 1500 nits. |
| Monitoring Screen Type | LCD capacitive touchscreen. |
| Monitoring Options | Left Eye, Right Eye, Punch In, or Side by Side. |
| Metadata Support | Discrete left and right eye optical calibration metadata. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. |
| Controls | Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 3 assignable shortcut keys on PYXIS Monitor. Fischer connector for remote run/stop. |
| Timecode Clock | Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
Connections
| Total Video Outputs | 3 |
|---|---|
| SDI Video Outputs | 2 |
| SDI Rates | 1.5G, 3G, 6G, 12G. |
| 2110 IP Video Outputs | 1 x 100G QSFP28 connection. |
| 2110 IP Video Inputs | 1 x 100G QSFP28 connection. |
| Analog Audio Inputs | 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. |
| Analog Audio Outputs | 1 x 3.5mm headphone jack. |
| Reference Inputs | Tri-Sync/Black Burst and Timecode. PTP clock and timecode over 2110 IP network. |
| USB-C Monitor Outputs | 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. |
| Computer Interface | 2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closest to rear. |
| Ethernet | 1 x 100Gb/s QSFP28 connector for sending and receiving 2110 IP video or SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming. |
| Power | 1 x 8-pin Lemo compatible +24V DC power input. |
Audio
| Microphone | Integrated stereo microphone. |
|---|---|
| Built in Speaker | 1 x mono speaker. |
Standards
| SD Video Standards | None |
|---|---|
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 |
| SDI Audio Sampling | 48 kHz and 24 bit. |
IP Video Compliance
| SMPTE 2110-20 (Uncompressed Video) | None |
|---|---|
| SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
| SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Codec | SMPTE 2110-22 Constant Bit-Rate compressed video. Apple ProRes HQ, Apple ProRes or Apple ProRes LT with optional Blackmagic URSA Live Encoder. |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
| NMOS IS-04 Discovery and Registration | v1.3.2 Peer-to-peer via mDNS/DNS-SD |
| NMOS IS-05 Connection Management | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver capabilities |
Media
| Media Format | Blackmagic |
|---|
Supported Codecs
| Codecs | Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 With optional Blackmagic URSA Live Encoder Apple ProRes HQ Apple ProRes Apple ProRes LT |
|---|
Control
| External Control | Blackmagic PYXIS Monitor and Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the F1, F2, F3. External Camera Control supported using REST API over Ethernet or WiFi. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand for controlling camera. |
|---|
Network Management
| NTP | Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. |
|---|---|
| FTP | Download files from any drive attached to your camera using FTP. |
| Web Media Manager | Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. It also enables, disables control over REST API. |
| SMB | File sharing using SMB. |
Storage Features
| Storage Type | Blackmagic Media Module, not included. |
|---|---|
| Storage Rates | Storage rates based on 90 frames per second. 8160 x 7200 x 2 Blackmagic RAW 5:1 - 3,203 MB/s Blackmagic RAW 8:1 - 2,002 MB/s Blackmagic RAW 12:1 - 1,335 MB/s Blackmagic RAW 18:1 - 889 MB/s Blackmagic RAW Q0 - 1,779 to 4,003 MB/s Blackmagic RAW Q1 - 1,456 to 3,558 MB/s Blackmagic RAW Q3 - 801 to 2,002 MB/s Blackmagic RAW Q5 - 534 to 1,602 MB/s Constant Quality Rates are: Q0 9:1 - 4:1, Q1 11:1 - 4.5:1, Q3 20:1 - 8:1, Q5 30:1 - 10:1 Actual storage rates are dependent on image subject matter. |
| Recording Formats | Blackmagic RAW 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at 8160 x 7200 resolution for each eye. |
Power Requirements
| Power Inputs | 1 x 8 pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate. |
|---|---|
| Power Outputs | B-Mount battery plate including 2-pin connector with +12V regulated output from camera. |
Environmental Specifications
| Operating Temperature | 0° to 40°C (32° to 104°F) |
|---|---|
| Storage Temperature | -20° to 45°C (-4° to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
Warranty
| 1 Year Limited Manufacturer’s Warranty. |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CINEURSAAF24DS/IMB0BD |
| Ean | 9338716010831 |
| Taric Code | 85258900 |
| Camera type | Stereoscopic 3D |
| Sensor resolution | 8K |
| Lens mount | Built-in lenses |
| Recording media | Blackmagic Media Module |
| Dynamic range (stops) | 16 |
| Built-in ND filters | Yes |
| Video output type | SDI |
| Configuration | Body only |
| Network | 100G Ethernet |
