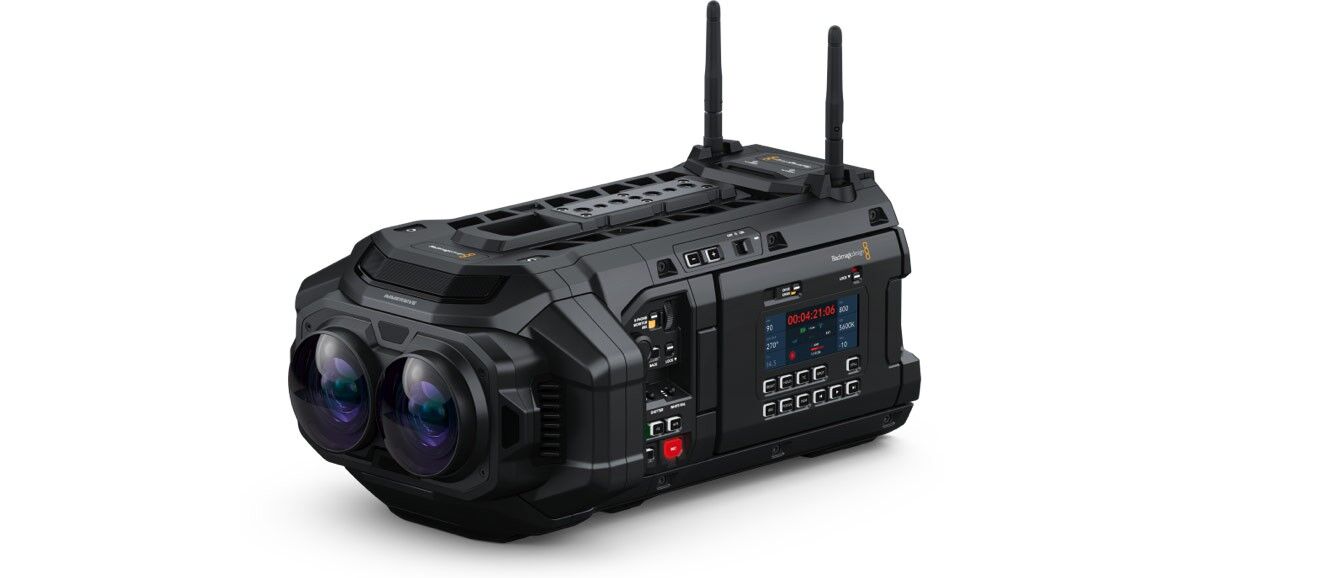

Blackmagic Design URSA Cine Immersive Body
GTIN: 9338716010824
In stock
SKU
BMD-CINEURSAAF24DS/IMA0BD
Special Price €19,333.34 €15,847.00 Regular Price €21,014.50
Stereoscopic cinema camera for Apple Immersive Video with dual 8K sensors, 8160 x 7200 per eye, and 16 stops of dynamic range, body only version without media.
Blackmagic Design URSA Cine Immersive Body
The Blackmagic URSA Cine Immersive Body is a stereoscopic cinema camera for capturing Apple Immersive Video for Apple Vision Pro. Its dual 8K sensors, 8160 x 7200 per eye, are synchronised at pixel level and deliver 16 stops of dynamic range; the fixed stereo lenses are designed for the sensor.
Body only version, for those who already own accessories and media: it does not include media, top handle, baseplate or battery plate.
Technical specifications
Camera Features
| Sensors | 2 x 8K sensors. Left eye and right eye. |
|---|---|
| Effective Sensor Size | 23.66 mm x 20.88 mm each. |
| Pixel Pitch | 2.9 microns. |
| Lens | Fixed focal length, 180°+ field of view, stereo lens pair. |
| Dynamic Range | 16 Stops. |
| Shooting Formats | 8160 x 7200 x 2 (stereo immersive) |
| Frame Rates | Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 and 90 fps supported. |
| High Speed Frame Rates | 8K stereo immersive up to 90 fps. |
| Built in ND Filters | Button activated ND filters with clear, 2‑stop, 4‑stop, 6‑stop and 8‑stop IR ND filters. |
| Iris Control | Fixed iris. |
| Screens | 2 x Monitoring Screens. 1 x Camera Status Screen. |
| Monitoring Screen Dimensions | 5 inch. |
| Monitoring Screen Resolution | 1920px x 1080px. |
| Monitoring Screen Brightness | 1500 nits. |
| Monitoring Screen Type | LCD capacitive touchscreen. |
| Monitoring Options | Left Eye, Right Eye, Punch In or Side by Side. |
| Metadata Support | Discrete left and right eye optical calibration metadata. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. |
| Controls | Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 3 assignable shortcut keys on PYXIS Monitor. Fischer connector for remote run/stop. |
| Timecode Clock | Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
Connections
| Total Video Outputs | 2 |
|---|---|
| SDI Rates | 1.5G, 3G, 6G, 12G. |
| Analog Audio Inputs | 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. |
| Analog Audio Outputs | 1 x 3.5mm headphone jack. |
| Reference Inputs | Tri-Sync/Black Burst and Timecode. |
| USB-C Monitor Outputs | 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. |
| Computer Interface | 2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear. |
| Ethernet | 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming. |
Audio
| Microphone | Integrated stereo microphone. |
|---|---|
| Built in Speaker | 1 x mono speaker. |
Standards
| SD Video Standards | None |
|---|---|
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 |
| SDI Audio Sampling | 48 kHz and 24 bit. |
Media
| Media Format | Blackmagic |
|---|
Supported Codecs
| Codecs | Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 |
|---|
Control
| External Control | Blackmagic PYXIS Monitor and Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the F1, F2, F3. External Camera Control supported using REST API over Ethernet or WiFi. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand for controlling camera. |
|---|
Network Management
| NTP | Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. |
|---|---|
| FTP | Download files from any drive attached to your camera using FTP. |
| Web Media Manager | Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. |
| SMB | File sharing using SMB. |
Storage Features
| Storage Type | Blackmagic Media Module, not included. |
|---|---|
| Storage Rates | Storage rates based on 90 frames per second. 8160 x 7200 x 2 Blackmagic RAW 5:1 - 3,203 MB/s Blackmagic RAW 8:1 - 2,002 MB/s Blackmagic RAW 12:1 - 1,335 MB/s Blackmagic RAW 18:1 - 889 MB/s Blackmagic RAW Q0 - 1,779 to 4,003 MB/s Blackmagic RAW Q1 - 1,456 to 3,558 MB/s Blackmagic RAW Q3 - 801 to 2,002 MB/s Blackmagic RAW Q5 - 534 to 1,602 MB/s Constant Quality Rates are: Q0 9:1 - 4:1, Q1 11:1 - 4.5:1, Q3 20:1 - 8:1, Q5 30:1 - 10:1 Actual storage rates are dependent on image subject matter. |
| Recording Formats | Blackmagic RAW 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at 8160 x 7200 resolution for each eye. |
| Audio Channels | 2 channels. |
| Audio Recording | Uncompressed linear PCM 24-bit, 48kHz embedded audio in Blackmagic RAW. |
Power Requirements
| Power Input | 1 x 8 pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate. |
|---|---|
| Power Output | B-Mount battery plate including 2-pin connector with +12V regulated output from camera. |
Environmental Specifications
| Operating Temperature | 0° to 40°C (32° to 104°F) |
|---|---|
| Storage Temperature | -20° to 45°C (-4° to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
Warranty
| 1 Year Limited Manufacturer’s Warranty. |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CINEURSAAF24DS/IMA0BD |
| Ean | 9338716010824 |
| Taric Code | 85258900 |
| Camera type | Stereoscopic 3D |
| Sensor resolution | 8K |
| Lens mount | Built-in lenses |
| Recording media | Blackmagic Media Module |
| Dynamic range (stops) | 16 |
| Built-in ND filters | Yes |
| Video output type | SDI |
| Configuration | Body only |
| Network | 10G Ethernet |
