DataVideo CAP-1 1920 x 1080 pixels
GTIN: 0672255008690
USB-powered 3G-SDI to USB 3.0 UVC capture box for streaming, recording and video conferencing, with SDI loop-out and selectable embedded or external mini-jack audio.

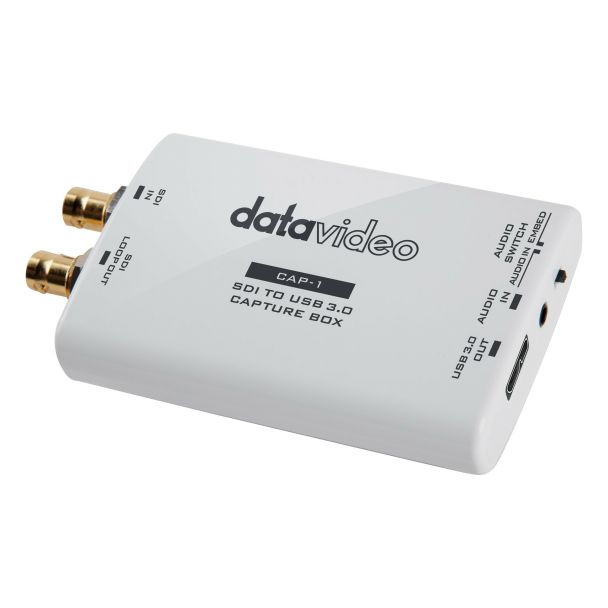

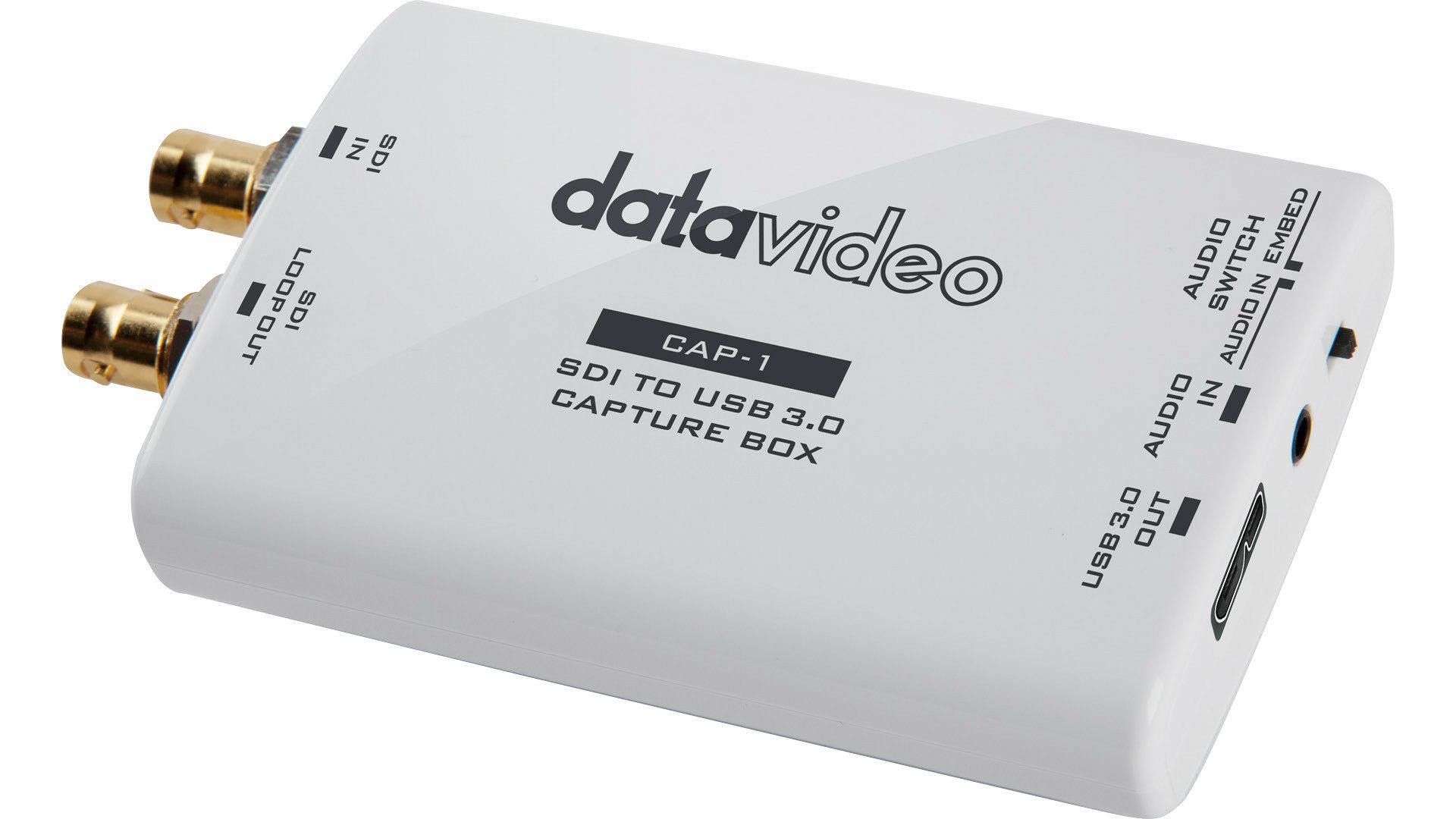

Datavideo CAP-1 SDI to USB 3.0 Capture Box
The Datavideo CAP-1 takes 3G-SDI with embedded or external audio and converts it to USB 3.0, connecting the signal directly to a computer for streaming, recording or video conferencing. It is UVC compliant and plug and play, with no drivers to install, and auto-detects resolution and frame rate. It works with any SDI camera or switcher to stream to YouTube or Facebook or use services such as Zoom, Skype, Teams or GoToMeeting. It is powered via USB. An SDI loop-out allows monitoring or recording of the source, and audio can be taken from SDI embedded audio or an external mini-jack line input.
Key features
- 3G-SDI to USB 3.0 (UVC), no drivers
- Automatic detection of resolution and frame rate
- USB powered
- SDI loop-out
- Embedded SDI audio or external mini-jack line-in
- Works with Windows, macOS and Linux applications such as OBS, VLC, Zoom, Skype
In the box
- Micro-USB cable
Specifications
- Video modes: 720p, 1080i, 1080p
- Output: Micro-USB B (USB 3.0)
- Power consumption: 3 W
- Operating temperature: 0-40 °C
- Dimensions: 121 x 68 x 23 mm
- Weight: 92 g
- Colour: white
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 2510-8510 |
| Ean | 0672255008690 |
| Modified on | 13-10-2020 |
| Product title | DataVideo CAP-1 1920 x 1080 pixels |
| Long Product Name | SDI to USB 3.0 Capture Box, White, 92g |
| Product specifications | FeaturesPlug and Play Yes Product colour White Windows operating systems supported Windows 10, Windows 7, Windows 7 Enterprise x64, Windows 8.1 Mac operating systems supported Yes Compatible products Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime VideoMaximum video resolution* 1920 x 1080 pixels Video resolutions 1280 x 720,1920 x 1080 pixels Supported video modes 720p, 1080i, 1080p Bandwidth 350 Gbit/s Bandwidth 150 MHz AudioAudio output channels 2.0 channels Ports & interfacesHost interface* SDI Output interface* Micro-USB B 3.5 mm connector Yes PowerUSB powered Yes Power consumption (typical) 3 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Weight & dimensionsWidth 121 mm Depth 68 mm Height 23 mm Weight 92 g Packaging dataCables included Micro-USB Quantity 1 |
| Essential qualities |
|
| Maximum video resolution | 1920 x 1080 pixels |
| Host interface | SDI |
| Output interface | Micro-USB B |
