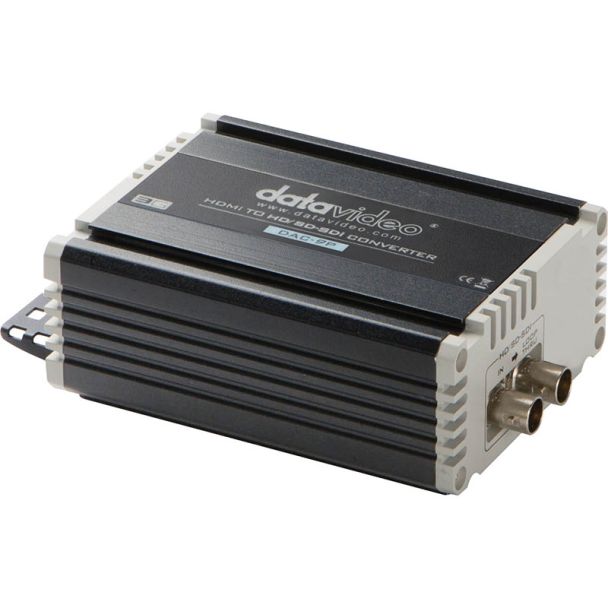

DataVideo DAC-9P 1920 x 1080 pixels
GTIN: 0672255004166
In stock
SKU
DAT-2000-2290
Special Price €651.71 €534.19 Regular Price €686.01
HDMI to HD/SD-SDI converter with two SDI outputs and audio embedding, for connecting HDMI camcorders to SDI switchers and recorders over long cable runs.
Datavideo DAC-9P HDMI to SDI Converter
Many High Definition camcorders and devices only provide an HDMI output. The Datavideo DAC-9P connects HDMI devices to professional SDI equipment such as video switchers or recorders up to 200 metres away. HDMI is not suitable for long cable runs, while SDI offers high quality and affordable connectivity. The DAC-9P also embeds the audio from HDMI into the SDI signal, so a single cable is enough.
Key features
- Converts HDMI to HD and SD-SDI
- SDI cable runs up to 200 m
- HDMI audio embedded into the SDI signal
- Two SDI outputs
In the box
- AC adapter
Specifications
- Video input: 1 x HDMI
- Video output: 2 x SDI (HD/SD)
- Video modes: 480i, 576i, 720p, 1080i, 1080p
- Operating voltage: 12 V, 0.5 A
- Power consumption: 5 W
- Operating temperature: 0-40 °C
- Dimensions: 145 x 85 x 30 mm
- Weight: 330 g
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 2000-2290 |
| Ean | 0672255004166 |
| Modified on | 03-04-2015 |
| Product title | DataVideo DAC-9P 1920 x 1080 pixels |
| Long Product Name | HDMI to SDI Converter, 1x HDMI, 2x SDI (HD/SD SDI), 12V, 5W |
| Product specifications | FeaturesProduct colour Black, Grey Certification CE, FCC VideoMaximum video resolution* 1920 x 1080 pixels Supported video modes 480i, 576i, 720p, 1080i, 1080p Analog signal format system NTSC, PAL Ports & interfacesHost interface* HDMI Output interface* HD-SDI Video in 1x HDMI Video out 2x 3G/HD/SD-SD PowerOperating voltage 12 V Operating current 0.5 A PowerPower consumption (typical) 5 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 10 - 90% Weight & dimensionsWidth 145 mm Depth 85 mm Height 30 mm Weight 330 g Packaging dataAC adapter included Yes Quantity 1 |
| Essential qualities |
|
| Maximum video resolution | 1920 x 1080 pixels |
| Host interface | HDMI |
| Output interface | HD-SDI |
