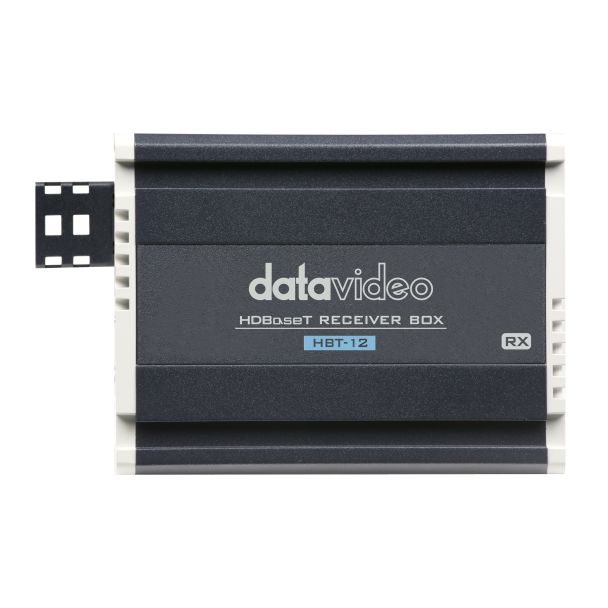

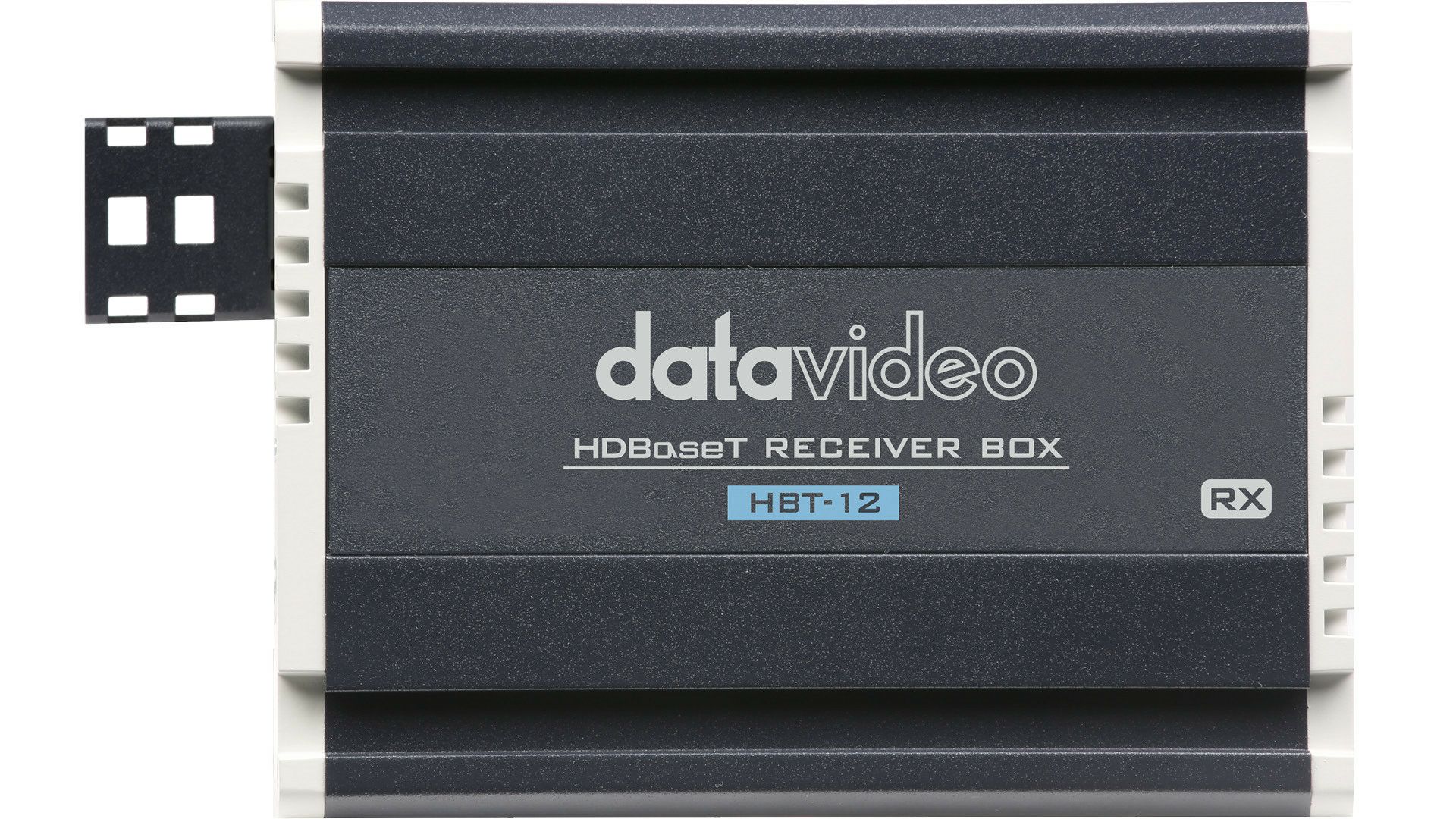

DataVideo HBT-12 AV receiver Black
GTIN: 0672255009109
4K HDBaseT receiver with RJ-45 input and HDMI output that powers the transmitting device via PoE++ and carries video, audio, DVIP, RS-422/232 control over one Cat 7 cable.
Datavideo HBT-12 HDBaseT Receiver
The Datavideo HBT-12 is an HDBaseT receiver that accepts video up to 4K (4K 25/30p) from the transmitter. With a 56 V power supply connected to the HBT-12, it can power the transmitting device using PoE++. HDMI video, audio, DVIP control commands, RS-422/232 control and power travel between transmitter and receiver over a single Cat 7 cable. The rugged aluminium alloy housing has low heat dissipation for long operation. HDBaseT carries video, control, tally and power over a single network cable, so separate cables for video, control and power to the cameras are no longer needed.
Key features
- Receives up to 4K 25/30p video
- Powers the transmitter via PoE++
- Video, audio, DVIP, RS-422/RS-232 control and power over one Cat 7 cable
- Rugged aluminium alloy housing
Specifications
- Ports: 1 x HDBaseT RJ-45 input, 1 x HDMI output
- Video modes: 1080i, 1080p, 2160p
- Operating voltage: 56 V
- Operating temperature: 0-40 °C
- Dimensions: 132 x 85 x 45 mm
- Weight: 400 g
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 2202-0012 |
| Ean | 0672255009109 |
| Modified on | 31-07-2022 |
| Product title | DataVideo HBT-12 AV receiver Black |
| Long Product Name | HDBaseT RJ-45 x1/HDMI x1, 1080p@60, 132 x 85 x 45 mm, 400 g |
| Product specifications | FeaturesType* AV receiver Maximum resolution* 3840 x 2160 pixels Cable types supported Cat7 Maximum transfer distance 100 m Supported video modes 1080i, 1080p, 2160p Supported graphics resolutions 3840 x 2160 Product colour Black Ports & interfacesConnectivity technology* Wired RJ-45 input ports 1 Number of HDMI outputs 1 PowerPower source type DC PowerOperating voltage 56 V Power consumption (typical) 65 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 85 mm Depth 132 mm Height 45 mm Weight 400 g Packaging dataQuantity per pack 1 pc(s) |
