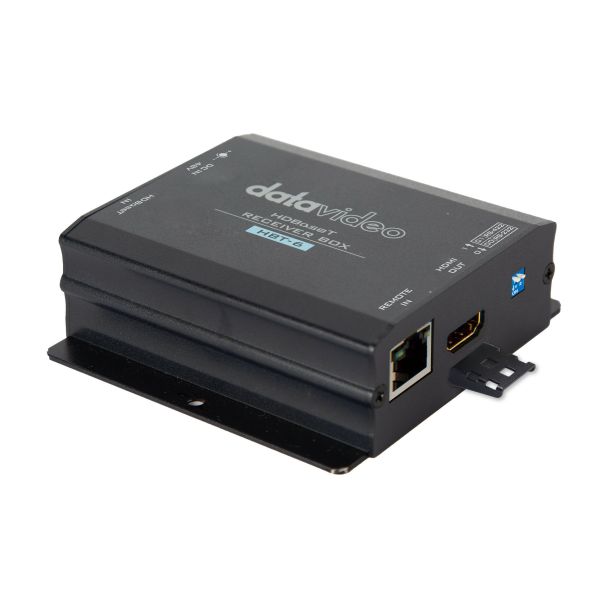

DataVideo HBT-6 AV receiver Black
GTIN: 0672255008898
In stock
SKU
DAT-2202-0006
Special Price €388.27 €318.25 Regular Price €408.70
HDBaseT receiver with RJ-45 input and HDMI output: receives HDMI up to 60 m at 1080p and 35 m at 4K@30 over Cat 6, powered locally or via PoE, with RS-232/RS-422 control.

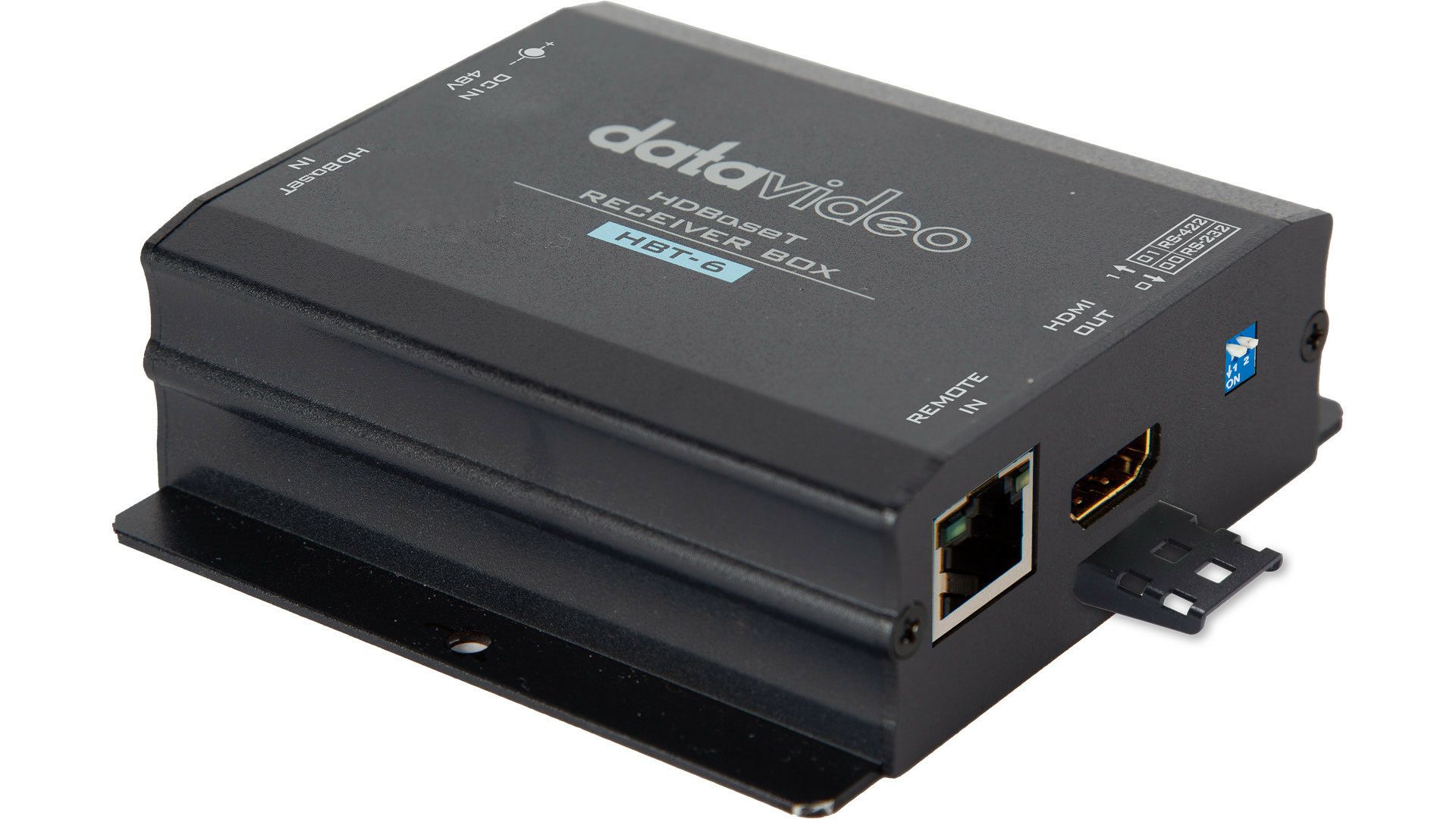

Datavideo HBT-6 HDBaseT Receiver
The Datavideo HBT-6 is the receiver of an HDBaseT extender that carries HDMI video and digital audio over a single Cat 6 cable: up to 60 m at 1080p and 35 m at 4K@30, in Ultra HD and Full HD. It supports HDMI Deep Color, full 3D and HDCP. The receiver can be powered directly by a power supply or by Power over Ethernet from the transmitter, and a 12 V power output is available for remotely located equipment. RS-232/RS-422 control signals allow the source device to be controlled from the display location.
Key features
- HDMI Deep Color, full 3D and 4K@30
- Up to 60 m at 1080p and 35 m at 4K@30 over Cat 6
- Power over Ethernet between transmitter and receiver; 12 V power out for remote equipment
- HDCP compliant
- RS-232/RS-422 control of the source from the display location
- Default EDID and EDID learning from the display
- Dolby Digital, DTS-HD and Dolby TrueHD audio
Specifications
- Ports: 1 x HDBaseT RJ-45 input, 1 x HDMI output
- Maximum resolution: 3840 x 2160
- Bandwidth: 10.2 Gbps, 340 MHz
- HDCP 1.4/2.2
- Operating temperature: 0-40 °C
- Dimensions: 88 x 76 x 30 mm
- Weight: 154 g
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 2202-0006 |
| Ean | 0672255008898 |
| Modified on | 22-10-2022 |
| Product title | DataVideo HBT-6 AV receiver Black |
| Long Product Name | HDBaseT RJ-45/HDMI, 3840x2160, 340MHz, 10.2Gbps, 88 x 76 x 30 mm, 154 g |
| Product specifications | FeaturesType* AV receiver Maximum resolution* 3840 x 2160 pixels Cable types supported Cat6 Maximum transfer distance 60 m Audio output channels 7.1 channels Supported video modes 525i, 625i, 720p, 1080i, 1080p, 2160p Supported graphics resolutions 3840 x 2160 Bandwidth 10.2 Gbit/s Bandwidth 340 MHz Analog signal format system NTSC, PAL HDCP Yes HDCP version 1.4/2.2 Product colour Black Ports & interfacesRJ-45 input ports 1 Ports & interfacesHDBaseT port Yes Number of HDMI outputs 1 PowerPower source type DC Operating voltage 48 V Power consumption (typical) 30 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 76 mm Depth 30 mm Height 88 mm Weight 154 g |
| Essential qualities |
|
Write Your Own Review
