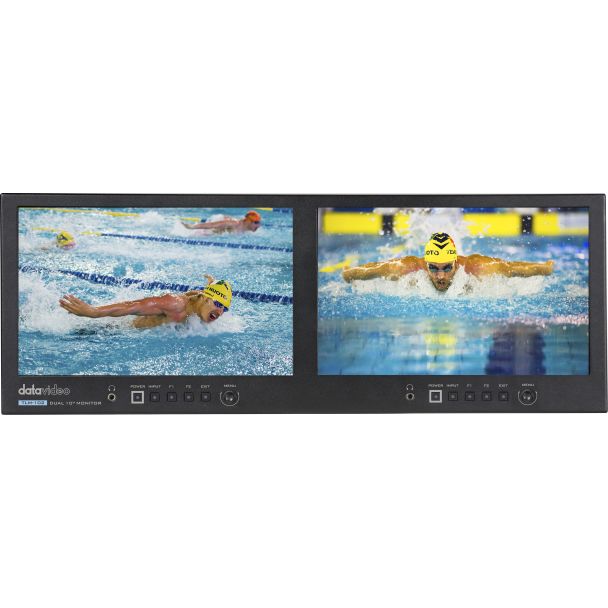

DataVideo TLM-102 Rack monitor
GTIN: 0672255007440
Dual 10.1" 1280 x 800 IPS rack mount monitor in 4RU with 3G-SDI and HDMI inputs and loop-through per screen, built-in waveform/vectorscope and SDI/HDMI cross conversion.
Datavideo TLM-102 Dual 10.1" 4RU Rack Mount Monitor
The Datavideo TLM-102 is a dual 10.1" 4RU rack mount monitoring system with built-in vectorscope/waveform monitor and video signal converters. Each monitor has one SDI and one HDMI input and one SDI and one HDMI output. Thanks to the built-in signal conversion, each monitor can use one input for display and the other for signal conversion, on both monitors at the same time. The 4RU design suits on-site monitoring, video walls and production vans. Paired with the SE-500HD video switcher it can show the multiview on one side and the programme output on the other.
Key features
- Two 1280 x 800 IPS panels in 4RU
- 3G-SDI input with loop-through output
- HDMI input with loop-through output
- Column (YRGB peak), time code, waveform, vectorscope, audio level meter, peaking, zoom, pixel to pixel, underscan, check field
- SDI/HDMI cross conversion
- Individual brightness, contrast, saturation and backlight adjustment per monitor
- Selectable colour temperature
- Front panel headphone jacks
- User-definable F1 and F2 buttons
Specifications
- Display: 2 x 10.1" IPS, 1280 x 800
- Brightness: 300 cd/m²
- Contrast ratio: 800:1
- Viewing angle: 170° (H/V)
- Rack height: 4U
- Input voltage: 12 V DC
- Power consumption: 28 W
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 2100-0102 |
| Ean | 0672255007440 |
| Modified on | 01-03-2019 |
| Product title | DataVideo TLM-102 Rack monitor |
| Long Product Name | Dual 10.1" Monitor, 1280x800px, 4RU |
| Product specifications | FeaturesType* Rack monitor Product colour* Black Rack capacity 4U DisplayDisplay diagonal 25.6 cm (10.1") Display resolution 1280 x 800 pixels Display brightness 300 cd/m² Viewing angle, horizontal 170° Viewing angle, vertical 170° DisplayContrast ratio (typical) 800:1 Ports & interfacesHDMI ports quantity 4 PowerPower source DC Input voltage 12 V Power consumption (typical) 28 W |
