DataVideo TLM-170FM computer monitor 43.2 cm (17") 1920 x 1080 pixels LCD Black
GTIN: 0672255009253
17.3" pull-out ScopeView production monitor with Full HD 1920 x 1080 IPS panel, 12G-SDI and HDMI 2.0 inputs with loop-through up to DCI 4K, waveform, vectorscope, HDR (HLG, ST 2084) and tally light.

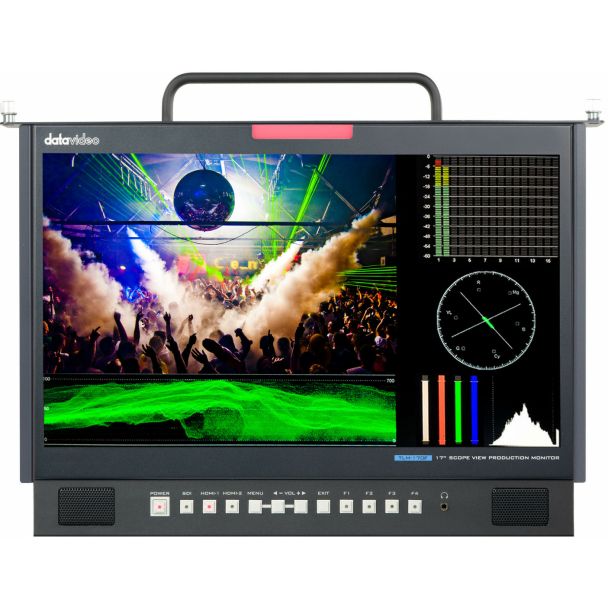

Datavideo TLM-170FM 17" ScopeView Production Monitor - Pull-Out
The Datavideo TLM-170FM is a pull-out 17-inch 4K UHD production monitor with a Full HD 1920 x 1080 IPS panel, 178° viewing angle, 300 cd/m² brightness and 700:1 contrast ratio. The 12G-SDI and HDMI 2.0 inputs with loop-through outputs support DCI 4K and Ultra HD signals up to 4K/60p on both input and output.
It offers professional monitoring tools including waveform, vectorscope, focus peaking, false colour, histogram, zoom, screen markers and image flip, supports HDR for HLG and SMPTE 2084, and provides Rec. 709 and DCI-P3 colour space presets. A tally light is included, making it suitable for broadcast and live production.
Key features
- Supports DCI 4K and UHD 4K/60p input and output, DCI-P3 colour space
- HDR support (HLG, SMPTE 2084) and Rec. 709 / DCI-P3 presets
- Monitoring functions: column (YRGB peak), time code, waveform, vectorscope, audio vector, focus peaking, false colour, histogram, zoom, pixel to pixel, exposure, screen markers, image flip, camera log, HDR/SDR
- Tally light
Specifications
- Display: 17.3" IPS LCD, LED backlight, 1920 x 1080
- Brightness: 300 cd/m²
- Contrast ratio: 700:1
- Viewing angle: 178°
- Inputs: 1 x 12G-SDI, 2 x HDMI 2.0
- Loop-through outputs: 1 x 12G-SDI, 1 x HDMI 2.0
- Speakers: 2 x 3 W
- Operating temperature: 0-40 °C
- Power consumption: 34.6 W
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 2100-0152 |
| Ean | 0672255009253 |
| Modified on | 22-09-2022 |
| Product title | DataVideo TLM-170FM computer monitor 43.2 cm (17") 1920 x 1080 pixels LCD Black |
| Long Product Name | 17.3" LED Backlit, 1920x1080, 300cd/m², 700:1, 1 x 12G SDI, 3 x HDMI (2.0), Speaker x 2 (3W), 403 x 305 x 37 mm, 4.7kg |
| Product specifications | DisplayDisplay diagonal* 43.2 cm (17") Display resolution* 1920 x 1080 pixels Native aspect ratio* 16:9 Display technology* LCD LED backlight Yes Touchscreen* No Display brightness (typical) 300 cd/m² Screen shape* Flat Supported graphics resolutions 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 Supported video modes 480i, 525i, 576i, 625i, 720p, 1080i, 1080p, 2160p Aspect ratio 4:3, 16:9 Contrast ratio (typical)* 700:1 Viewing angle, horizontal 89° Viewing angle, vertical 89° High Dynamic Range (HDR) supported Yes PerformanceNVIDIA G-SYNC* No AMD FreeSync* No MultimediaBuilt-in speaker(s)* Yes Built-in camera* No Number of speakers 2 RMS rated power 3 W DesignMarket positioning* Business Product colour* Black Ports & interfacesBuilt-in USB hub* No HDMI* Yes HDMI ports quantity 3 HDMI version 2.0 12G-SDI ports quantity 2 Audio input Yes Audio output Yes ErgonomicsHeight adjustment* No PowerPower consumption (typical)* 34.6 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth (with stand) 305 mm Depth (with stand) 37 mm Height (with stand) 403 mm Weight (with stand) 4.7 kg |
| Essential qualities |
|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| Screen shape | Flat |
| Contrast ratio (typical) | 700:1 |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Market positioning | Business |
| Product colour | Black |
| Built-in USB hub | No |
| HDMI | Yes |
| Height adjustment | No |
| Power consumption (typical) | 34.6 W |
