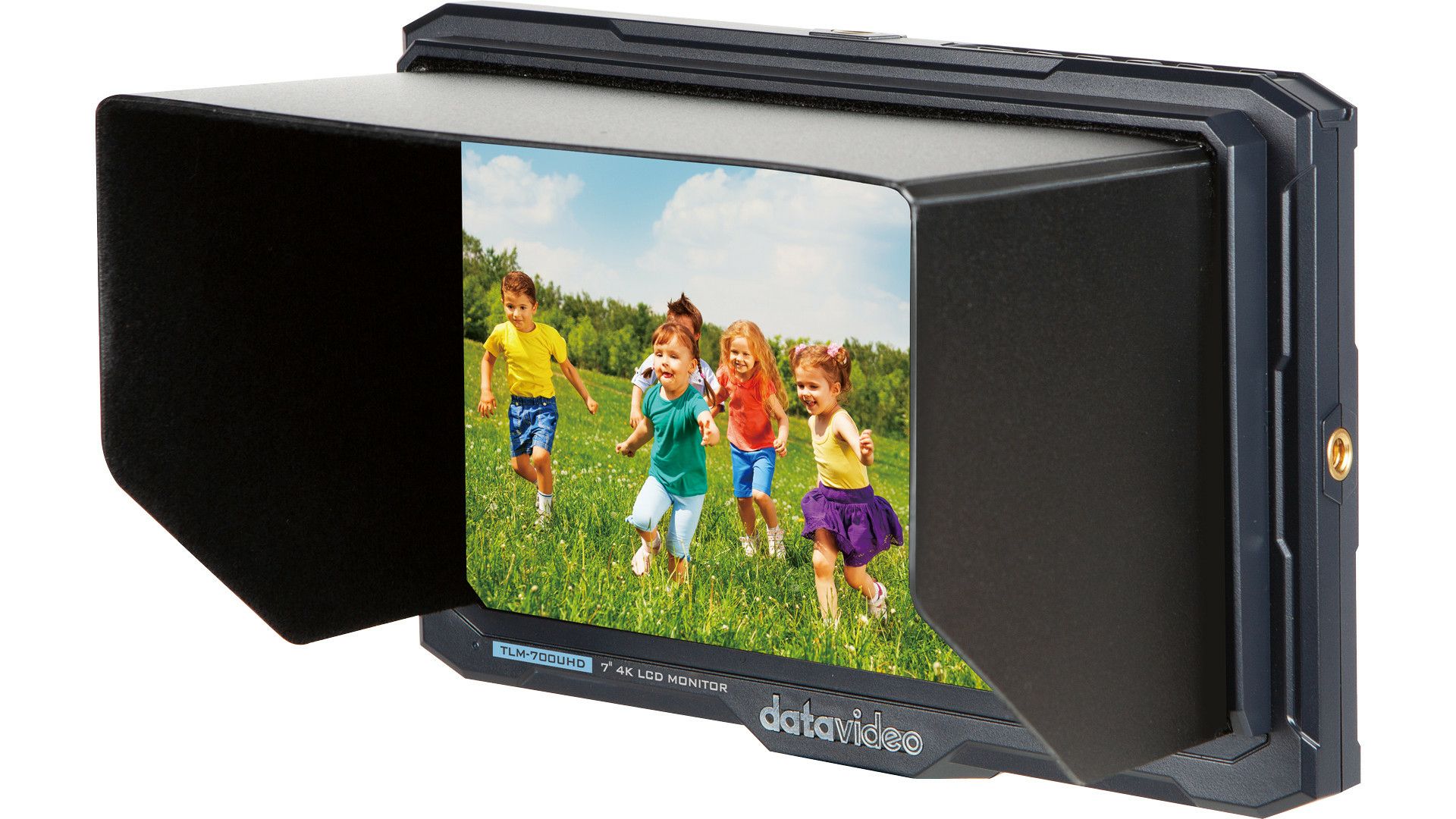

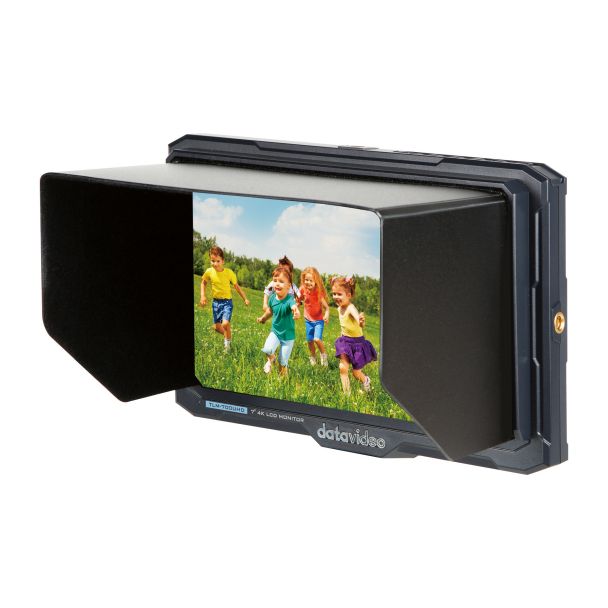

DataVideo TLM-700UHD 17.8 cm (7") Black 1920 x 1200 pixels
GTIN: 0672255008867
7" on-camera monitor with 1920 x 1200 panel accepting 4K 50/60p HDMI 2.0 signals, with HDMI loop-out, focus peaking, exposure analysis, colour field check, screen flip, zoom and markers.
Datavideo TLM-700UHD 7" 4K HDMI Monitor
The Datavideo TLM-700UHD is a 7" monitor that accepts 4K 50/60p HDMI inputs, with a 1920 x 1200 panel and 170° viewing angle. It supports DCI 4K and Ultra HD signals on input and loop-out and is compatible with DSLRs, mirrorless cameras and camcorders. Red/green/blue focus peaking helps to judge focus during shooting, recording and playback, while over-exposure analysis shows areas that are too bright. Monochrome and red, green or blue-only modes help with colour checking, the image can be flipped vertically and horizontally for mounting on tripods, arms and cages, and safety and aspect markers simulate the final framing.
Key features
- 1 x HDMI input with loop-out
- Compatible with DSLRs, mirrorless cameras and camcorders
- Red/green/blue focus peaking
- Over-exposure analysis
- Colour field check: monochrome, red, green, blue only
- Vertical and horizontal screen flip
- Zoom 1.5x / 2x / 3x / 4x
- Safety markers 95/93/90/88/85/80% and aspect markers 16:9, 1.85:1, 2.35:1, 4:3, 3:2
Specifications
- Display: 7" TFT LCD, 1920 x 1200
- Brightness: 450 cd/m²
- Contrast ratio: 1000:1
- HDMI: 2.0, HDCP 2.2
- Input formats: up to 4096 x 2160 and 3840 x 2160 at 60p
- Built-in speaker
- Input voltage: 12 V
- Power consumption: 12 W (max)
- Operating temperature: 0-40 °C
- Dimensions: 182 x 129 x 37 mm
- Weight: 300 g
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 2100-0720 |
| Ean | 0672255008867 |
| Product colour | Black |
| Modified on | 31-03-2022 |
| Product title | DataVideo TLM-700UHD 17.8 cm (7") Black 1920 x 1200 pixels |
| Long Product Name | 7" TFT LCD, 1920x1200, 450cd/m², 1000:1, 2x HDMI (2.0), HDCP 2.2, 182 x 129 x 37 mm, 0.3 kg |
| Product specifications | DisplayDisplay diagonal* 17.8 cm (7") Display resolution* 1920 x 1200 pixels LED backlight* No Touchscreen* No Display technology TFT Aspect ratio 1.85:1, 2.35:1, 3:2, 4:3, 16:9 Display brightness 450 cd/m² Viewing angle, horizontal 85° Viewing angle, vertical 85° Contrast ratio (typical) 1000:1 FeaturesResolution at capture speed 3840x2160@23.98fps, 3840x2160@24fps, 3840x2160@25fps, 3840x2160@29.97fps, 3840x2160@30fps, 3840x2160@60fps, 4096x2160@23.98fps, 4096x2160@24fps, 4096x2160@25fps, 4096x2160@30fps Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p DesignProduct colour* Black Built-in speaker(s) Yes DesignNumber of speakers 1 Ports & interfacesHDMI ports quantity 2 HDMI in 1 HDMI version 2.0 PowerInput voltage 12 V Power consumption (max) 12 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 182 mm Depth 37 mm Height 129 mm Weight 300 g |
| Essential qualities |
|
| Display diagonal | 17.8 cm (7") |
| Display resolution | 1920 x 1200 pixels |
| LED backlight | No |
| Touchscreen | No |
