Decimator Design DMON-16SL Red 1920 x 1080 pixels NTSC, PAL Built-in display LCD
GTIN: 5060417390137
3G/HD/SD-SDI multiviewer with 16 auto-detecting inputs and HDMI output, custom layouts, UMD and audio ID overlays, full-screen switching and pass-through, with LCD and button control.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

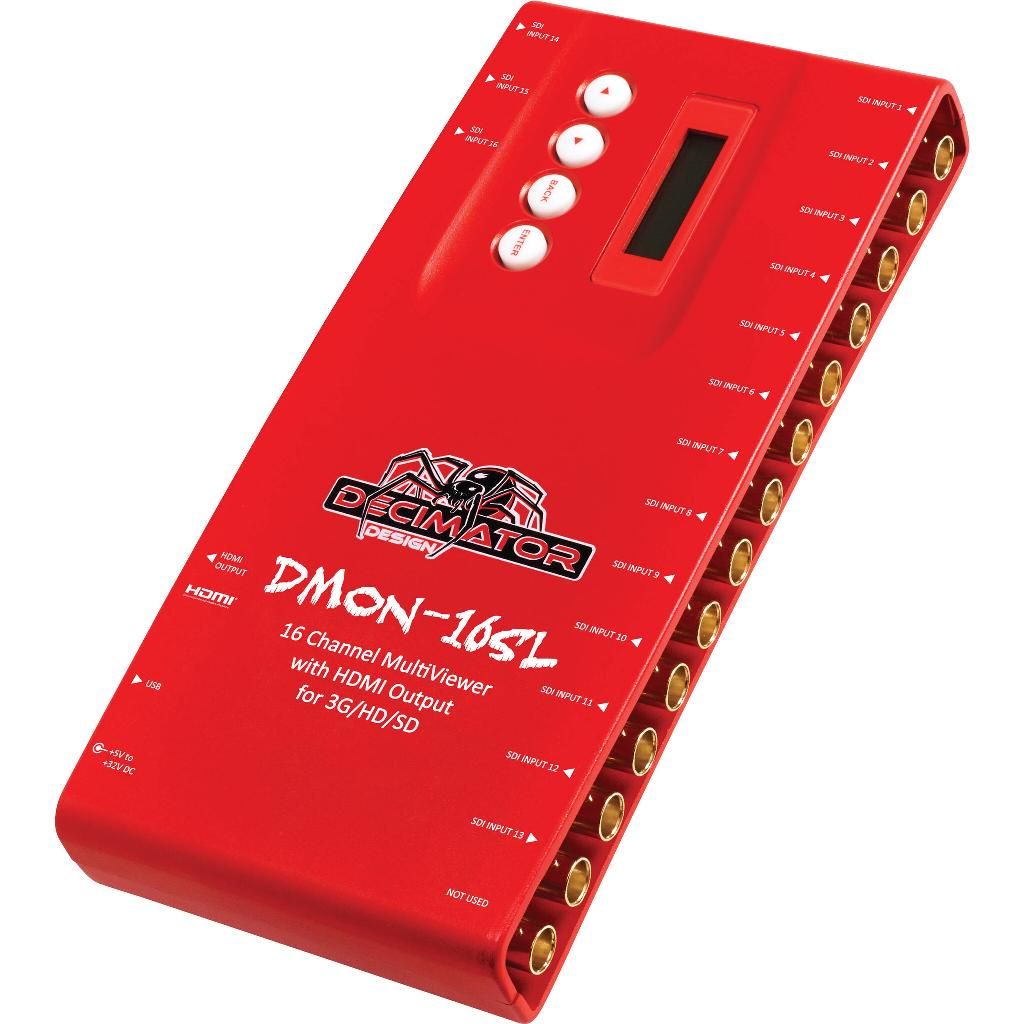

Decimator Design DMON-16SL 1 to 16 Channel MultiViewer
The Decimator Design DMON-16SL is a compact 1 to 16 channel multiviewer for 3G/HD/SD-SDI sources with an HDMI output. The 16 SDI inputs auto-detect 26 formats and support 3G level A and B; each window is independent, so any 3G/HD/SD format at any frame rate can be shown at the same time, with low latency buffering for non-synchronous inputs. Custom layouts, a 16-character UMD per window, audio ID overlay and variable aspect ratios are available, and in pass-through mode the selected input is sent to the HDMI output. Settings are made on the built-in LCD and buttons, without dip switches or a computer.
Key features
- 16 x 3G/HD/SD-SDI inputs with auto detection (26 formats)
- HDMI output
- Supports 3G level A and B on the inputs
- Custom layouts with various standard layouts, save and recall
- 16-character UMD overlay per window and audio ID overlay
- Fast full-screen switching and pass-through to HDMI
- Selectable output format in full-screen and multiviewer mode
- Variable aspect ratio per window
- USB port for control and firmware updates
- Heavy duty metal box
In the box
- 1 x DMON-16SL
- 1 x Power supply
- 1 x HDMI cable
- 1 x USB cable
Specifications
- Output formats: 720p, 1080i, 1080p
- Dimensions: 220 x 103.7 x 29.5 mm
- Colour: red
| Product Condition | New |
|---|---|
| Manufacturer | Decimator Design |
| manufacturer code | DD-16SL |
| Ean | 5060417390137 |
| Housing colour | Red |
| Built-in display | Yes |
| Display technology | LCD |
| Modified on | 15-02-2019 |
| Product title | Decimator Design DMON-16SL Red 1920 x 1080 pixels NTSC, PAL Built-in display LCD |
| Long Product Name | 1 to 16 Channel MultiViewer, SDI/HDMI, 1080p, 5-32V DC, NTSC/PAL, Red |
| Product specifications | FeaturesMaximum resolution* 1920 x 1080 pixels Supported video modes 720p, 1080i, 1080p Analog signal format system* NTSC, PAL Audio ID overlay Yes Low latency buffering Yes DesignHousing colour* Red Housing material Aluminium Built-in display* Yes Display technology* LCD Control type Buttons Ports & interfacesHDMI output ports quantity 1 Ports & interfaces3G/HD/SD-SDI outputs quantity 16 USB port Yes DC-in jack Yes PowerDC input voltage 32 V Weight & dimensionsWidth 220 mm Depth 103.7 mm Height 29.5 mm Packaging contentPower supply included Yes Cables included HDMI, USB |
| Analog signal format system | NTSC, PAL |
| Maximum resolution | 1920 x 1080 pixels |
