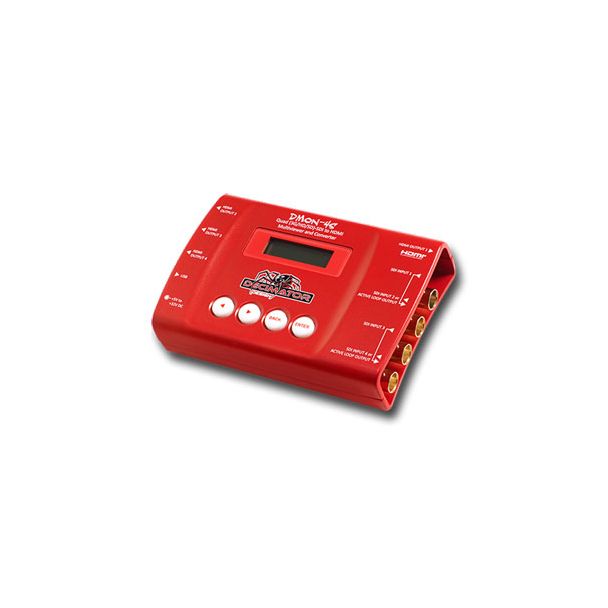

Decimator Design DMON-4S Red 1920 x 1080 pixels NTSC, PAL Built-in display LCD

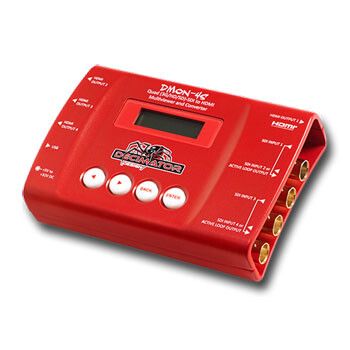

Decimator Design DMON-4S 4 x SDI to HDMI Converter with 1 to 4 MultiViewer

The Decimator Design DMON-4S combines four SDI to HDMI converters and a multiviewer. Its four mini HDMI outputs can each show any of the four 3G/HD/SD-SDI inputs or a multiview of all of them: for example four independent SDI to HDMI converters, three converters plus a quad-split output, two converters with loop-through, or one SDI or multiview signal to four HDMI outputs. Inputs 2 and 4 can be switched to active loop copies of inputs 1 and 2. Multiview mode offers custom layouts, per-window 16-character UMD and 8-channel audio meters, image flipping and independent windows that accept any 3G/HD/SD format and frame rate.

Key features

• 4 x 3G/HD/SD-SDI inputs, 4 x mini HDMI outputs
• Each HDMI output can show any input or the multiview
• Inputs 2 and 4 configurable as active loop outputs
• Supports 3G level A and B on the inputs
• Custom layouts with save and recall, fast full-screen switching
• 16-character UMD and 8-channel audio metering overlay per window
• Horizontal and/or vertical image flipping per window
• Audio selectable from any input
• LCD and button control
• USB port for control and firmware updates
• Heavy duty metal box with metal thread locking DC power socket

In the box

• 1 x DMON-4S
• 1 x Power supply
• 1 x HDMI cable
• 1 x USB cable

Specifications

• Output formats: 720p, 1080i, 1080p (NTSC/PAL SD)
• Dimensions: 79.5 x 123 x 29.5 mm
• Colour: red
