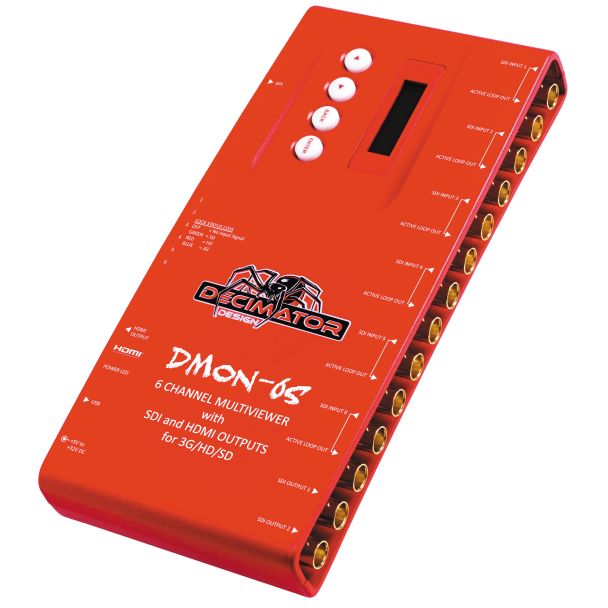

Decimator Design DMON-6S Red 1920 x 1080 pixels NTSC, PAL Built-in display LCD
GTIN: 5060417390083
3G/HD/SD-SDI multiviewer with 6 inputs, 6 active loop outputs and linked SDI and HDMI outputs, custom layouts, UMD, audio metering and tally overlays, 32 GPI and RS-422/485 for TSL.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

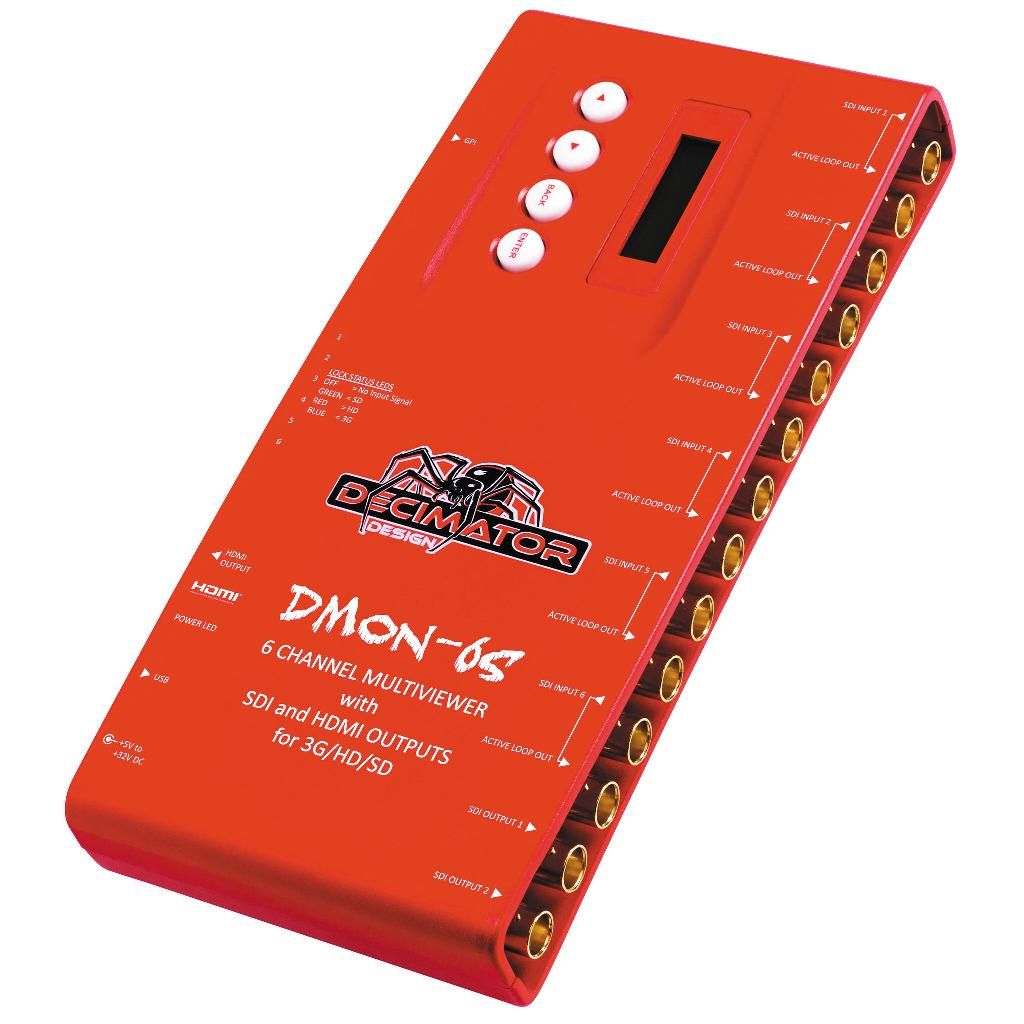

Decimator Design DMON-6S 1 to 6 Channel MultiViewer
The Decimator Design DMON-6S is a compact 1 to 6 channel multiviewer or 6 to 1 input multiplexer for 3G/HD/SD-SDI, with active loop copies of each of the six inputs. The SDI inputs auto-detect 26 formats and each window is independent, so any 3G/HD/SD format at any frame rate can be displayed at the same time, with low latency buffering for non-synchronous sources. Custom and standard layouts, per-window UMD, 16-channel audio meters, safe area and tally overlays are available, and a pass-through mode routes any input to both the SDI and HDMI outputs. Settings are made on the built-in LCD and buttons, without dip switches or a computer.
Key features
- 6 x 3G/HD/SD-SDI inputs with auto detection (26 formats)
- 6 x 3G/HD/SD-SDI active loop outputs
- Linked 3G/HD/SD-SDI and HDMI outputs
- Supports 3G level A and B, with conversion between them
- Custom layouts with various standard layouts, save and recall
- 16-character UMD and 16-channel audio metering overlay per window
- Safe action, safe title, centre cross and audio ID overlays
- Up to 4 tallies per window (green, red, blue, yellow)
- Fast full-screen switching and pass-through mode
- 32 GPI and RS-422/485 on 37-pin D-SUB for tallies, remote switching and dynamic UMD via TSL
- USB port for control and firmware updates
- Heavy duty metal box with metal thread locking DC power socket
In the box
- 1 x DMON-6S
- 1 x Power supply
- 1 x HDMI cable
- 1 x USB cable
Specifications
- Output formats: 720p, 1080i, 1080p (NTSC/PAL SD)
- Colour: red
| Product Condition | New |
|---|---|
| Manufacturer | Decimator Design |
| manufacturer code | DD-6S |
| Ean | 5060417390083 |
| Housing colour | Red |
| Built-in display | Yes |
| Display technology | LCD |
| Modified on | 15-02-2019 |
| Product title | Decimator Design DMON-6S Red 1920 x 1080 pixels NTSC, PAL Built-in display LCD |
| Long Product Name | 1 to 12 Channel MultiViewer, SDI/HDMI, 1080p, 5-32V DC, NTSC/PAL, Red |
| Product specifications | FeaturesMaximum resolution* 1920 x 1080 pixels Supported video modes 720p, 1080i, 1080p Analog signal format system* NTSC, PAL Update Manager Download Service (UMDs) Yes Audio ID overlay Yes Low latency buffering Yes DesignHousing colour* Red Housing material Aluminium Built-in display* Yes Display technology* LCD Control type Buttons Ports & interfacesHDMI output ports quantity 1 Ports & interfaces3G/HD/SD-SDI outputs quantity 12 USB port Yes RS-422/485 ports 1 DC-in jack Yes PowerDC input voltage 32 V Weight & dimensionsWidth 220 mm Depth 103.7 mm Height 29.5 mm Packaging contentPower supply included Yes Cables included HDMI, USB |
| Analog signal format system | NTSC, PAL |
| Maximum resolution | 1920 x 1080 pixels |
