Decimator Design MD-CROSS V2 Red 1920 x 1080 pixels NTSC, PAL Built-in display LCD
GTIN: 5060417390038
HDMI / 3G-SDI cross converter with scaling, frame rate conversion, 14 routing modes, four SDI outputs, overlays, test pattern and audio tone generator, with LCD and button control.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

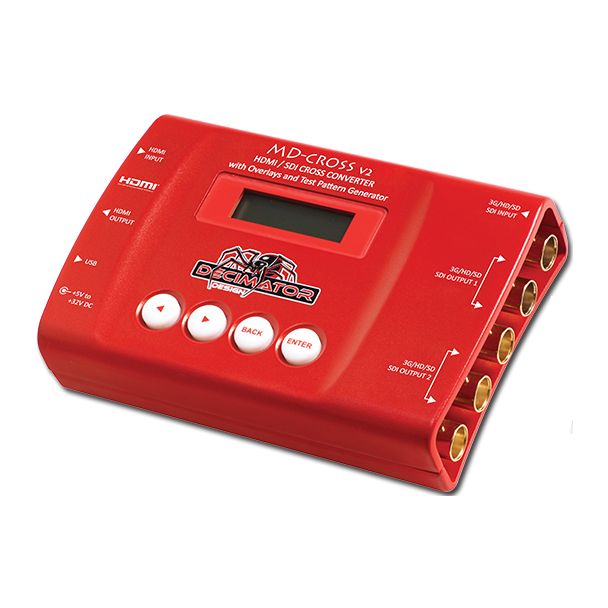

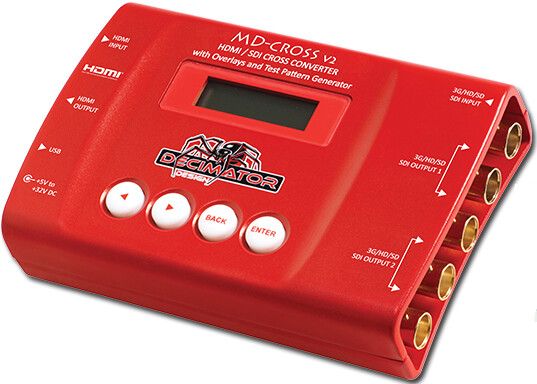

Decimator Design MD-CROSS V2 HDMI / SDI Cross Converter
The Decimator Design MD-CROSS V2 is a portable HDMI / SDI cross converter that includes the down/up/cross converter of the MD-DUCC, so either the HDMI or the SDI input can be scaled and/or frame rate converted to the required standard. Fourteen modes combine the SDI and HDMI inputs, direct or scaled, towards the SDI and HDMI outputs. Four 3G/HD/SD-SDI outputs allow use as a 1 to 4 distribution amplifier, with output pair 1 copying the SDI input or matching pair 2. A test pattern generator, 16-channel audio meters, safe area and text overlays are built in, and everything is set from the LCD and buttons, without dip switches or a computer.
Key features
- HDMI and 3G/HD/SD-SDI inputs, HDMI and 4 x 3G/HD/SD-SDI outputs
- Down/up/cross conversion with frame rate conversion
- 14 routing modes between direct and scaled inputs
- Supports 3G level A and B, with conversion between them
- Horizontal and/or vertical image flipping
- Test pattern generator: 26 output formats and 54 patterns, including luma and chroma zone plates
- Audio tone generator
- 16-channel audio metering, safe title/action, centre cross and text overlays
- LCD and button control
- USB port for control and firmware updates
- Metal thread locking DC power socket
In the box
- 1 x MD-CROSS V2
- 1 x Power supply
- 1 x HDMI cable
- 1 x USB cable
Specifications
- Output formats: 720p, 1080i, 1080p (NTSC/PAL SD)
- Dimensions: 79.5 x 123 x 29.5 mm
- Colour: red
| Product Condition | New |
|---|---|
| Manufacturer | Decimator Design |
| manufacturer code | DD-CROSS |
| Ean | 5060417390038 |
| Housing colour | Red |
| Built-in display | Yes |
| Display technology | LCD |
| Modified on | 15-02-2019 |
| Product title | Decimator Design MD-CROSS V2 Red 1920 x 1080 pixels NTSC, PAL Built-in display LCD |
| Long Product Name | SDI/HDMI, 1080p, 5-32V DC, NTSC/PAL, Red |
| Product specifications | FeaturesMaximum resolution* 1920 x 1080 pixels Supported video modes 720p, 1080i, 1080p Analog signal format system* NTSC, PAL DesignHousing colour* Red Housing material Metal Built-in display* Yes Display technology* LCD Control type Buttons Ports & interfacesHDMI output ports quantity 2 3G/HD/SD-SDI outputs quantity 4 Ports & interfacesUSB port Yes DC-in jack Yes PowerDC input voltage 32 V Weight & dimensionsWidth 79.5 mm Depth 123 mm Height 29.5 mm Packaging contentPower supply included Yes Cables included HDMI, USB |
| Analog signal format system | NTSC, PAL |
| Maximum resolution | 1920 x 1080 pixels |
