DeLOCK 11474 AV extender AV repeater
GTIN: 4043619114740
DisplayPort 1.4 repeater (HBR3, 32.4 Gbps) that extends a DisplayPort connection up to 12 m, up to 7680 x 4320, with AC power adapter.

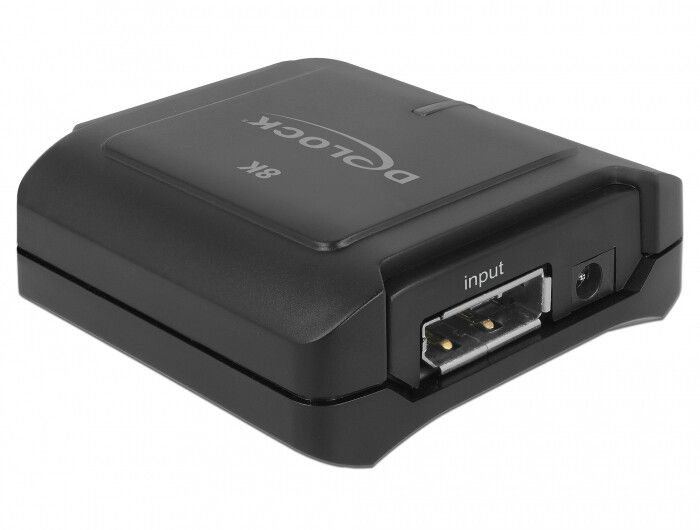

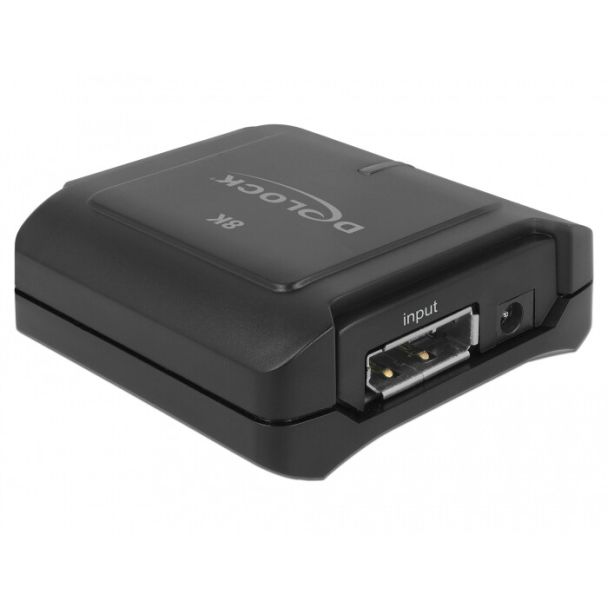

Delock DisplayPort 1.4 Repeater 8K 12 m 11474
This DisplayPort repeater by Delock amplifies the signal of a DisplayPort connection up to a total distance of 12 m. An up to 2 m long cable connects the PC or laptop to the input port, and an up to 10 m long cable runs from the output port to the display or TV. It supports DisplayPort 1.4 with HBR3 and a bandwidth of 32.4 Gbps, for resolutions up to 7680 x 4320.
In the box
- DisplayPort repeater

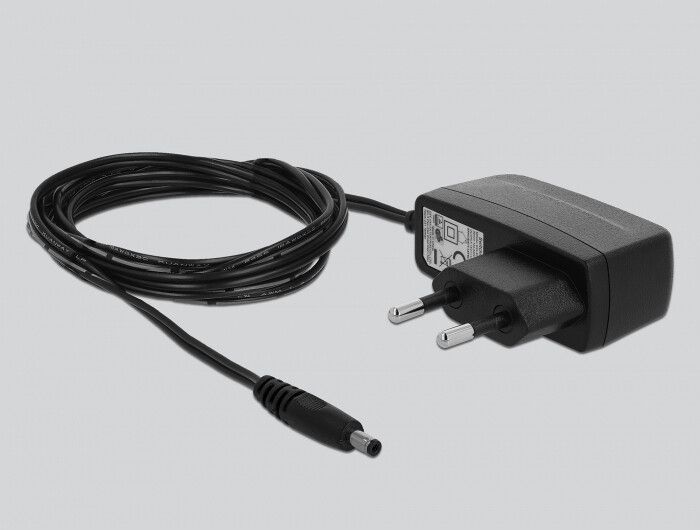

- AC power adapter
- User manual
Specifications
- Interfaces: 1 x DisplayPort in, 1 x DisplayPort out
- Standard: DisplayPort 1.4, HBR3, 32.4 Gbps
- Maximum resolution: 7680 x 4320
- Maximum distance: 12 m (2 m input + 10 m output)
- Power: DC-in jack, AC adapter 100-240 V included
- Dimensions: 55 x 54 x 20 mm
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 11474 |
| Ean | 4043619114740 |
| Taric Code | 84718000 |
| Product title | DeLOCK 11474 AV extender AV repeater |
| Long Product Name | DisplayPort 1.4, 32.4 Gbps, HBR3, AC 100-240 V, 55x54x20 mm |
| Product specifications | FeaturesType* AV repeater Maximum resolution* 7680 x 4320 pixels Maximum transfer distance 12 m Bandwidth 32.4 Gbit/s Daisy chain Yes Ports & interfacesConnectivity technology* Wired DisplayPorts in 1 DisplayPorts out 1 DC-in jack Yes PowerAC input voltage 100 - 240 V AC input frequency 50 - 60 Hz PowerOperating voltage 5 V Input current 0.2 A Output current 1 A Weight & dimensionsWidth 54 mm Depth 55 mm Height 20 mm Packaging dataPackage type Box Packaging contentAC adapter included Yes Manual Yes |
| Essential qualities |
|
| Type | AV repeater |
| Maximum resolution | 7680 x 4320 pixels |
| Connectivity technology | Wired |
