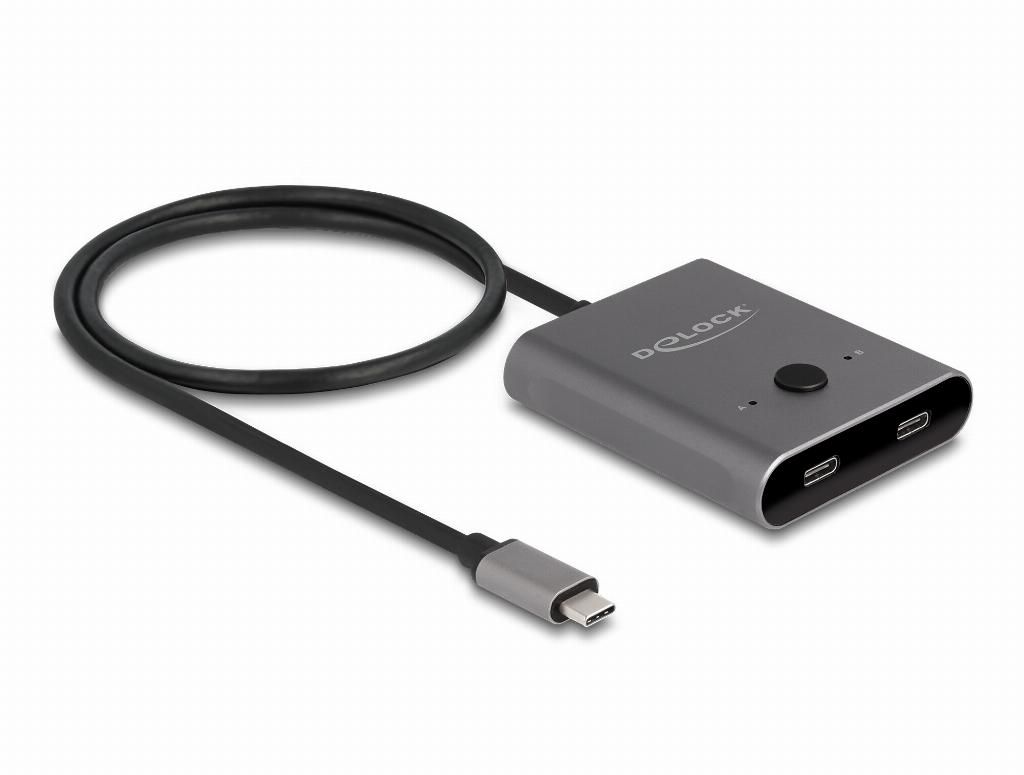

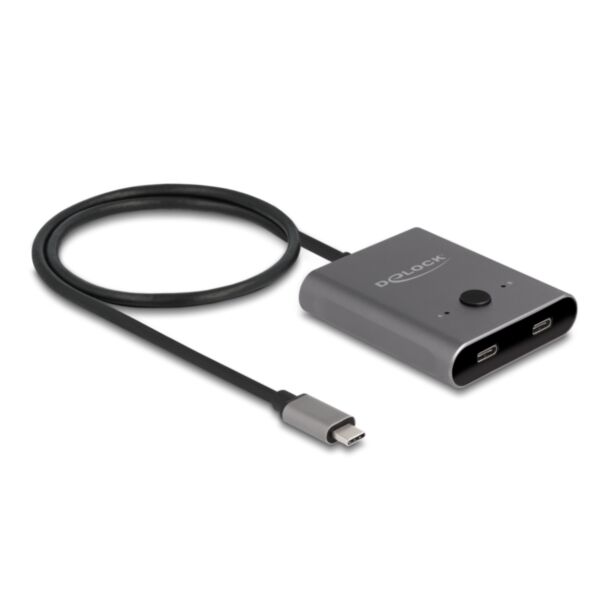

DeLOCK 11500 interface hub USB 3.2 Gen 2 (3.1 Gen 2) Type-C 10000 Mbit/s Grey
GTIN: 4043619115006
USB 10 Gbps USB Type-C Switch, 2 to 1 bidirectional, 8K, metal, dark grey
This USB Type-C™ switch by Delock is a manual bidirectional switch for connecting different devices with USB Type-C™ port. This switch offers two different applications.
Function 1
One USB Type-C™ device like a monitor or external storage can be connected to two computers. With the push of a button, you can select the computer that will be connected to the device.
Function 2
Two USB Type-C™ devices like a monitor or USB-PD charger can be connected to one computer. At the push of a button, the device that is connected to the computer can be selected.
Flexible use
The switch supports graphics signals with up to 8K resolution, USB-C™ with up to USB 10 Gbps data rate and Power Delivery with up to 100 W. This makes it flexible to use in a wide range of applications.
Note
Thunderbolt™ devices or cables are not supported.
Please use short length and high-quality cables, especially for higher resolutions.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 11500 |
| Ean | 4043619115006 |
| Taric Code | 84718000 |
| Product title | DeLOCK 11500 interface hub USB 3.2 Gen 2 (3.1 Gen 2) Type-C 10000 Mbit/s Grey |
| Long Product Name | USB 10 Gbps USB Type-C Switch, 2 to 1 bidirectional, 8K, metal, dark grey |
| Product specifications | Ports & interfacesHost interface* USB 3.2 Gen 2 (3.1 Gen 2) Type-C Hub interfaces* USB 3.2 Gen 2 (3.1 Gen 2) Type-C USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 3 Ports quantity* 4 FeaturesData transfer rate* 10000 Mbit/s Maximum refresh rate 144 Hz Supported graphics resolutions 3840 x 2160, 7680 x 4320 Supported video modes 1620p, 4320p Product colour Grey Housing material Metal USB Power Delivery (USB PD) Yes USB Power Delivery up to 100 W HD type 8K Ultra HD LED indicators Yes Cable type Round cable Cable length 0.5 m FeaturesPlug and Play Yes Country of origin China PowerPower supply type USB Output voltage 20 V Output current 5 A Weight & dimensionsWidth 57 mm Depth 66 mm Height 15 mm Packaging dataQuantity per pack 1 pc(s) Package type Hanging box Packaging contentCables included USB Type-A to USB Type-C Manual Yes |
| Essential qualities |
|
| Ports quantity | 4 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Hub interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Data transfer rate | 10000 Mbit/s |
