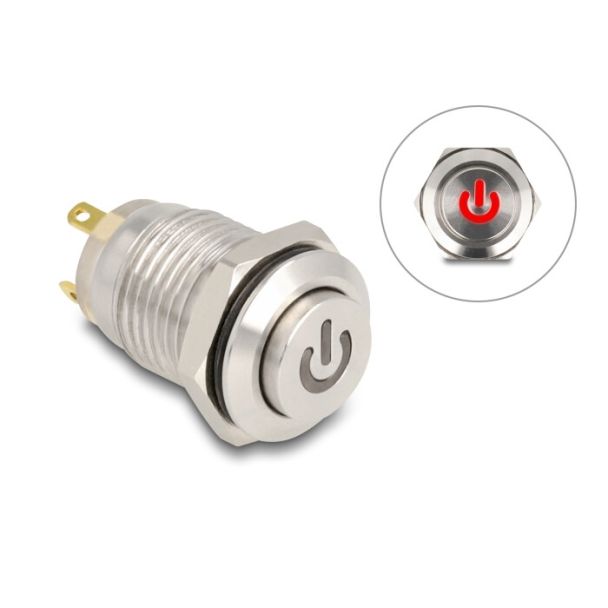

DeLOCK 20981 push-button panel Silver
GTIN: 4043619209811
Momentary push button for panel installation, 12 mm mounting hole (M12), 4 x solder connection, red LED power symbol, AC 230 V / 3 A, IP65, nickel-plated stainless steel.
Delock Push Button for Installation 12 mm 4 x Solder Connection LED Red IP65 20981
This push button by Delock is designed for installation in control panels, for example in industry or in control and regulation technology; push buttons are also used in the automotive and consumer sectors, for example as doorbells or as triggers for timed hallway lighting. A push button returns to its initial position after being pressed (momentary function). The NO (normally open) contact connects two contacts when pressed, while the NC (normally closed) contact opens them.
Specifications
- Mounting hole: approx. 12 mm (thread M12)
- Connectors: 4 x solder connection
- Switch type: 1 NO + 1 NC
- Switching voltage: AC 230 V / 3 A
- Function: momentary
- Actuator: high
- Nut spanner width: 14 mm
- Mounting depth: approx. 18 mm
- LED: red, 12 V, power symbol
- Operating temperature: -25 °C to 55 °C
- Protection: IP65
- Material: stainless steel, nickel plated
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 20981 |
| Ean | 4043619209811 |
| Taric Code | 84718000 |
| Product title | DeLOCK 20981 push-button panel Silver |
| Long Product Name | Push Button for Installation 12 mm 4 x solder connection LED red power symbol, IP65, M12, stainless steel nickel plated |
| Product specifications | DesignProduct colour Silver Material Nickel, Stainless steel Technical detailsNumber of buttons 1 buttons Connector(s) 4 x solder connection International Protection (IP) code IP65 Illuminable Yes PowerInput voltage 230 V Maximum current 3 A Weight & dimensionsWidth 23 mm Depth 14 mm |
| Essential qualities |
|
