DeLOCK 20985 push-button panel Silver
GTIN: 4043619209859
Momentary push button for panel installation, 19 mm mounting hole (M19), 3 x solder connection, AC 230 V / 3 A, IP65, nickel-plated stainless steel.

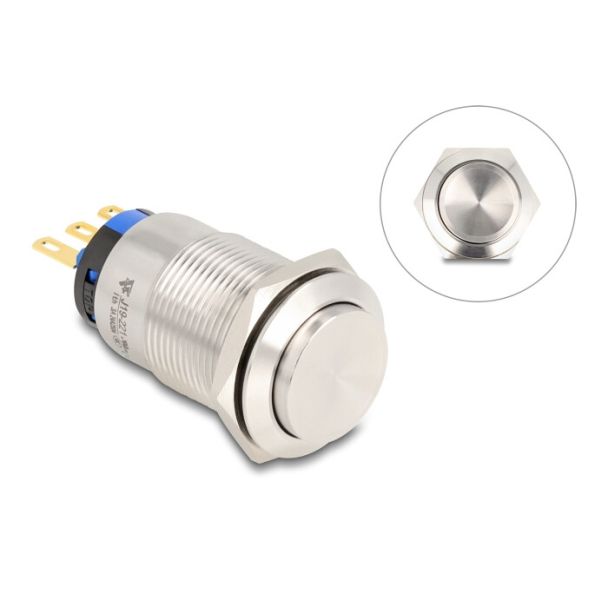

Delock Push Button for Installation 19 mm 3 x Solder Connection IP65 20985
This push button by Delock is designed for installation in control panels, for example in industry or in control and regulation technology; push buttons are also used in the automotive and consumer sectors, for example as doorbells or as triggers for timed hallway lighting. A push button returns to its initial position after being pressed (momentary function). The NO (normally open) contact connects two contacts when pressed, while the NC (normally closed) contact opens them.
Specifications
- Mounting hole: approx. 19 mm (thread M19)
- Connectors: 3 x solder connection
- Switch type: 1 NO + 1 NC
- Switching voltage: AC 230 V / 3 A
- Function: momentary
- Actuator: high
- Nut spanner width: 22 mm
- Mounting depth: approx. 35 mm
- Protection: IP65
- Material: stainless steel, nickel plated
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 20985 |
| Ean | 4043619209859 |
| Taric Code | 84718000 |
| Product title | DeLOCK 20985 push-button panel Silver |
| Long Product Name | Push Button for Installation 19 mm 3 x solder connection, M19, IP65, stainless steel nickel plated |
| Product specifications | DesignProduct colour Silver Material Nickel, Stainless steel Technical detailsNumber of buttons 1 buttons Connector(s) 3 x solder connection International Protection (IP) code IP65 Illuminable No PowerInput voltage 230 V Maximum current 3 A Weight & dimensionsWidth 43 mm Depth 25 mm |
