DeLOCK 80527 sensor/actuator cable 5 m RST M12 Black
GTIN: 4043619805273

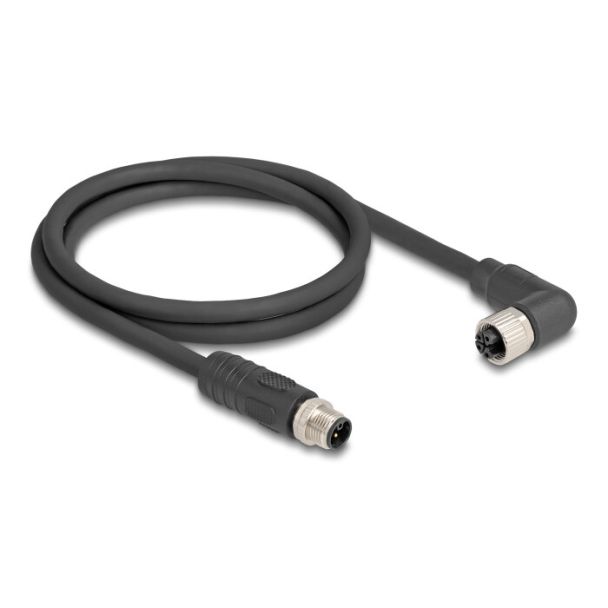

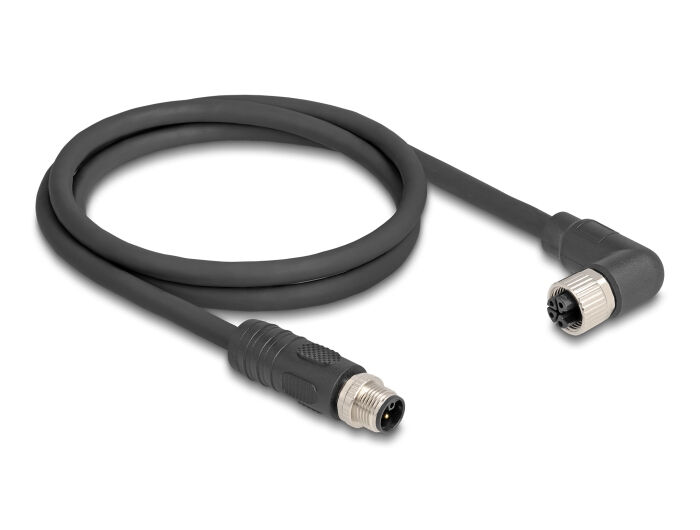

M12 L-coded 4 pin power cable, M12 male straight to M12 female right angled, 5 m, 16 AWG (1.5 mm²), 12 A / 63 V, PUR jacket, black.
Delock M12 power cable L-coded 4 pin M12 male straight to M12 female right angled 5 m black 80527
This M12 sensor cable by Delock can be used for direct current applications. The L-coded version has 4 power contacts with a rated current of 12 A at 63 V, with which currents can be reliably transmitted. It can be used to supply power to fieldbus components, power supply units, industrial machines and motors, for example where a high current and low voltage are required.
Specifications
- Connector 1: M12 male, straight, 4 pin, L-coded
- Connector 2: M12 female, right angled, 4 pin, L-coded
- Rated current / voltage: 12 A / 63 V
- Wire gauge: 16 AWG (1.5 mm²), copper
- Cable diameter: 7.2 mm
- Jacket: polyurethane (PUR), oil-resistant
- Cable length: 5 m
- Operating temperature: -40 to 80 °C
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 80527 |
| Ean | 4043619805273 |
| Taric Code | 84718000 |
| Product title | DeLOCK 80527 sensor/actuator cable 5 m RST M12 Black |
| Long Product Name | 1 x M12 male 4 pin L-coded straight, 1 x M12 female 4 pin L-coded right angled, 16 AWG (1.5 mm²), 12 A / 63 V, Ø 7.2mm, 5m |
| Product specifications | FeaturesCable length* 5 m Cable type* RST Connector 1* M12 Connector 2* M12 Connector gender* Male/Female Cable colour* Black Conductor material Copper AWG wire size 16 Jacket material Polyurethane (PUR) FeaturesRated voltage 63 V Bending radius (max) 7.2 cm Oil-resistant Yes Operational conditionsOperating temperature (T-T) -40 - 80 °C Packaging dataQuantity 1 Package type Polybag |
| Essential qualities |
|
| Cable length | 5 m |
| Cable type | RST |
| Connector 1 | M12 |
| Connector 2 | M12 |
| Connector gender | Male/Female |
| Cable colour | Black |
