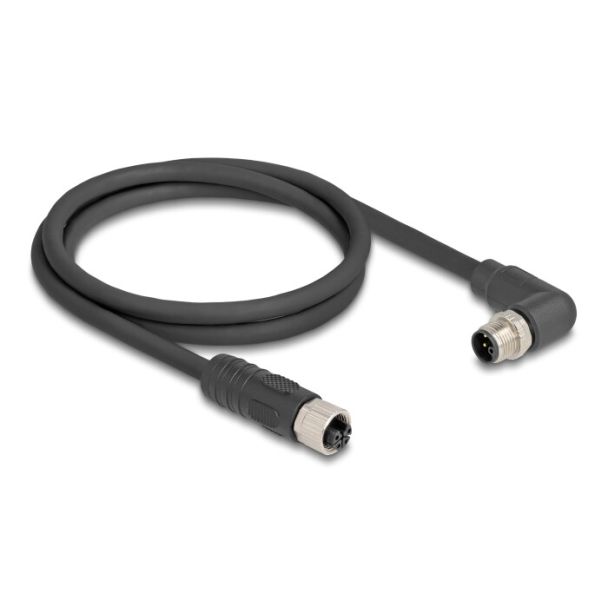

DeLOCK 80529 sensor/actuator cable 2 m RST M12 Black
GTIN: 4043619805297
M12 L-coded 4 pin power cable, M12 male right angled to M12 female straight, 2 m, 16 AWG (1.5 mm²), 12 A / 63 V, PUR jacket, black.

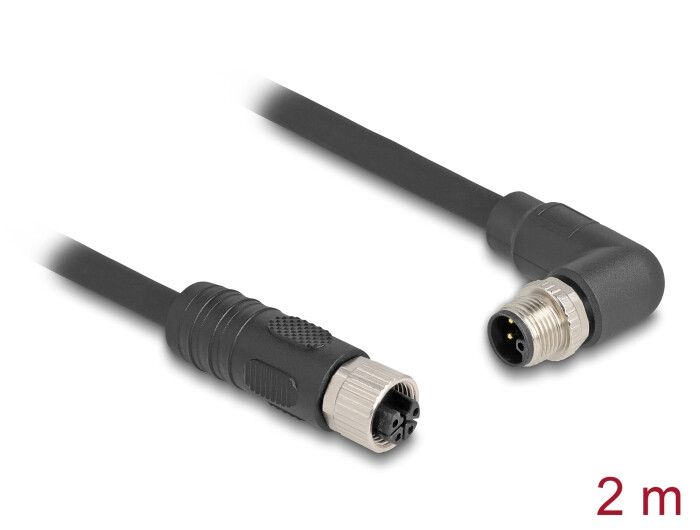

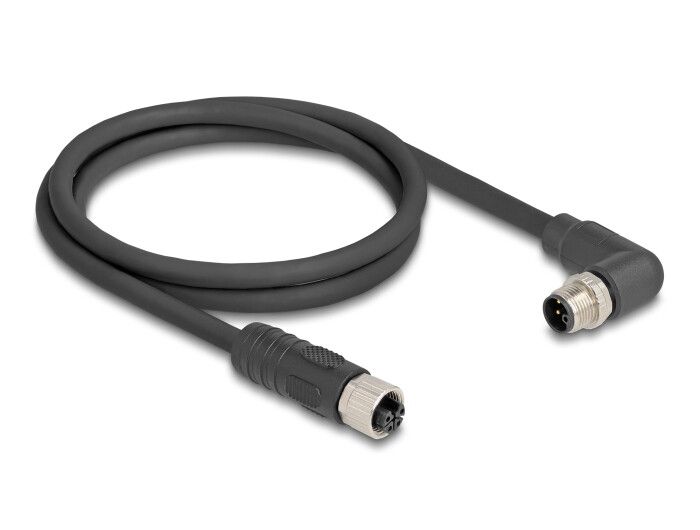

Delock M12 power cable L-coded 4 pin M12 male right angled to M12 female straight 2 m black 80529
This M12 sensor cable by Delock can be used for direct current applications. The L-coded version has 4 power contacts with a rated current of 12 A at 63 V, with which currents can be reliably transmitted. It can be used to supply power to fieldbus components, power supply units, industrial machines and motors, for example where a high current and low voltage are required.
Specifications

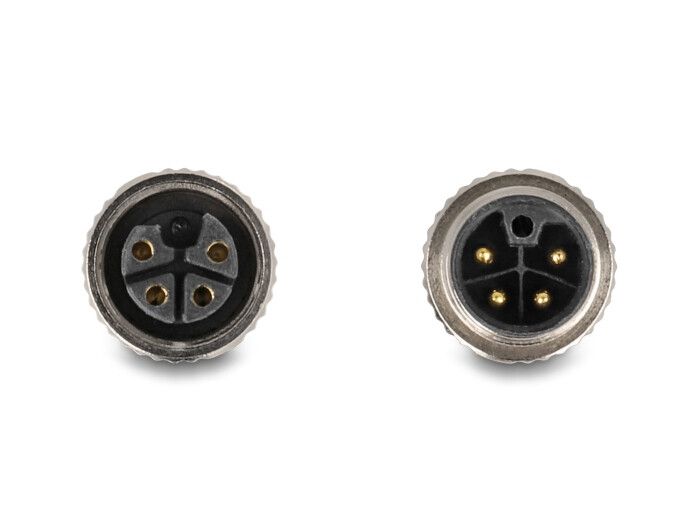

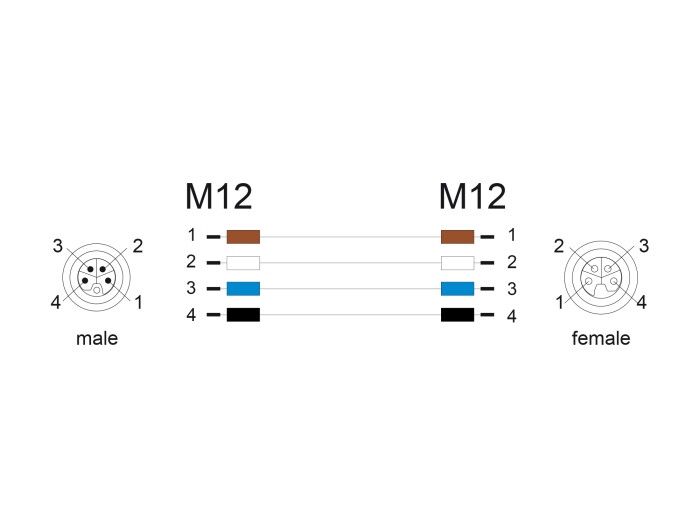

- Connector 1: M12 male, right angled, 4 pin, L-coded
- Connector 2: M12 female, straight, 4 pin, L-coded
- Rated current / voltage: 12 A / 63 V
- Wire gauge: 16 AWG (1.5 mm²), copper
- Cable diameter: 7.2 mm
- Jacket: polyurethane (PUR), oil-resistant
- Cable length: 2 m
- Operating temperature: -40 to 80 °C
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 80529 |
| Ean | 4043619805297 |
| Taric Code | 84718000 |
| Product title | DeLOCK 80529 sensor/actuator cable 2 m RST M12 Black |
| Long Product Name | 1 x M12 male 4 pin L-coded right angled, 1 x M12 female 4 pinL-coded straight, 16 AWG (1.5 mm²), 12 A / 63 V, Ø 7.2mm, 2m |
| Product specifications | FeaturesCable length* 2 m Cable type* RST Connector 1* M12 Connector 2* M12 Connector gender* Male/Female Cable colour* Black Conductor material Copper AWG wire size 16 Jacket material Polyurethane (PUR) FeaturesRated voltage 63 V Bending radius (max) 7.2 cm Oil-resistant Yes Operational conditionsOperating temperature (T-T) -40 - 80 °C Packaging dataQuantity 1 Package type Polybag |
| Essential qualities |
|
| Cable length | 2 m |
| Cable type | RST |
| Connector 1 | M12 |
| Connector 2 | M12 |
| Connector gender | Male/Female |
| Cable colour | Black |
